        Linear actuators, aluminium, square

Item description/product images

DescriptionMaterial:Profile tube aluminium.
End caps aluminium
Spindle steel.Version:Profile tube natural tone anodised.End caps black anodised.Note:These linear actuators are used for linear movements and positioning. The slides are moved via a threaded spindle. This movement can be carried out either manually using a handwheel or via an electric drive. The slides are guided play-free on profile rails.Temperature range:0 °C to +60 °CAccessory:Stainless steel or aluminium actuator for linear actuators 85000-50.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29104 Linear actuators, aluminium, square

182 kB

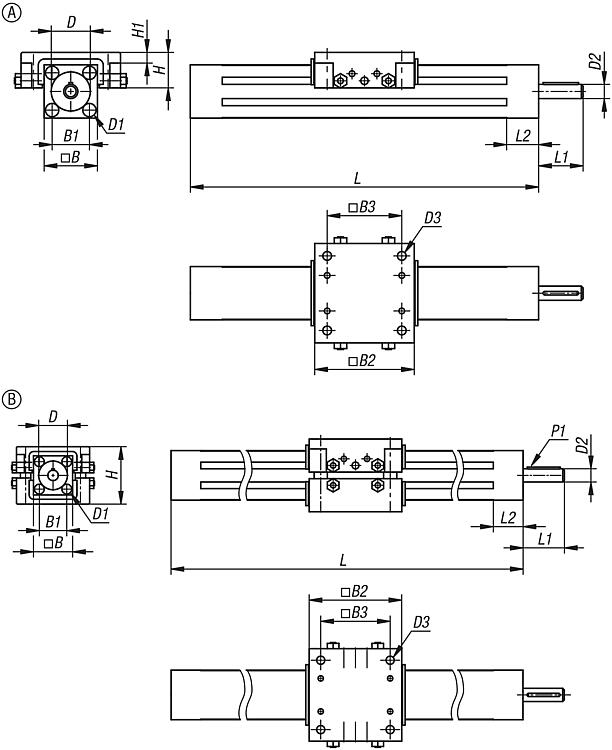

Drawings (total overview)

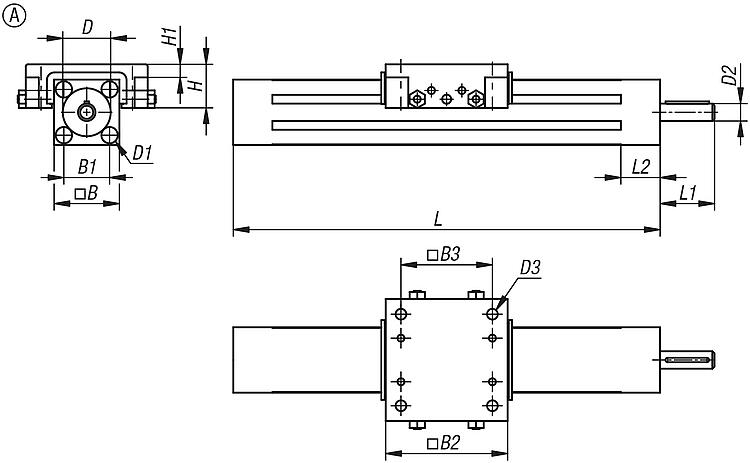

Linear actuators, aluminium, square, Form A

More information

Drawings

Linear actuators, aluminium, square, Form A

Item selection/filter

Order No.	Form	Form definition	B	B1	B2	B3	D	D1	D2	D3	H	H1	Travel S	L	L1	L2	Spindle	Typ EV
29104-030X300	A	Mounting bracket one-side	30	21	56	42	22	M04x25	8	M6	20	7	204	300	25	18	Tr 14x3	30
29104-030X500	A	Mounting bracket one-side	30	21	56	42	22	M04x25	8	M6	20	7	404	500	25	18	Tr 14x3	30
29104-030X800	A	Mounting bracket one-side	30	21	56	42	22	M04x25	8	M6	20	7	704	800	25	18	Tr 14x3	30
29104-040X1000	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	885	1000	28	22	Tr18x4	40
29104-040X300	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	185	300	28	22	Tr18x4	40
29104-040X500	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	385	500	28	22	Tr18x4	40
29104-040X800	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	685	800	28	22	Tr18x4	40
29104-050X1000	A	Mounting bracket one-side	50	38	85	67	35	M06x30	12	M8	33	10	860	1000	30	25	Tr 20x4	50
29104-050X500	A	Mounting bracket one-side	50	38	85	67	35	M06x30	12	M8	33	10	360	500	30	25	Tr 20x4	50
29104-050X800	A	Mounting bracket one-side	50	38	85	67	35	M06x30	12	M8	33	10	660	800	30	25	Tr 20x4	50

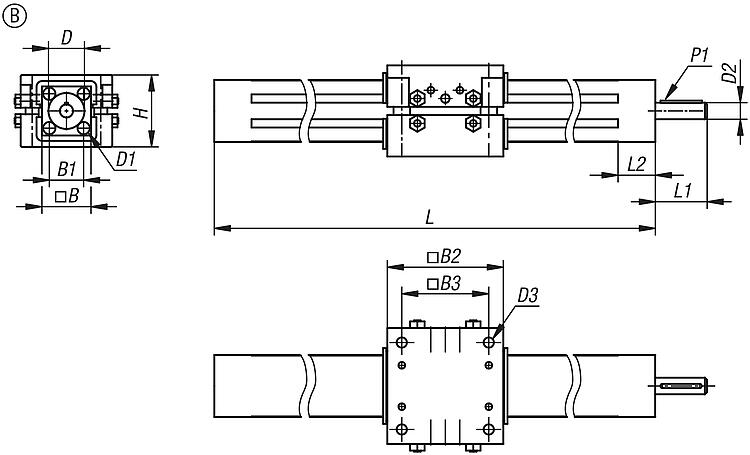

Linear actuators aluminium, square, Form B

More information

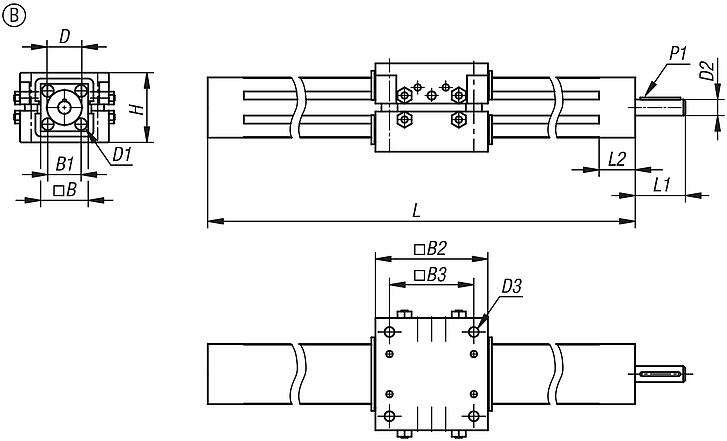

Drawings

Linear actuators aluminium, square, Form B

Item selection/filter

Order No.	Form	Form definition	B	B1	B2	B3	D	D1	D2	D3	H	H1	Travel S	L	L1	L2	Spindle	Typ EV
29104-130X300	B	Mounting bracket both sides	30	21	56	42	22	M04x25	8	M6	44	7	204	300	25	18	Tr 14x3	30
29104-130X500	B	Mounting bracket both sides	30	21	56	42	22	M04x25	8	M6	44	7	404	500	25	18	Tr 14x3	30
29104-130X800	B	Mounting bracket both sides	30	21	56	42	22	M04x25	8	M6	44	7	704	800	25	18	Tr 14x3	30
29104-140X1000	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	885	1000	28	22	Tr18x4	40
29104-140X300	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	185	300	28	22	Tr18x4	40
29104-140X500	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	385	500	28	22	Tr18x4	40
29104-140X800	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	685	800	28	22	Tr18x4	40
29104-150X1000	B	Mounting bracket both sides	50	38	85	67	35	M06x30	12	M8	70	10	860	1000	30	25	Tr 20x4	50
29104-150X500	B	Mounting bracket both sides	50	38	85	67	35	M06x30	12	M8	70	10	360	500	30	25	Tr 20x4	50
29104-150X800	B	Mounting bracket both sides	50	38	85	67	35	M06x30	12	M8	70	10	660	800	30	25	Tr 20x4	50
