21904-05Position indicators with stainless steel hollow shaft |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing polyamide 6.
Hollow shaft stainless steel.
Sight glass plastic.
Grub screw stainless steel.Version:Housing impact-resistant.
Hollow shaft and grub screw bright.
Dial black, digits white.Note:Position indicators enable the direct reading of set values at a glance.
The value indicated per spindle rotation (corresponding spindle pitch) can be selected and the various indicator values are realised by a transmission gear.
The position indicators are distinguished by their very clear display and fine scale. They have a torque support that is inserted into a hole on the opposite side.Technical data:– Counter consisting of 5 10-position dials + fine scale
– Height of figures about 7 mm
– Hollow shaft Ø 20 H7 mm
– Temperature resistant to 80 °C
– Oil and solvent resistant
– Dust-proofOn request:– Counter cover made of mineral glass
– Axial sealing (dust-proof)
– Waterproof
– Vibration protection DownloadHere is all the information as a PDF datasheet:

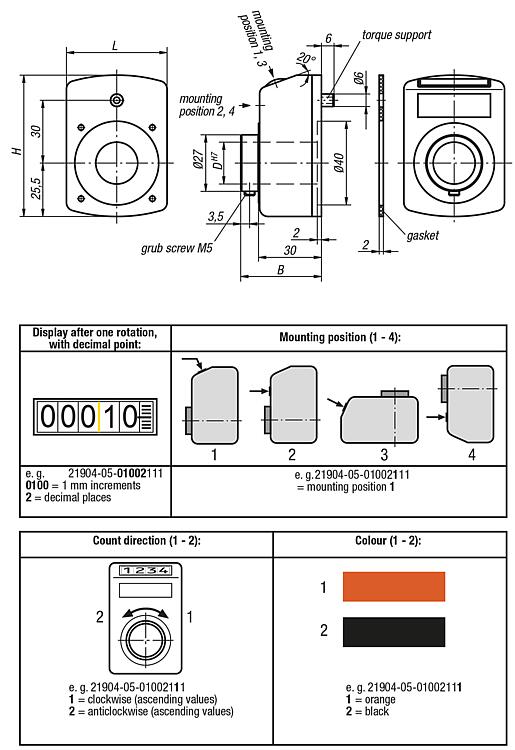

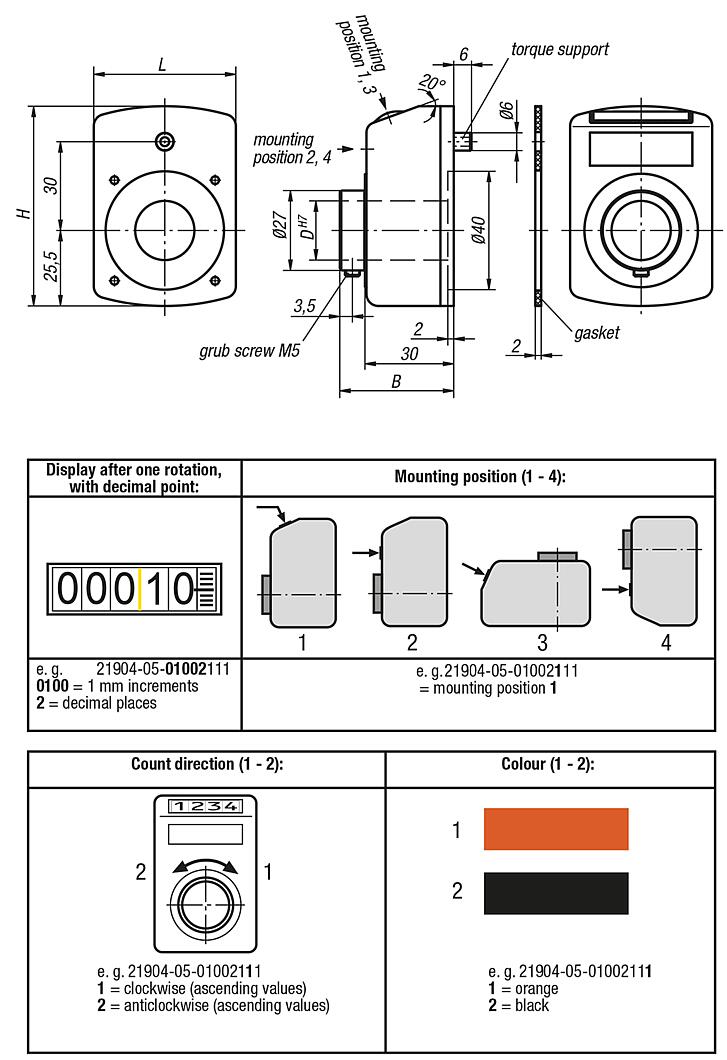

Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
orange RAL 2004 | Order No.
black | B | D | H | L | Pitch | Indicator
after one
rotation | Decimal
point in
position | max.
rpm
| Filter |
|---|
| 21904-05-01001**1 | 21904-05-01001**2 | 38,5 | 20 | 67,5 | 48 | 1 | 0001,0 | 1 | 500 |  | | 21904-05-01002**1 | 21904-05-01002**2 | 38,5 | 20 | 67,5 | 48 | 1 | 000,10 | 2 | 500 | | | 21904-05-01501**1 | 21904-05-01501**2 | 38,5 | 20 | 67,5 | 48 | 1,5 | 0001,5 | 1 | 500 | | | 21904-05-02001**1 | 21904-05-02001**2 | 38,5 | 20 | 67,5 | 48 | 2 | 0002,0 | 1 | 500 | | | 21904-05-02501**1 | 21904-05-02501**2 | 38,5 | 20 | 67,5 | 48 | 2,5 | 0002,5 | 1 | 500 | | | 21904-05-03001**1 | 21904-05-03001**2 | 38,5 | 20 | 67,5 | 48 | 3 | 0003,0 | 1 | 500 | | | 21904-05-04001**1 | 21904-05-04001**2 | 38,5 | 20 | 67,5 | 48 | 4 | 0004,0 | 1 | 375 | | | 21904-05-05001**1 | 21904-05-05001**2 | 38,5 | 20 | 67,5 | 48 | 5 | 0005,0 | 1 | 300 | | | 21904-05-06001**1 | 21904-05-06001**2 | 38,5 | 20 | 67,5 | 48 | 6 | 0006,0 | 1 | 250 | | | 21904-05-10001**1 | 21904-05-10001**2 | 38,5 | 20 | 67,5 | 48 | 10 | 0010,0 | 1 | 150 | |
