        Linear scales self-adhesive or with screw holes, aluminium

Item description/product images

DescriptionMaterial:Aluminium.Version:Scale surface ground and black anodisedNote:Rigid, heavy-duty design aluminium linear scales.
Cross section 30 x 6 mm.

Black anodised surface and high contrast graduations for legibility without shading.
The graduations are deep lasered.On request:– Zero mark right or centre
– Graduations top or both sides

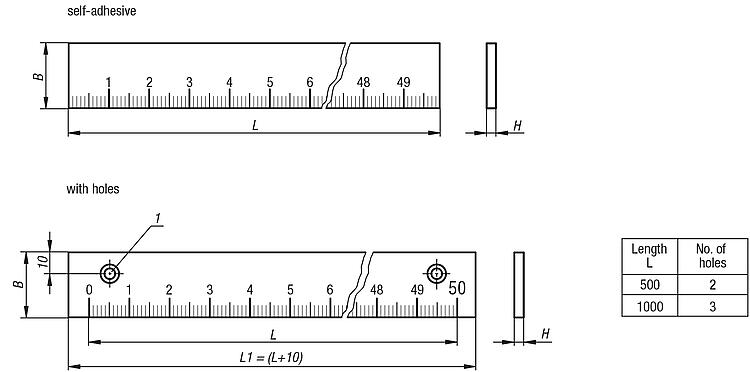

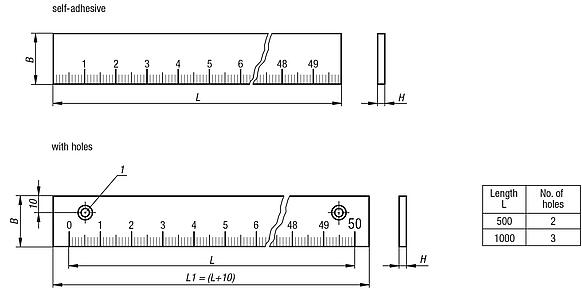

– Other lengthsDrawing reference:

1) counterbore to DIN 74-B f 5

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21884 Linear scalesself-adhesive or with screw holes, aluminium

185 kB

Drawings

Item selection/filter

Order No.	Kind of fastening	Version 1	Zero point	Division	Graduations	B	H	L	L1
21884-000010X0500	self adhesive	horizontal	left	1 mm	bottom	30	6	500	500
21884-000010X1000	self adhesive	horizontal	left	1 mm	bottom	30	6	1000	1000
21884-100010X0500	fastening holes	horizontal	left	1 mm	bottom	30	6	500	510
21884-100010X1000	fastening holes	horizontal	left	1 mm	bottom	30	6	1000	1010
