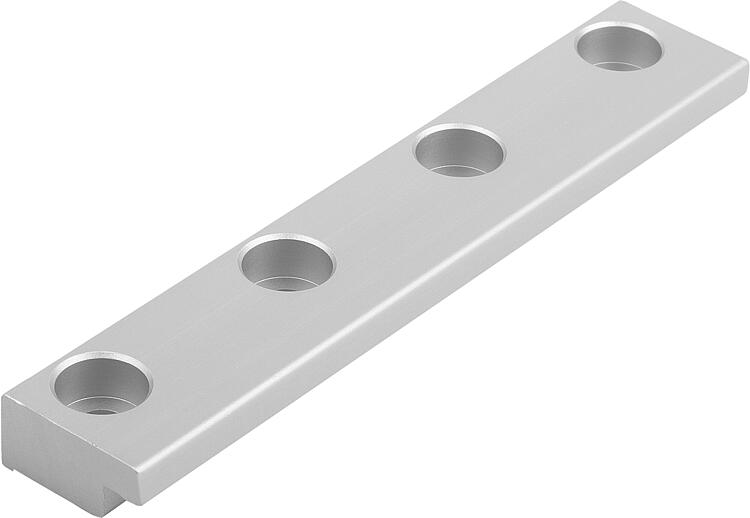

20331-20_CClamping rails for linear actuator with ball screw drive, Form... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Aluminium.Version:Bright.Note:The clamping rails are used to clamp the linear actuators with ball screw drive. The clamping rails can be inserted laterally into the profile slots of the linear actuator.Assembly:Recommended number of clamping rails:
Form A: 6 per metre on each side.
Form B: 3 per metre on each side
Form C: 3 per metre on each sideSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

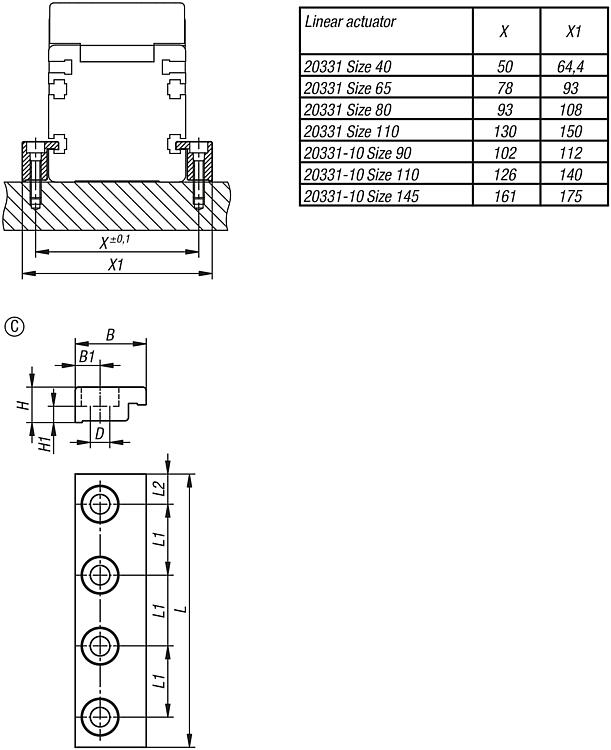

| Order No. | Form | Form definition | B
| B1 | D
for screw
DIN 912 | H | H1 | L | L1 | L2 | Suitable for
| CAD | Acc. | Price | Order |
|---|
| 20331-20-307704 | C | long | 15 | 5 | M4 | 9 | 4,5 | 77 | 20 | 8,5 | 20331-10 Größe 90 |  | | 0.00 € | | | 20331-20-308704 | C | long | 15 | 5 | M4 | 9 | 4,5 | 87 | 25 | 6 | 20331-10 Größe 90 | | | 0.00 € | | | 20331-20-310704 | C | long | 15 | 5 | M4 | 9 | 4,5 | 107 | 30 | 8,5 | 20331-10 Größe 90 | | | 0.00 € | | | 20331-20-307705 | C | long | 20 | 7 | M5 | 10 | 4,5 | 77 | 20 | 8,5 | 20331-10 Größe 110/145 | | | 0.00 € | | | 20331-20-310705 | C | long | 20 | 7 | M5 | 10 | 4,5 | 107 | 30 | 8,5 | 20331-10 Größe 110/145 | | | 0.00 € | | | 20331-20-314206 | C | long | 20 | 7 | M6 | 10 | 3,4 | 142 | 40 | 11 | 20331-10 Größe 110/145 | | | 0.00 € | |
