Clamping rails for linear actuator with ball screw drive

20331-20

Clamping rails for linear actuator with ball screw drive

Products
- Product overview
  - Systems and components for machine and plant construction
    - Linear modules Lifting units Rotary modules Grip modules
      - Linear actuators with ball screw drive
        Clamping rails for linear actuator with ball screw drive

Item description/product images

Show/filter all items

DescriptionMaterial:Aluminium.Version:Bright.Note:The clamping rails are used to clamp the linear actuators with ball screw drive. The clamping rails can be inserted laterally into the profile slots of the linear actuator.Assembly:Recommended number of clamping rails:
Form A: 6 per metre on each side.
Form B: 3 per metre on each side
Form C: 3 per metre on each sideSpecial features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 20331-20 Clamping rails for linear actuator with ball screw drive

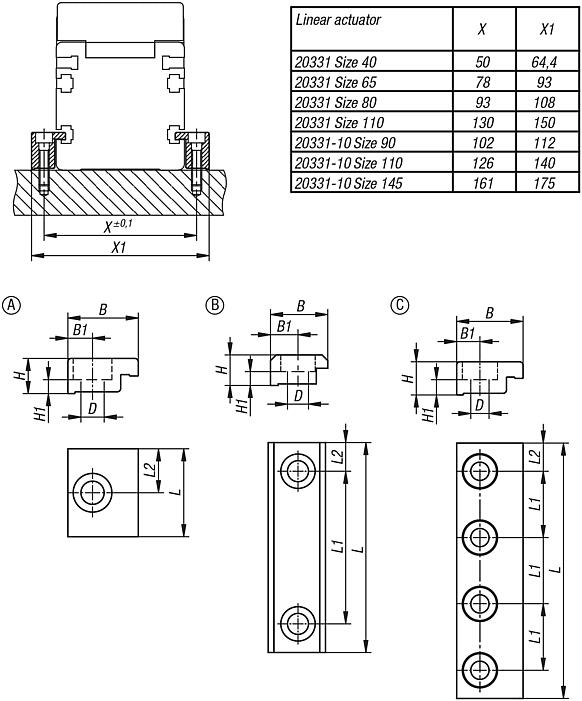

Drawings (total overview)

Clamping rails for linear actuator with ball screw drive

Clamping rails for linear actuator with ball screw drive, Form A, short

More information

Drawings

Clamping rails for linear actuator with ball screw drive, Form A, short

Item selection/filter

Order No.	Form	Form definition	B	B1	D for screw DIN 912	H	H1	L	L2	Suitable for	CAD	Acc.	Price	Order
20331-20-102504	A	short	15	5	M4	9	4,5	25	12,5	20331-10 Größe 90			0.00 €
20331-20-102506	A	short	20	7	M6	10	3,4	25	12,5	20331-10 Größe 110/145			0.00 €

Clamping rails for linear actuator with ball screw drive, Form B, long

More information

Drawings

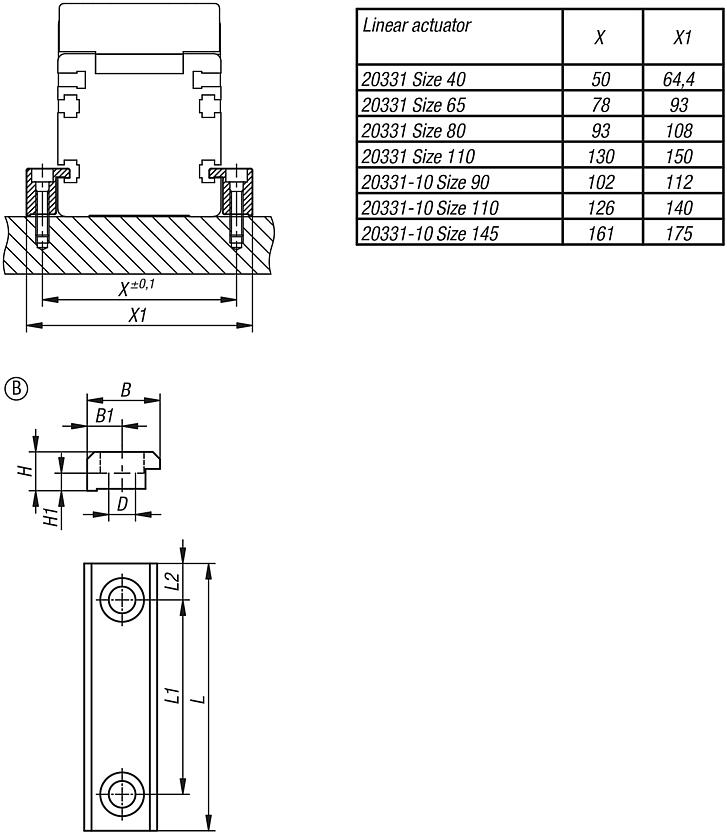

Clamping rails for linear actuator with ball screw drive, Form B, long

Item selection/filter

Order No.	Form	Form definition	B	B1	D for screw DIN 912	H	H1	L	L1	L2	Suitable for	CAD	Acc.	Price	Order
20331-20-205505	B	standard	15	7,2	M5	8	2,5	55	40	7,5	20331 Größe 40			0.00 €
20331-20-206006	B	standard	20	7,5	M6	20	11,5	60	40	10	20331 Größe 65/80			0.00 €
20331-20-206008	B	standard	30	10	M8	27	18	60	40	10	20331 Größe 110			0.00 €
20331-20-206204	B	standard	15	5	M4	9	4,5	62	40	11	20331-10 Größe 90			0.00 €
20331-20-206206	B	standard	20	7	M6	10	3,4	62	40	11	20331-10 Größe 110/145			0.00 €

Clamping rails for linear actuator with ball screw drive, Form C, long

More information

Drawings

Clamping rails for linear actuator with ball screw drive, Form C, long

Item selection/filter

Order No.	Form	Form definition	B	B1	D for screw DIN 912	H	H1	L	L1	L2	Suitable for	CAD	Acc.	Price	Order
20331-20-307704	C	long	15	5	M4	9	4,5	77	20	8,5	20331-10 Größe 90			0.00 €
20331-20-308704	C	long	15	5	M4	9	4,5	87	25	6	20331-10 Größe 90			0.00 €
20331-20-310704	C	long	15	5	M4	9	4,5	107	30	8,5	20331-10 Größe 90			0.00 €
20331-20-307705	C	long	20	7	M5	10	4,5	77	20	8,5	20331-10 Größe 110/145			0.00 €
20331-20-310705	C	long	20	7	M5	10	4,5	107	30	8,5	20331-10 Größe 110/145			0.00 €
20331-20-314206	C	long	20	7	M6	10	3,4	142	40	11	20331-10 Größe 110/145			0.00 €

Other items in this category

20331

Linear actuator with ball screw drive
and profile guide rail

20331-10

Linear actuator axle with ball screw drive
and two profile guide rails
