Ball transfer units with steel housing
 95150

Ball transfer units with steel housing

 go back

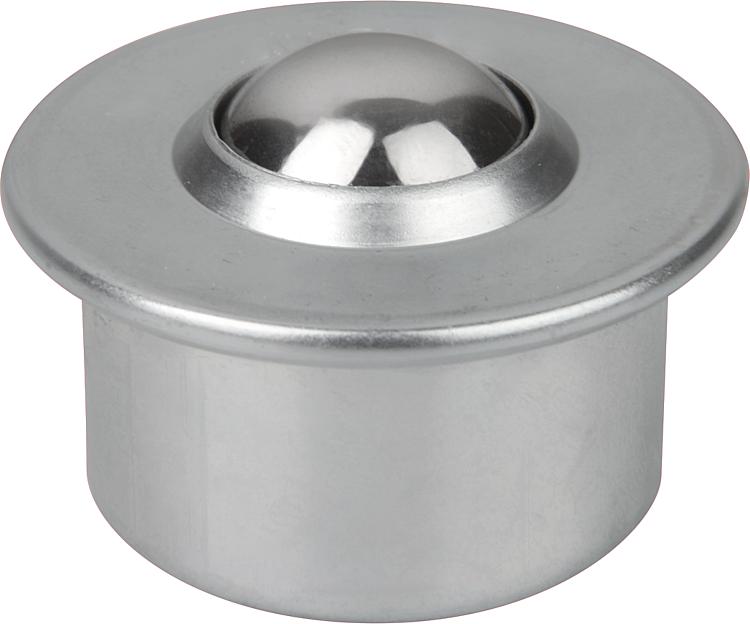

Item description/product images

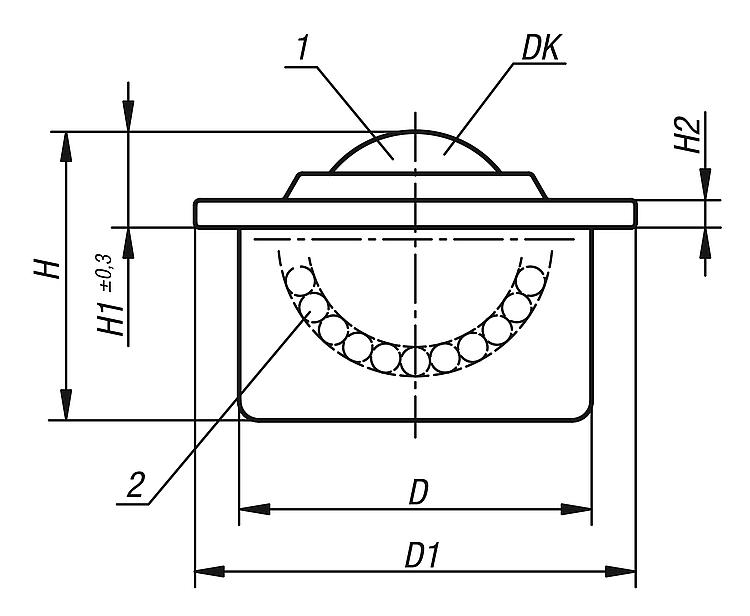

DescriptionMaterial:Electro zinc-plated steel or stainless steel.Note:95150-115 has no felt seal.Drawing reference:
1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, balls steel
Form C: cap and housing electro zinc-plated, balls stainless steel
Form D: cap, housing and balls stainless steel
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 95150 Ball transfer units with steel housing 253 kB
Mounting instructions and specifications for ball transfer units 62 kB

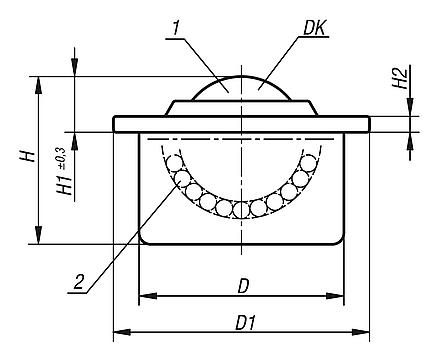

Drawings

Ball transfer units with steel housing

Item selection/filter
Order No.Material
Material
DKDD1HH1H2Load
rating C
(N)		Suitable
tolerance
ring		CADAcc.PriceOrder
95150-115steelsteel15,824±0,231219,52,860095164-024 0.00 €
95150-122steelsteel22,236±0,245309,82,8160095164-036 0.00 €
95150-130steelsteel3045±0,2553713,84300095164-045 0.00 €
95150-145steelsteel44,562±0,27553,5194610095164-062 0.00 €
95150-215Stainless steelStainless steel15,824±0,231219,52,860095164-024 0.00 €
95150-222Stainless steelStainless steel22,236±0,245309,82,8160095164-036 0.00 €
95150-230Stainless steelStainless steel3045±0,2553713,84300095164-045 0.00 €
95150-245Stainless steelStainless steel44,562±0,27553,5194610095164-062 0.00 €
95150-315Stainless steelStainless steel15,824±0,231219,52,838095164-024 0.00 €
95150-322Stainless steelStainless steel22,236±0,245309,82,8100095164-036 0.00 €
95150-330Stainless steelStainless steel3045±0,2553713,84200095164-045 0.00 €
