07130Torque screws with thrust point |
go back | |
Item description/product images |
 |
DescriptionMaterial:Steel.Version:Black oxidised.Note:The torque required for the knurled screw is generated by two spring-mounted thrust balls. As soon as the adjustable final pressure is reached, the grip runs free. The final pressure is set using the set screws located in the head.Special features:  DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

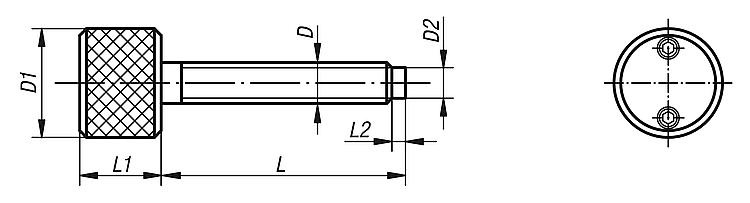

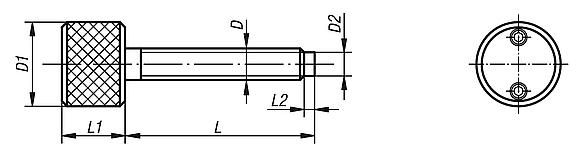

Drawings |
 |
Overview of items (compressed) |
Item selection/filter |
| Order No. | D | D1 | D2 | L | L1 | L2 | F1 N | F2 N | Filter |
|---|---|---|---|---|---|---|---|---|---|
| 07130-06X | M6 | 25 | 4,7 | 40/60 | 20 | 3 | 40 | 800 |  |
| 07130-08X | M8 | 25 | 6,5 | 40/60/80 | 20 | 3 | 40 | 650 | |
| 07130-10X | M10 | 25 | 8,2 | 40/60/80 | 20 | 3 | 40 | 550 | |
| 07130-12X | M12 | 25 | 10 | 40/60/80/100 | 20 | 3 | 40 | 450 | |
