Tubular handles, stainless steel with aluminium tube holders

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Tubular handles, stainless steel with aluminium tube holders

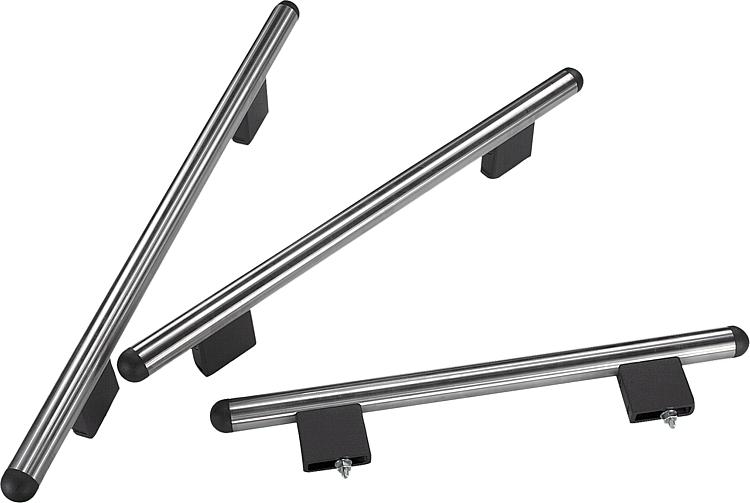

Item description/product images

DescriptionMaterial:

Grip stainless steel 1.4301.
Legs die-cast aluminium.
End caps glass-bead reinforced plastic.
Screws and locking pins steel.

Version:Grip finely ground.
Legs black powder-coated.
End cap black.
Screws and pins trivalent passivated.Note:Heavy duty tubular pull handles for machine and plant construction. Easy mounting from the front. Adjustable leg spacing by the same grip length.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06941 Tubular handles, stainless steel with aluminium tube holders

153 kB

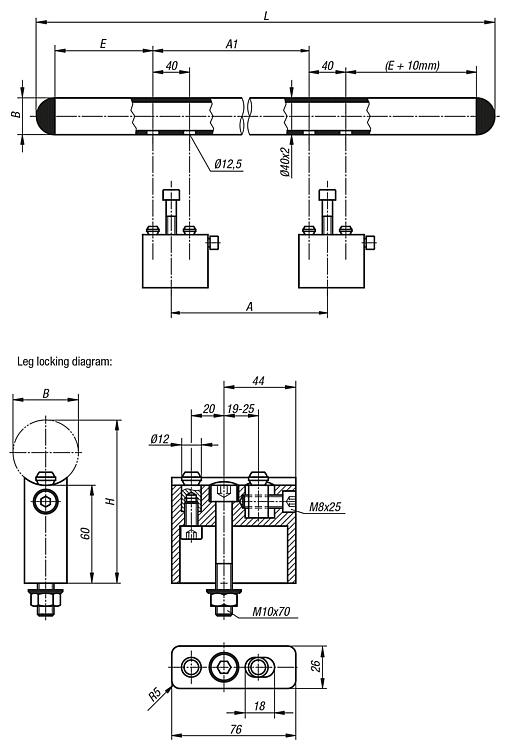

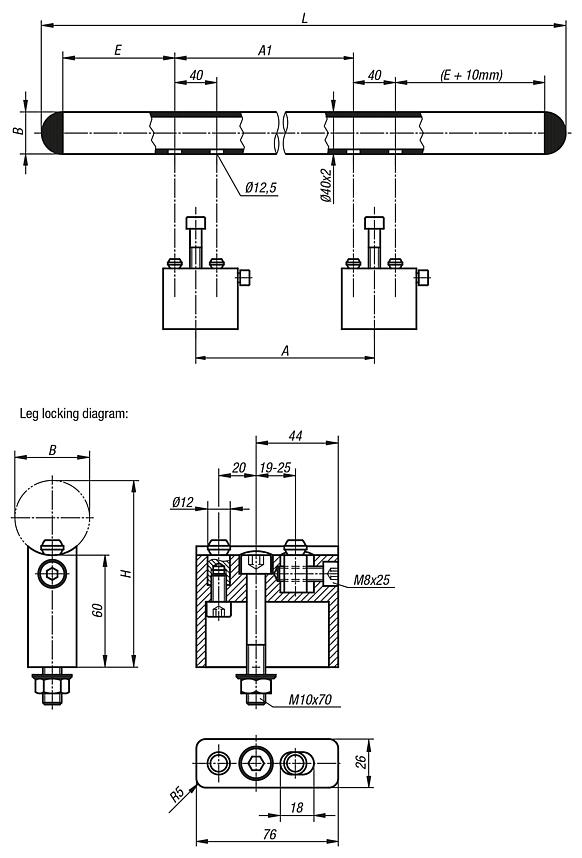

Drawings

Item selection/filter

Order No.	A	A1	B	E	H	L	Load capacity N
06941-0600101	380	380	40	85	100	640	1000
06941-0700101	480	480	40	85	100	740	1000
06941-0800101	500	500	40	125	100	840	1000
06941-0900101	600	600	40	125	100	940	1000
06941-1000101	700	700	40	125	100	1040	1000
