        Slam latches

Item description/product images

Show/filter all items

DescriptionMaterial:Die cast aluminium.
End caps plastic.Version:Black or alu-tone powder coated.
Cover caps black or alu-tone.Note:For the simple and safe locking of doors and hatches. Installed from the front without mechanical processing using M6 cylinder-head or cheese-head screws. Secured to prevent removal when locked.

The key-operated version is supplied with 2 keys. The key can be removed in both positions (open and closed). The locks are keyed alike, i.e. they can all be opened using the same key (euro key 5333).

The double-lug version is supplied with a double lug key.Drawing reference:

Actuation:
a) single-key system
b) square 8 mm
c) double lug 5 mm

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

05598_Datasheet_32555_Slam_latches--en

242 kB

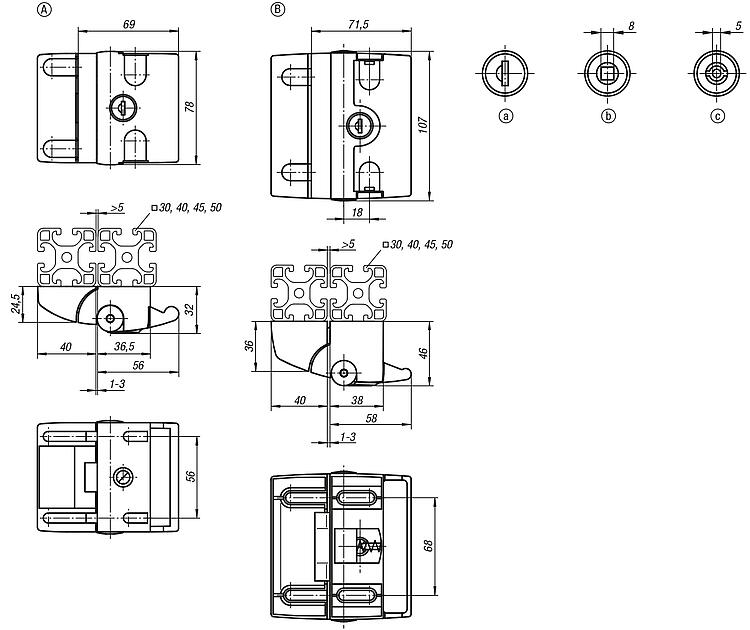

Drawings (total overview)

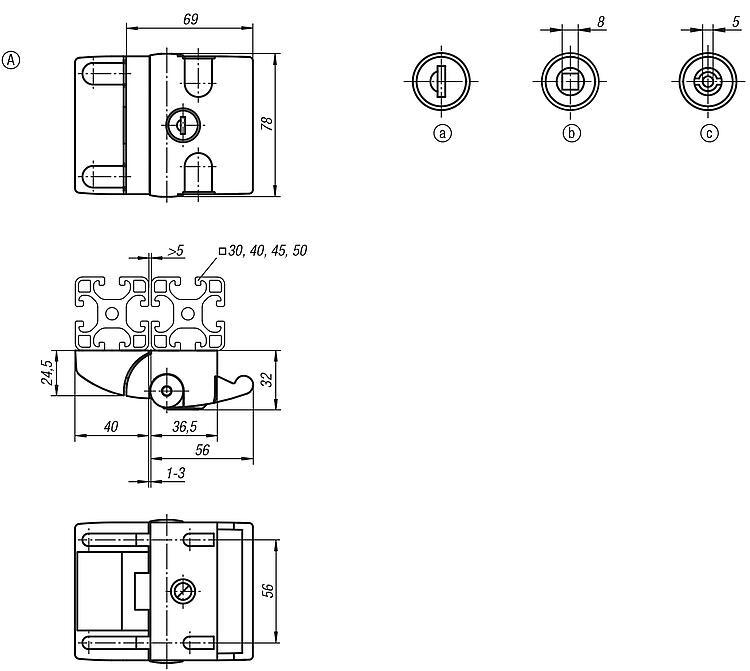

Slam latches, Form A

More information

Drawings

Item selection/filter

Order No.	Main colour	Form	Slot width	Actuation
05598-100562	aluminium tone	A	8/10	not lockable
05598-170562	aluminium tone	A	8/10	key
05598-100561	black	A	8/10	not lockable
05598-170561	black	A	8/10	key
05598-118561	black	A	8/10	square 8 mm
05598-145561	black	A	8/10	double lug 5 mm
