Catch plates for latches with draw bail for up to 300N
 05531

Catch plates for latches with draw bail for up to 300N

 go back

Item description/product images
DescriptionMaterial:

Steel or stainless steel 1.4301.

Version:Electro zinc-plated, thick-film passivated and sealed with Top Coat.
Stainless steel bright.Accessory:Latch 05531.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 05531 Catch plates, for latches with draw bail 117 kB

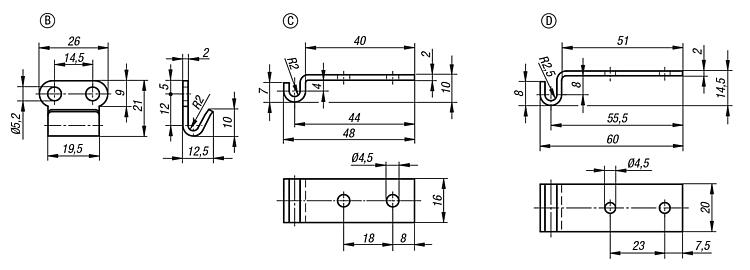

Drawings (total overview)

Catch plates for latches with draw bail for up to 300N

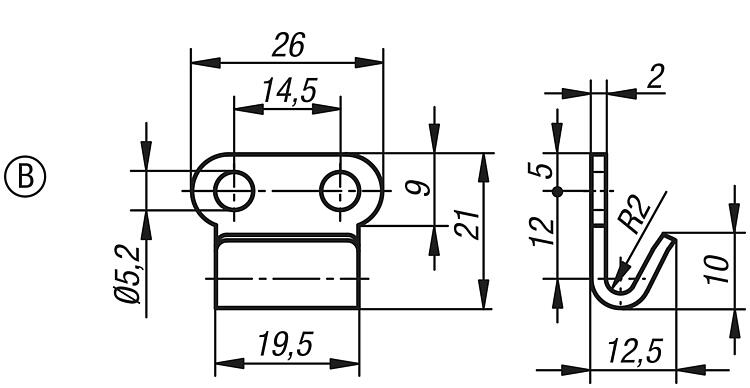

Catch plates Form B, for latches with draw bail, short version

 More information

Drawings
Catch plates Form B, for latches with draw bail, short version

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05531-92520211steelB 0.00 €
05531-92520212stainless steelB 0.00 €

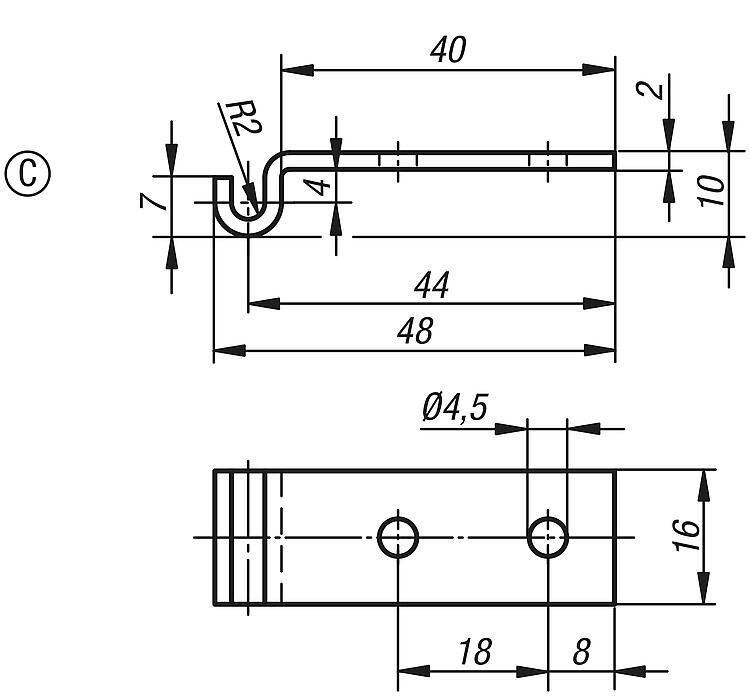

Catch plates Form C, for latches with draw bail, short version

 More information

Drawings
Catch plates Form C, for latches with draw bail, short version

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05531-93450481steelC 0.00 €
05531-93450482stainless steelC 0.00 €

Catch plates Form D, for latches with draw bail, short version

 More information

Drawings
Catch plates Form D, for latches with draw bail, short version

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05531-94450601steelD 0.00 €
05531-94450602stainless steelD 0.00 €
