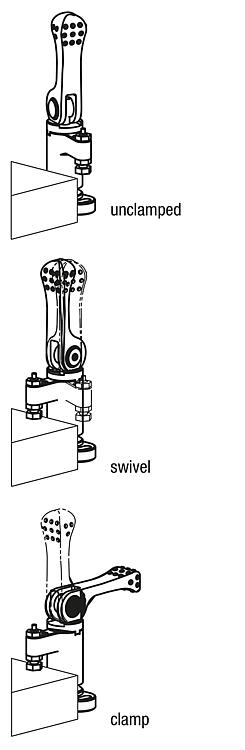

DescriptionMaterial:Carbon steel.Version:hardened and tempered and black oxidised or nickel-plated.Note:Swing clamps are used where the clamping points must be free when the workpiece is loaded or removed.

* Admissible hand force for the handle.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 04363_Datasheet_32084_Swing_clamps_mini_with_cam_lever_--en 209 kB

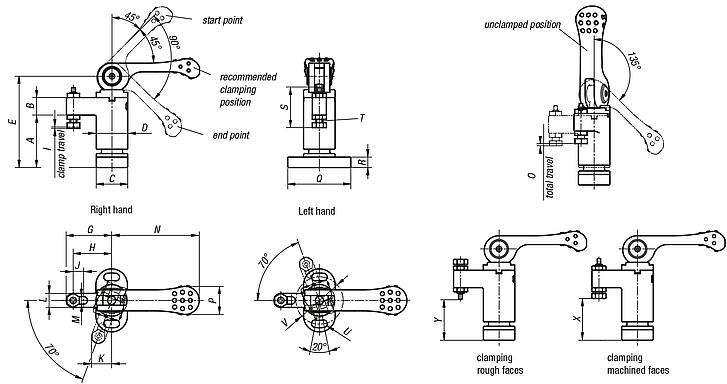

Drawings

Swing clamps, mini, with cam lever

Overview of items (compressed)

Item selection/filter
Order No.Version 1Surface finish
body
ABCD

EGHIJKLMNOPQRCADAcc.PriceOrder
04363-0100leftblack oxidised301018185226220,8611,584,3501,216366 124.34 €
04363-01001leftnickel-plated301018185226220,8611,584,3501,216366 133.72 €
04363-0150leftblack oxidised401423236835301815,3105,3631,519458 143.73 €
04363-01501leftnickel-plated401423236835301815,3105,3631,519458 158.19 €
04363-0200leftblack oxidised501830308745371,2820,7168,4801,8246512 183.08 €
04363-02001leftnickel-plated501830308745371,2820,7168,4801,8246512 205.39 €
04363-0300leftblack oxidised6022404010755451,5825,42010,41002,3308515 235.28 €
04363-03001leftnickel-plated6022404010755451,5825,42010,41002,3308515 253.46 €
04363-1100rightblack oxidised301018185226220,8611,584,3501,216366 124.34 €
04363-11001rightnickel-plated301018185226220,8611,584,3501,216366 133.72 €
04363-1150rightblack oxidised401423236835301815,3105,3631,519458 143.73 €
04363-11501rightnickel-plated401423236835301815,3105,3631,519458 158.19 €
04363-1200rightblack oxidised501830308745371,2820,7168,4801,8246512 183.08 €
04363-12001rightnickel-plated501830308745371,2820,7168,4801,8246512 205.39 €
04363-1300rightblack oxidised6022404010755451,5825,42010,41002,3308515 235.28 €
04363-13001rightnickel-plated6022404010755451,5825,42010,41002,3308515 253.46 €
Order No.

Version 1Surface finish
body
STUVX
min.
X
max.
Y
min.
Y
max.
F
N
Hand
force
FH N
CADAcc.PriceOrder
04363-0100leftblack oxidised22,8M44,32722,425,22224,8800100* 124.34 €
04363-01001leftnickel-plated22,8M44,32722,425,22224,8800100 133.72 €
04363-0150leftblack oxidised28,5M55,33430,833,831,734,71500150* 143.73 €
04363-01501leftnickel-plated28,5M55,33430,833,831,734,71500150 158.19 €
04363-0200leftblack oxidised45,5M88,44831,939,632,940,62100200* 183.08 €
04363-02001leftnickel-plated45,5M88,44831,939,632,940,62100200 205.39 €
04363-0300leftblack oxidised57M1010,56435,746,738,249,22800300* 235.28 €
04363-03001leftnickel-plated57M1010,56435,746,738,249,22800300 253.46 €
04363-1100rightblack oxidised22,8M44,32722,425,22224,8800100* 124.34 €
04363-11001rightnickel-plated22,8M44,32722,425,22224,8800100 133.72 €
04363-1150rightblack oxidised28,5M55,33430,833,831,734,71500150* 143.73 €
04363-11501rightnickel-plated28,5M55,33430,833,831,734,71500150 158.19 €
04363-1200rightblack oxidised45,5M88,44831,939,632,940,62100200* 183.08 €
04363-12001rightnickel-plated45,5M88,44831,939,632,940,62100200 205.39 €
04363-1300rightblack oxidised57M1010,56435,746,738,249,22800300* 235.28 €
04363-13001rightnickel-plated57M1010,56435,746,738,249,22800300 253.46 €
