DescriptionMaterial:Carbon steel.
Grip plastic.
Version:hardened and tempered and black oxidised or nickel-plated.Note:Swing clamps are used where the clamping points must be free when the workpiece is loaded or removed.

* Admissible hand force for the handle.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 04364_Datasheet_32082_Swing_clamps_mini--en 270 kB

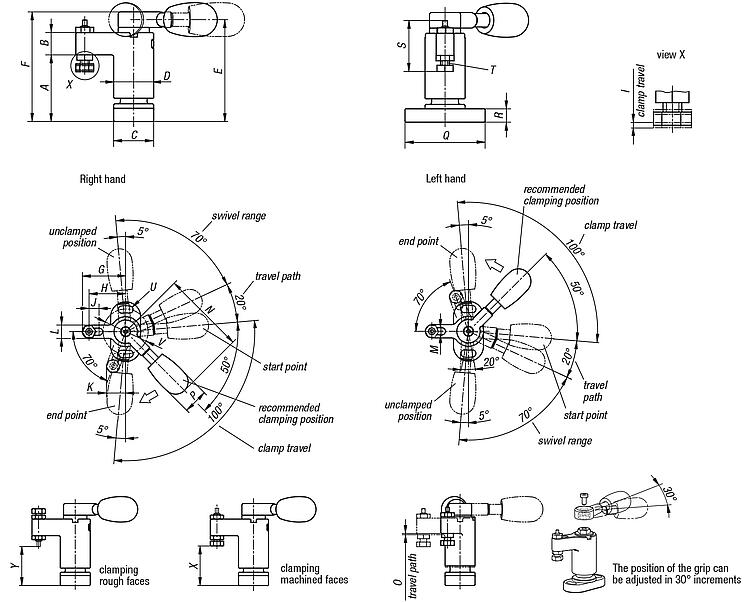

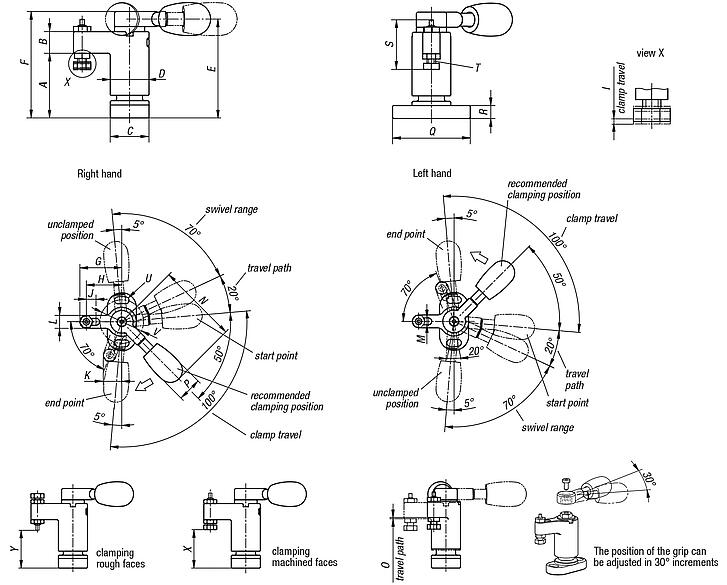

Drawings

Swing clamps mini

Overview of items (compressed)

Item selection/filter
Order No.Version 1Surface finish
body
ABCD

EGHIJKLMNOPQRCADAcc.PriceOrder
04364-0100leftblack oxidised3010181845,826221611,584,3500,815366 124.34 €
04364-01001leftnickel-plated3010181845,826221611,584,3500,815366 133.72 €
04364-0150leftblack oxidised4014232361,335301,4815,3105,3631,120458 143.73 €
04364-01501leftnickel-plated4014232361,335301,4815,3105,3631,120458 158.19 €
04364-0200leftblack oxidised5018303076,545371,5820,7168,4801,4266512 183.08 €
04364-02001leftnickel-plated5018303076,545371,5820,7168,4801,4266512 205.39 €
04364-0300leftblack oxidised602240409355451,9825,42010,41001,7338515 235.28 €
04364-03001leftnickel-plated602240409355451,9825,42010,41001,7338515 253.46 €
04364-1100rightblack oxidised3010181845,826221611,584,3500,815366 124.34 €
04364-11001rightnickel-plated3010181845,826221611,584,3500,815366 133.72 €
04364-1150rightblack oxidised4014232361,335301,4815,3105,3631,120458 143.73 €
04364-11501rightnickel-plated4014232361,335301,4815,3105,3631,120458 158.19 €
04364-1200rightblack oxidised5018303076,545371,5820,7168,4801,4266512 183.08 €
04364-12001rightnickel-plated5018303076,545371,5820,7168,4801,4266512 205.39 €
04364-1300rightblack oxidised602240409355451,9825,42010,41001,7338515 235.28 €
04364-13001rightnickel-plated602240409355451,9825,42010,41001,7338515 253.46 €
Order No.

Version 1Surface finish
body
STUVX
min.
X
max.
Y
min.
Y
max.
F
N
Hand
force
FH N
CADAcc.PriceOrder
04364-0100leftblack oxidised22,8M44,32722,325,321,924,91100100* 124.34 €
04364-01001leftnickel-plated22,8M44,32722,325,321,924,91100100 133.72 €
04364-0150leftblack oxidised28,5M55,33430,63431,534,91800150* 143.73 €
04364-01501leftnickel-plated28,5M55,33430,63431,534,91800150 158.19 €
04364-0200leftblack oxidised45,5M88,44831,739,732,740,72200200* 183.08 €
04364-02001leftnickel-plated45,5M88,44831,739,732,740,72200200 205.39 €
04364-0300leftblack oxidised57M1010,56435,546,93849,43500300* 235.28 €
04364-03001leftnickel-plated57M1110,56435,546,93849,43500300 253.46 €
04364-1100rightblack oxidised22,8M44,32722,325,321,924,91100100* 124.34 €
04364-11001rightnickel-plated22,8M44,32722,325,321,924,91100100 133.72 €
04364-1150rightblack oxidised28,5M55,33430,63431,534,91800150* 143.73 €
04364-11501rightnickel-plated28,5M55,33430,63431,534,91800150 158.19 €
04364-1200rightblack oxidised45,5M88,44831,739,732,740,72200200* 183.08 €
04364-12001rightnickel-plated45,5M88,44831,739,732,740,72200200 205.39 €
04364-1300rightblack oxidised57M1010,56435,546,93849,43500300* 235.28 €
04364-13001rightnickel-plated57M1010,56435,546,93849,43500300 253.46 €
