Swing clamps, hydraulic, double / single-acting with spring return, Form A, flange top
04368-20_A

Swing clamps, hydraulic, double / single-acting with spring...

go back

Item description/product images

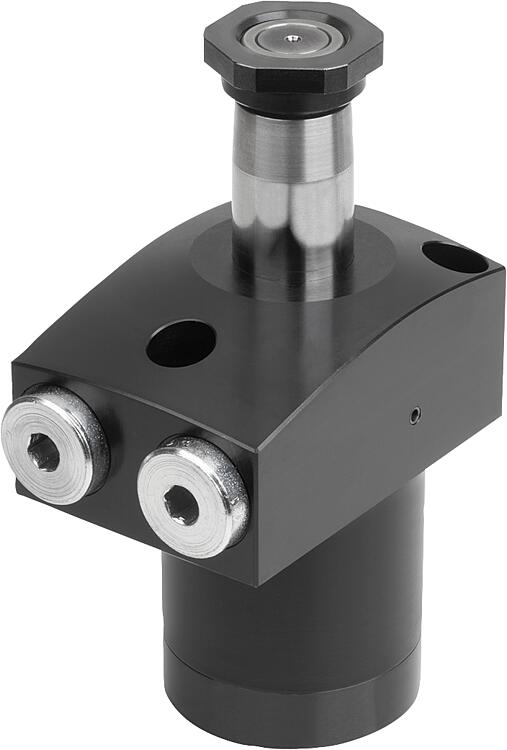

DescriptionProduct description:Swing clamps are designed for clamping fixtures where the clamping points must be clear during workpiece removal or placement. These swing clamps operate as single-acting or double-acting traction cylinders. There is a choice of three housing types for the swing clamps as well as various actuation methods. The clamping movement is initiated by a combined swivel and stroke motion. The actual clamping travel then occurs with a linear movement. A wide range of variants with a left or right swivel angle of 90° are available. The swing clamps are very durable because they have a metal wiper which protects against swarf. In addition, an overload protection protects the swing mechanism from damage if the swing process is blocked.Material:Housing and piston steel.
Seal NBR
Version:Housing black oxidised.
Piston hardened.
Note:If the permissible volume flow on the swing clamp could be exceeded, an intermediate throttle check valve must be installed.
The permissible operating pressure of the swing clamps depends on the clamping arm length.
The clamping arms must be restrained when being mounted so that the ball guide of the swing clamps is not damaged.
Depending on the vent connection, the sinter filter of the single-acting swing clamps must be replaced by a screw plug.

The clamping arm of the swing clamp is not supplied.

Follow safety instructions.
Type of operation:- Thread connection.
- O-ring flange connection.
- Drilled channels.
Technical data:Max. operating pressure: 500 bar.Assembly:See mounting contour.Advantages:- Integrated metal wiper.
- Integrated overload protection.
- Collision-free accessibility to the workpiece.
- Many types.
- Pressure supplied over diverse connection possibilities.
On request:Larger piston diameters and longer strokes, other swivel angles, various clamping arm mounts, with position control.Accessory:Clamping arm for swing clamp 04368-30.Supplied withSupplied with 1 screw or nut for mounting the clamping arm.Drawing reference:
Form A: Flange top
Form B: Flange under
Form C: Screw-on thread

1) Mounting contour
2) See accessories
3) By the single-acting cylinders, the port is equipped with a built-in sinter filter.
4) Left swivel
5) Right swivel
6) clamp
7) release or vent by single acting cylinders
Special features:
RoHS

Drawings

Swing clamps, hydraulic, double / single-acting with spring return, Form A, flange top

Item selection/filter

Order No.FormForm definitionConnection
type
Swivel
direction
Piston ØtravelB

B1B2B3
DD1D2D3D4D8GG1HH1H2CADAcc.PriceOrder
04368-20-25101404190111Adouble-actingThread and O-ring connectionght25105037283244,823,520116,645M18x1,5M6126,57857 457.70 €
04368-20-25101404190211Adouble-actingThread and O-ring connectionleft25105037283244,823,520116,645M18x1,5M6126,57857 457.70 €
04368-20-25251404190111Adouble-actingThread and O-ring connectionght25255037283244,823,520116,645M18x1,5M6158,59473 557.75 €
04368-20-25251404190211Adouble-actingThread and O-ring connectionleft25255037283244,823,520116,645M18x1,5M6158,59473 557.75 €
04368-20-40131404190111Adouble-actingThread and O-ring connectionght40136348414659,833,53215960M28x1,5M8147,59466 524.40 €
04368-20-40131404190211Adouble-actingThread and O-ring connectionleft40136348414659,833,53215960M28x1,5M8147,59466 524.40 €
04368-20-40251404190111Adouble-actingThread and O-ring connectionght40256348414659,833,53215960M28x1,5M8173,510779 592.25 €
04368-20-40251404190211Adouble-actingThread and O-ring connectionleft40256348414659,833,53215960M28x1,5M8173,510779 592.25 €
04368-20-25102404190111Asingle-actingThread and O-ring connectionght25105037283244,823,520116,645M18x1,5M6126,57857 442.75 €
04368-20-25102404190211Asingle-actingThread and O-ring connectionleft25105037283244,823,520116,645M18x1,5M6126,57857 442.75 €
04368-20-40132404190111Asingle-actingThread and O-ring connectionght40136348414659,833,53215960M28x1,5M8147,59466 509.45 €
04368-20-40132404190211Asingle-actingThread and O-ring connectionleft40136348414659,833,53215960M28x1,5M8147,59466 509.45 €
Order No.FormH3H4H5H6H7H8LL1L2L3L4L5SWFlow rate
max.
(cm³/s)
Oil requirement /
stroke
(cm³)
Oil requirement /
return stroke
(cm³)
CADAcc.PriceOrder
04368-20-25101404190111A34149188107026,520301726,5273,23,28,8 457.70 €
04368-20-25101404190211A34149188107026,520301726,5273,23,28,8 457.70 €
04368-20-25251404190111A341491810257026,520301726,5273,2617 557.75 €
04368-20-25251404190211A341491810257026,520301726,5273,2617 557.75 €
04368-20-40131404190111A401410199138534,52738243140101027,7 524.40 €
04368-20-40131404190211A401410199138534,52738243140101027,7 524.40 €
04368-20-40251404190111A4014101910258534,52738243140101644 592.25 €
04368-20-40251404190211A4014101910258534,52738243140101644 592.25 €
04368-20-25102404190111A34149188107026,520301726,5273,23,2- 442.75 €
04368-20-25102404190211A34149188107026,520301726,5273,23,2- 442.75 €
04368-20-40132404190111A401410199138534,527382431401010- 509.45 €
04368-20-40132404190211A401410199138534,527382431401010- 509.45 €
