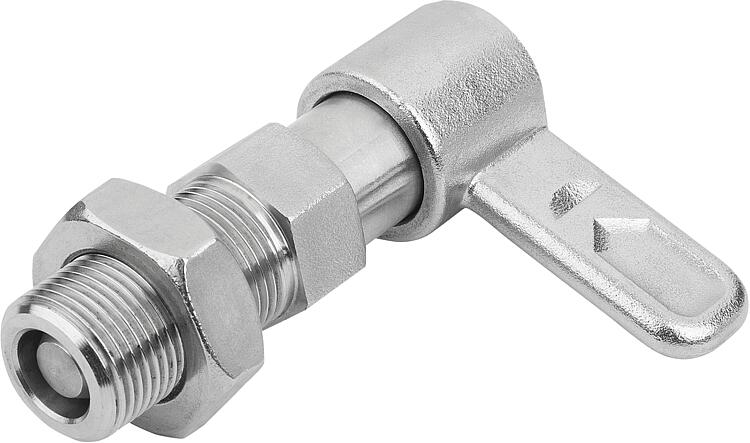

Cam-action indexing plungers, stainless steel with internal guide
03099-35

Cam-action indexing plungers, stainless steel with internal...

go back

Item description/product images

Show/filter all items
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:

Threaded sleeve and grip 1.4308.
Indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplastic PA.

Version:Threaded sleeve, spring and grip bright.
Indexing pin ground and bright.
Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Application:The closed construction of these indexing plungers with internal guide permits them to be installed in places subject to heavy soiling e.g. dust and airborn sparks.Advantages:- The indexing pin is retracted by rotating the grip through 180°.
- The closed design prevents dirt from entering the threaded sleeve.
- The hexagon on the sleeve facilitates easy installation of the indexing plunger.
On request:Special versions.Accessory:Mounting bracket 03099.
Positioning bushes 03099-50.

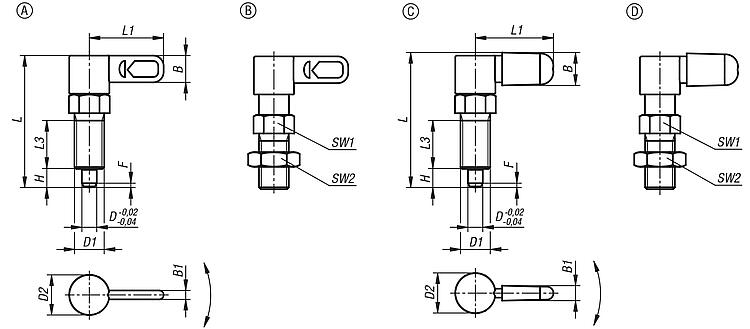

Drawing reference:
Form A: without grip cap or locknut
Form B: without grip cap, with locknut
Form C: with grip cap, without locknut
Form D: with grip cap and locknut
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 03099-35_Datasheet_32333_Cam-action_indexing_plungers_stainless_steel_with_internal_guide--en 329 kB

Drawings (total overview)

Cam-action indexing plungers, stainless steel with internal guide

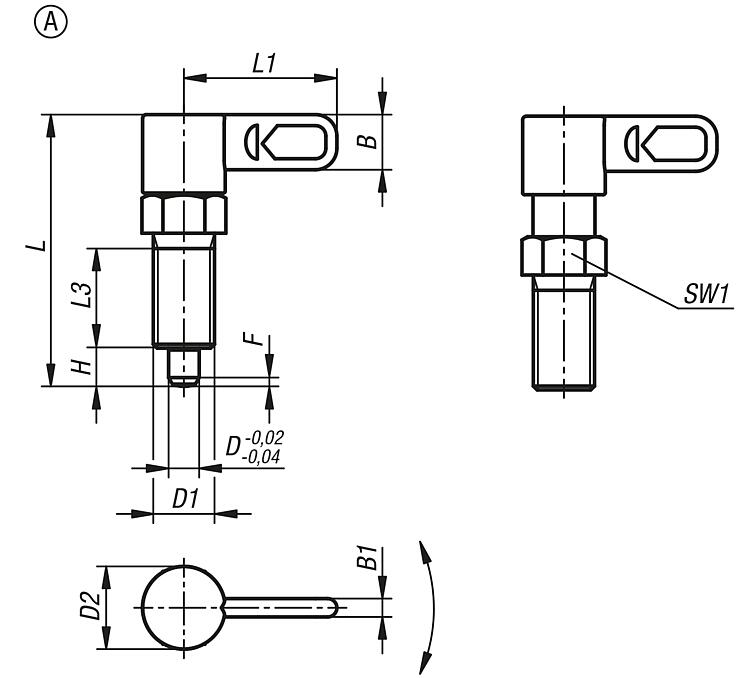

Cam-action indexing plungers, stainless steel with internal guide, Form A, without grip cap, without nut

More information

Drawings

Cam-action indexing plungers, stainless steel with internal guide, Form A, without grip cap, without nut

Item selection/filter

Order No.FormDD1D2LL1L3BB1HSW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
03099-35-10405101A5M10x11645,82515936131,3814 18.19 €
03099-35-10406121A6M12x1,517,455,4301910,23,68141,8815 19.86 €
03099-35-10408161A8M16x1,521,671402614,44,810192,31535 21.82 €
03099-35-10410201A10M20x1,524,880,5503017612222,82060 25.91 €

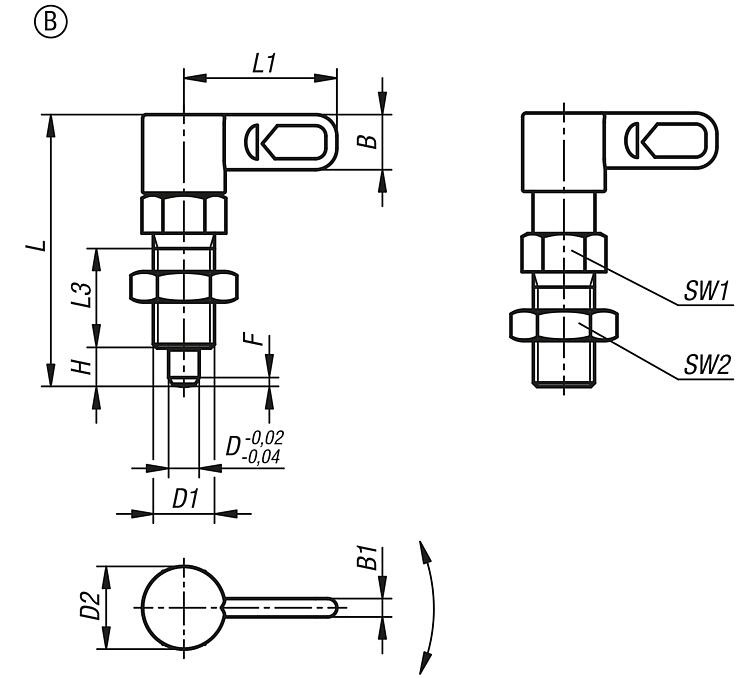

Cam-action indexing plungers, stainless steel with internal guide, Form B, without grip cap, with nut

More information

Drawings

Cam-action indexing plungers, stainless steel with internal guide, Form B, without grip cap, with nut

Item selection/filter

Order No.FormDD1D2LL1L3BB1HSW1SW2Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
03099-35-10505101B5M10x11645,8251593613171,3814 18.61 €
03099-35-10506121B6M12x1,517,455,4301910,23,6814191,8815 20.52 €
03099-35-10508161B8M16x1,521,671402614,44,81019242,31535 23.02 €
03099-35-10510201B10M20x1,524,880,550301761222302,82060 28.62 €

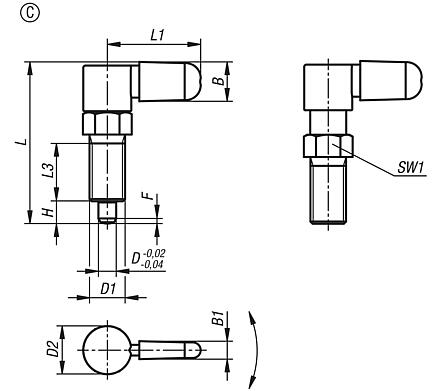

Cam-action indexing plungers, stainless steel with internal guide, Form C, with grip cap, without nut

More information

Drawings

Cam-action indexing plungers, stainless steel with internal guide, Form C, with grip cap, without nut

Item selection/filter

Order No.FormComponent
colour
DD1D2LL1L3BB1HSW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
03099-35-10605101Cblack grey RAL 70215M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-10606121Cblack grey RAL 70216M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-10608161Cblack grey RAL 70218M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-10610201Cblack grey RAL 702110M20x1,524,882,351,63021,59,512222,82060 22.26 €
03099-35-106051012Corange5M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-106061212Corange6M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-106081612Corange8M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-106102012Corange10M20x1,524,882,351,63021,59,512222,82060 22.26 €
03099-35-1060510116Crape yellow RAL 10215M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-1060612116Crape yellow RAL 10216M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-1060816116Crape yellow RAL 10218M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-1061020116Crape yellow RAL 102110M20x1,524,882,351,63021,59,512222,82060 22.26 €
03099-35-1060510148Cred5M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-1060612148Cred6M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-1060816148Cred8M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-1061020148Cred10M20x1,524,882,351,63021,59,512222,82060 22.26 €
03099-35-1060510186Csignal green RAL 60325M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-1060612186Csignal green RAL 60326M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-1060816186Csignal green RAL 60328M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-1061020186Csignal green RAL 603210M20x1,524,882,351,63021,59,512222,82060 22.26 €
03099-35-1060510187Ctraffic blue RAL 50175M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-1060612187Ctraffic blue RAL 50176M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-1060816187Ctraffic blue RAL 50178M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-1061020187Ctraffic blue RAL 501710M20x1,524,882,351,63021,59,512222,82060 22.26 €
03099-35-1060510188Clight grey RAL 70355M10x11646,726,31510,94,96131,3814 15.81 €
03099-35-1060612188Clight grey RAL 70356M12x1,517,456,531,519135,88141,8815 17.20 €
03099-35-1060816188Clight grey RAL 70358M16x1,521,672,6422617,78,110192,31535 18.86 €
03099-35-1061020188Clight grey RAL 703510M20x1,524,882,351,63021,59,512222,82060 22.26 €

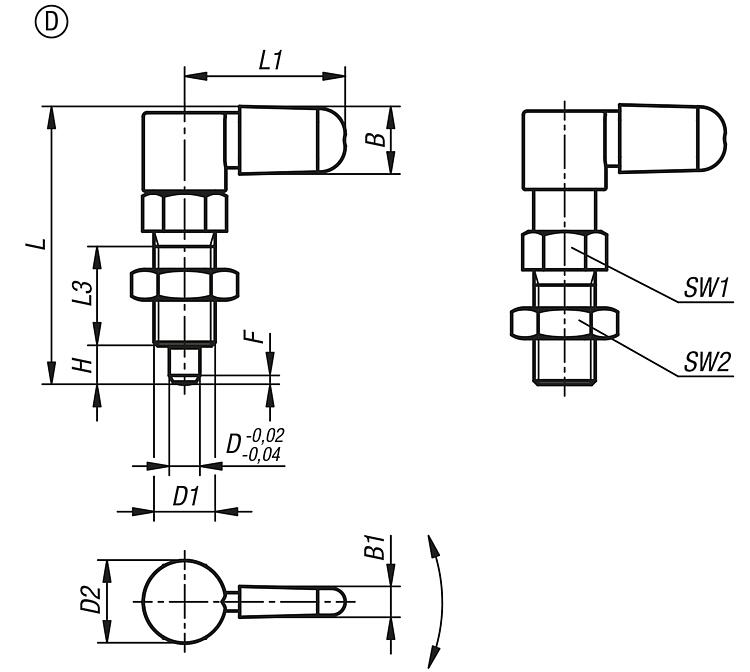

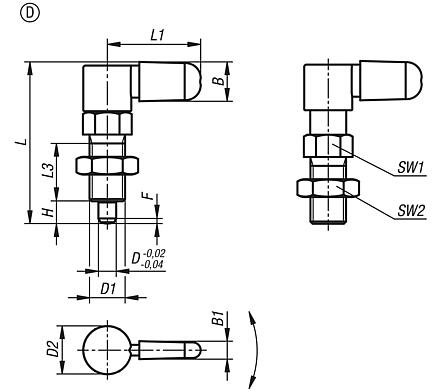

Cam-action indexing plungers, stainless steel with internal guide, Form D, with grip cap, with nut

More information

Drawings

Cam-action indexing plungers, stainless steel with internal guide, Form D, with grip cap, with nut

Item selection/filter

Order No.FormComponent
colour
DD1D2LL1L3BB1HSW1SW2Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
03099-35-10705101Dblack grey RAL 70215M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-10706121Dblack grey RAL 70216M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-10708161Dblack grey RAL 70218M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-10710201Dblack grey RAL 702110M20x1,524,882,351,63021,59,51222302,82060 24.52 €
03099-35-107051012Dorange5M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-107061212Dorange6M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-107081612Dorange8M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-107102012Dorange10M20x1,524,882,351,63021,59,51222302,82060 24.52 €
03099-35-1070510116Drape yellow RAL 10215M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-1070612116Drape yellow RAL 10216M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-1070816116Drape yellow RAL 10218M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-1071020116Drape yellow RAL 102110M20x1,524,882,351,63021,59,51222302,82060 24.52 €
03099-35-1070510148Dred5M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-1070612148Dred6M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-1070816148Dred8M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-1071020148Dred10M20x1,524,882,351,63021,59,51222302,82060 24.52 €
03099-35-1070510186Dsignal green RAL 60325M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-1070612186Dsignal green RAL 60326M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-1070816186Dsignal green RAL 60328M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-1071020186Dsignal green RAL 603210M20x1,524,882,351,63021,59,51222302,82060 24.52 €
03099-35-1070510187Dtraffic blue RAL 50175M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-1070612187Dtraffic blue RAL 50176M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-1070816187Dtraffic blue RAL 50178M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-1071020187Dtraffic blue RAL 501710M20x1,524,882,351,63021,59,51222302,82060 24.52 €
03099-35-1070510188Dlight grey RAL 70355M10x11646,726,31510,94,9613171,3814 16.17 €
03099-35-1070612188Dlight grey RAL 70356M12x1,517,456,531,519135,8814191,8815 17.76 €
03099-35-1070816188Dlight grey RAL 70358M16x1,521,672,6422617,78,11019242,31535 19.86 €
03099-35-1071020188Dlight grey RAL 703510M20x1,524,882,351,63021,59,51222302,82060 24.52 €
