        Fastening set steel or stainless steel for thin-walled parts

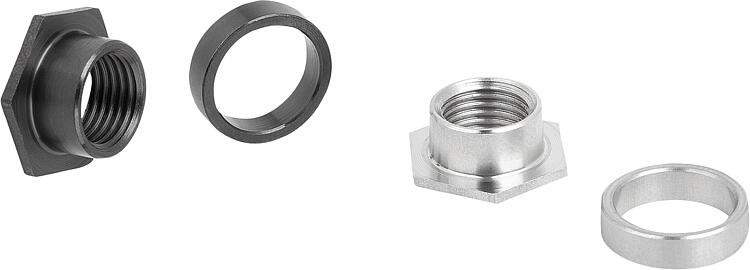

Item description/product images

DescriptionProduct description:Fastening sets for thin-walled parts are used e.g. to secure indexing plungers to sheet metal.Material:

Steel or stainless steel 1.4305.

Version:Steel, black oxidised.
Stainless steel, bright.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

03094-10_Datasheet_32541_Fastening_set_steel_or_stainless_steel_for_thin-walled_parts--en

163 kB

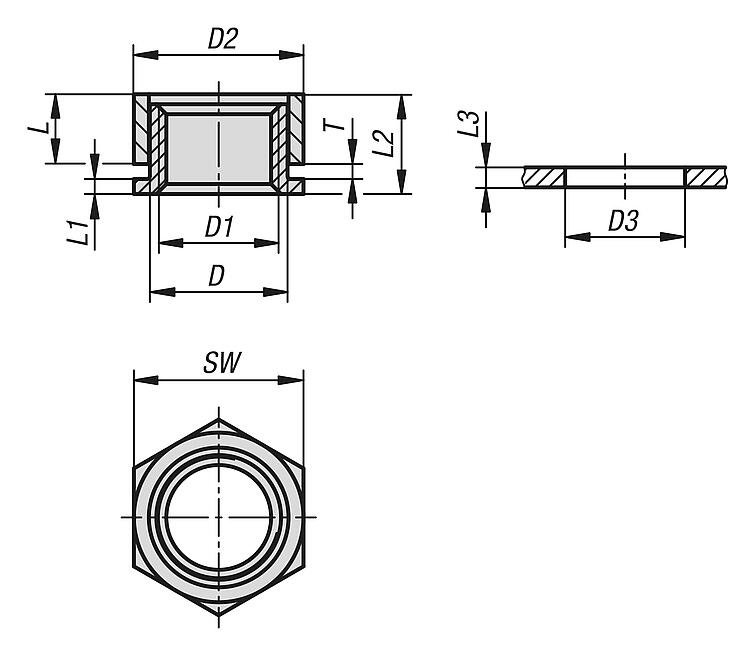

Drawings

Item selection/filter

Order No.	Main material	D	D1	D2	D3	L	L1	L2	L3=wall thickness	SW	T=clamping length
03094-10-10115	steel	11,8	M10x1	15	12	5	1,5	8	1-2	16	1,5
03094-10-10125	steel	11,8	M10x1	15	12	4	1,5	8	2-3	16	2,5
03094-10-10135	steel	11,8	M10x1	15	12	3	1,5	8	3-4	16	3,5
03094-10-10145	steel	11,8	M10x1	15	12	2	1,5	8	4-5	16	4,5
03094-10-12115	steel	13,8	M12x1,5	17	14	7	1,5	10	1-2	17	1,5
03094-10-12125	steel	13,8	M12x1,5	17	14	6	1,5	10	2-3	17	2,5
03094-10-12135	steel	13,8	M12x1,5	17	14	5	1,5	10	3-4	17	3,5
03094-10-12145	steel	13,8	M12x1,5	17	14	4	1,5	10	4-5	17	4,5
03094-10-16120	steel	17,8	M16x1,5	22	18	8	2	12	1,5-2,5	22	2
03094-10-16130	steel	17,8	M16x1,5	22	18	7	2	12	2,5-3,5	22	3
03094-10-16140	steel	17,8	M16x1,5	22	18	6	2	12	3,5-4,5	22	4
03094-10-16150	steel	17,8	M16x1,5	22	18	5	2	12	4,5-5,5	22	5
03094-10-16160	steel	17,8	M16x1,5	22	18	4	2	12	5,5-6,5	22	6
03094-10-20120	steel	21,8	M20x1,5	26	22	11	2	15	1,5-2,5	27	2
03094-10-20130	steel	21,8	M20x1,5	26	22	10	2	15	2,5-3,5	27	3
03094-10-20140	steel	21,8	M20x1,5	26	22	9	2	15	3,5-4,5	27	4
03094-10-20150	steel	21,8	M20x1,5	26	22	8	2	15	4,5-5,5	27	5
03094-10-20160	steel	21,8	M20x1,5	26	22	7	2	15	5,5-6,5	27	6
03094-10-110115	stainless steel	11,8	M10x1	15	12	5	1,5	8	1-2	16	1,5
03094-10-110125	stainless steel	11,8	M10x1	15	12	4	1,5	8	2-3	16	2,5
03094-10-110135	stainless steel	11,8	M10x1	15	12	3	1,5	8	3-4	16	3,5
03094-10-110145	stainless steel	11,8	M10x1	15	12	2	1,5	8	4-5	16	4,5
03094-10-112115	stainless steel	13,8	M12x1,5	17	14	7	1,5	10	1-2	17	1,5
03094-10-112125	stainless steel	13,8	M12x1,5	17	14	6	1,5	10	2-3	17	2,5
03094-10-112135	stainless steel	13,8	M12x1,5	17	14	5	1,5	10	3-4	17	3,5
03094-10-112145	stainless steel	13,8	M12x1,5	17	14	4	1,5	10	4-5	17	4,5
03094-10-116120	stainless steel	17,8	M16x1,5	22	18	8	2	12	1,5-2,5	22	2
03094-10-116130	stainless steel	17,8	M16x1,5	22	18	7	2	12	2,5-3,5	22	3
03094-10-116140	stainless steel	17,8	M16x1,5	22	18	6	2	12	3,5-4,5	22	4
03094-10-116150	stainless steel	17,8	M16x1,5	22	18	5	2	12	4,5-5,5	22	5
03094-10-116160	stainless steel	17,8	M16x1,5	22	18	4	2	12	5,5-6,5	22	6
03094-10-120120	stainless steel	21,8	M20x1,5	26	22	11	2	15	1,5-2,5	27	2
03094-10-120130	stainless steel	21,8	M20x1,5	26	22	10	2	15	2,5-3,5	27	3
03094-10-120140	stainless steel	21,8	M20x1,5	26	22	9	2	15	3,5-4,5	27	4
03094-10-120150	stainless steel	21,8	M20x1,5	26	22	8	2	15	4,5-5,5	27	5
03094-10-120160	stainless steel	21,8	M20x1,5	26	22	7	2	15	5,5-6,5	27	6
