        Self-aligning pads

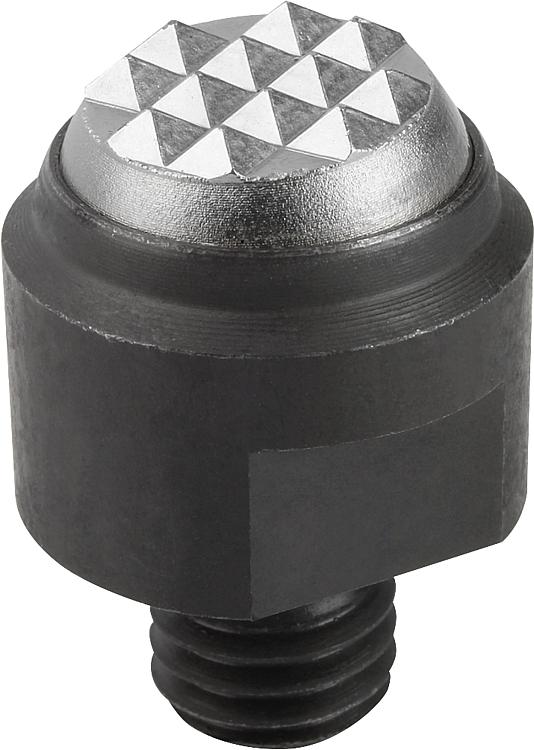

        Self-aligning pads, Form M, with external thread, flattened ball, diamond grip

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball carbide.Version:Body tempered and phosphated.
Ball nickel plated.Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.

Ball secured against rotation.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02000_M Self-aligning pads, Form M, with external thread, flattened ball, diamond grip

176 kB

Drawings

Item selection/filter

Order No.	Form	B	D1	D2	D3	H	Ball-Ø	SW	Load rating max. kN (static load only)
02000-908	M	8	13	M8	7,7	13,3	10	11	10
02000-910	M	10	20	M10	12	18	16	17	25
02000-912	M	12	20	M12	12	18	16	17	25
