        Fixture feet with internal thread, Form C hardened spherical face

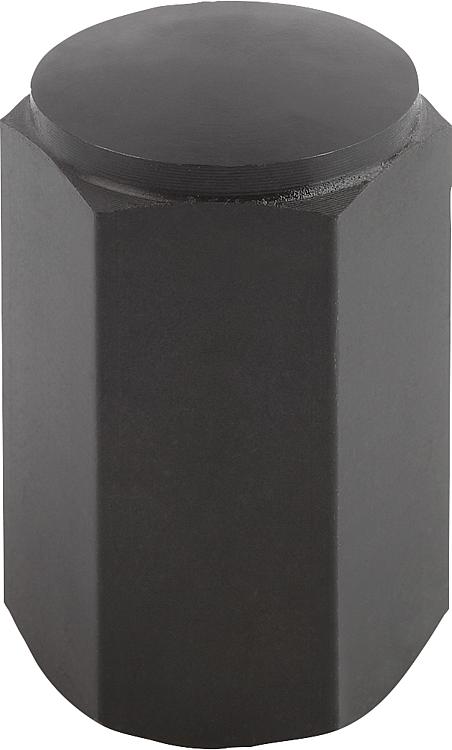

Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:Fixture feet with internal thread are used as supports for fixtures or rough or machined workpieces. They can also be used as stops or thust pads in fixtures and toolmaking.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02070_C Fixture feet with internal thread, Form C hardened spherical face

136 kB

Drawings

Item selection/filter

Order No.	Form	D	G	H	R	T	SW
02070-306X20	C	9,5	M6	20	15	12	10
02070-306X40	C	9,5	M6	40	15	12	10
02070-310X32	C	16,5	M10	32	30	18	17
02070-310X63	C	16,5	M10	63	30	18	17
02070-312X32	C	18,5	M12	32	35	18	19
02070-312X63	C	18,5	M12	63	35	18	19
02070-316X50	C	23	M16	50	40	24	24
02070-316X100	C	23	M16	100	40	24	24
