Fixture feet with internal thread

02070

Fixture feet with internal thread

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Rest pads and positioning feet
        Fixture feet with internal thread

Item description/product images

Show/filter all items

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:Fixture feet with internal thread are used as supports for fixtures or rough or machined workpieces. They can also be used as stops or thust pads in fixtures and toolmaking.Drawing reference:

Form A: Flat face hardened
Form B: Flat face hardened and ground
Form C: Spherical face hardened
Form D: Serrated face tempered

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02070 Fixture feet with internal thread

Drawings (total overview)

Fixture feet with internal thread

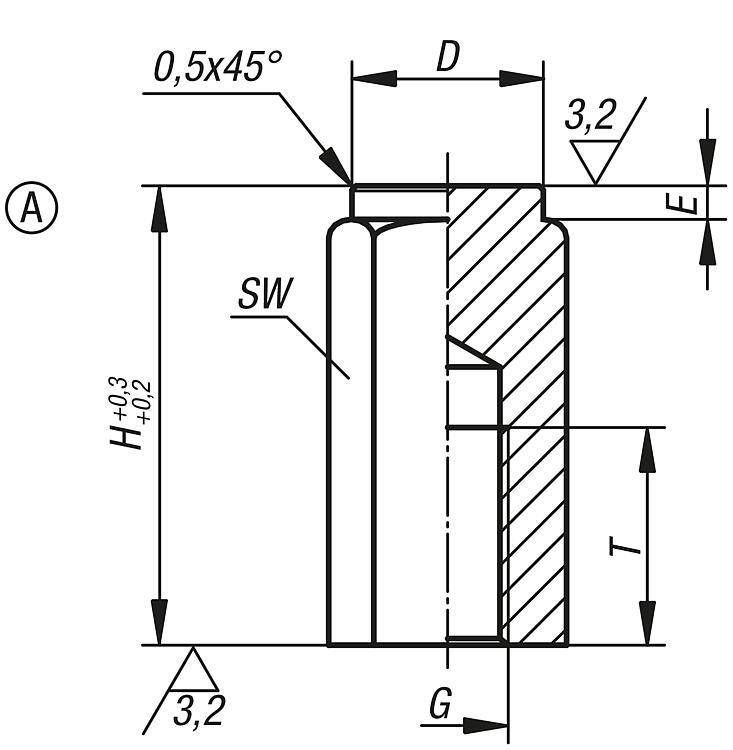

Fixture feet with internal thread, Form A hardened flat face

More information

Drawings

Fixture feet with internal thread, Form A hardened flat face

Item selection/filter

Order No.	Form	D	E	G	H	T	SW	CAD	Acc.	Price	Order
02070-106X20	A	9,5	2	M6	20	12	10			0.00 €
02070-106X40	A	9,5	2	M6	40	12	10			0.00 €
02070-110X32	A	16,5	3	M10	32	18	17			0.00 €
02070-110X63	A	16,5	3	M10	63	18	17			0.00 €
02070-112X32	A	18,5	3	M12	32	18	19			0.00 €
02070-112X63	A	18,5	3	M12	63	18	19			0.00 €
02070-116X50	A	23	4	M16	50	24	24			0.00 €
02070-116X100	A	23	4	M16	100	24	24			0.00 €

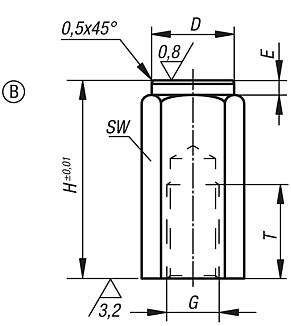

Fixture feet with internal thread, Form B flat face hardened and ground

More information

Drawings

Fixture feet with internal thread, Form B flat face hardened and ground

Item selection/filter

Order No.	Form	D	E	G	H	T	SW	CAD	Acc.	Price	Order
02070-206X20	B	9,5	2	M6	20	12	10			0.00 €
02070-206X40	B	9,5	2	M6	40	12	10			0.00 €
02070-210X32	B	16,5	3	M10	32	18	17			0.00 €
02070-210X63	B	16,5	3	M10	63	18	17			0.00 €
02070-212X32	B	18,5	3	M12	32	18	19			0.00 €
02070-212X63	B	18,5	3	M12	63	18	19			0.00 €
02070-216X50	B	23	4	M16	50	24	24			0.00 €
02070-216X100	B	23	4	M16	100	24	24			0.00 €

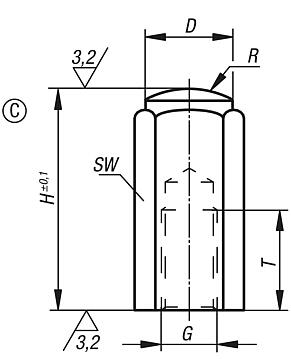

Fixture feet with internal thread, Form C hardened spherical face

More information

Drawings

Fixture feet with internal thread, Form C hardened spherical face

Item selection/filter

Order No.	Form	D	G	H	R	T	SW	CAD	Acc.	Price	Order
02070-306X20	C	9,5	M6	20	15	12	10			0.00 €
02070-306X40	C	9,5	M6	40	15	12	10			0.00 €
02070-310X32	C	16,5	M10	32	30	18	17			0.00 €
02070-310X63	C	16,5	M10	63	30	18	17			0.00 €
02070-312X32	C	18,5	M12	32	35	18	19			0.00 €
02070-312X63	C	18,5	M12	63	35	18	19			0.00 €
02070-316X50	C	23	M16	50	40	24	24			0.00 €
02070-316X100	C	23	M16	100	40	24	24			0.00 €

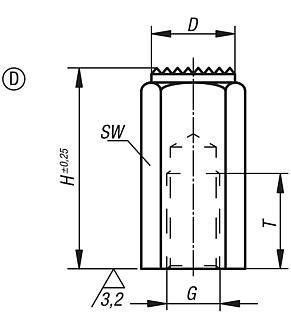

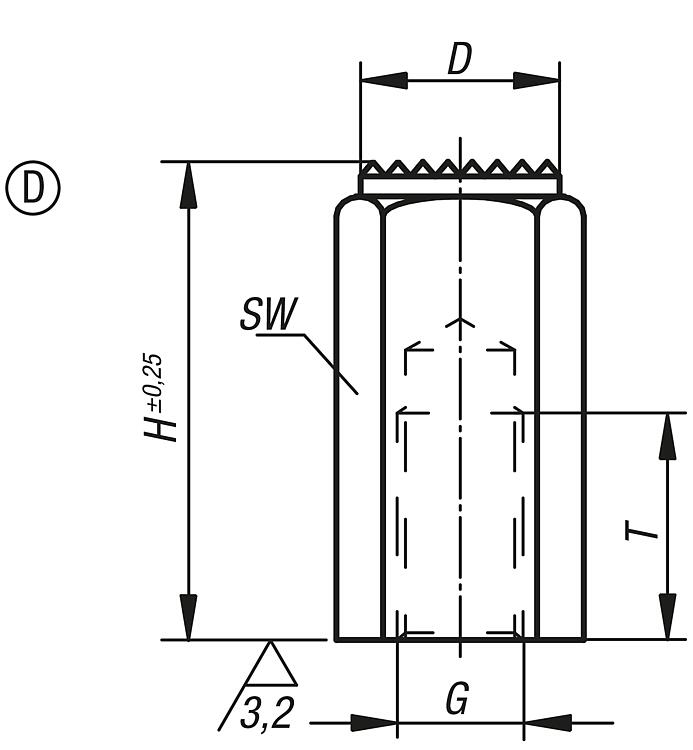

Fixture feet with internal thread, Form D serrated face tempered

More information

Drawings

Fixture feet with internal thread, Form D serrated face tempered

Item selection/filter

Order No.	Form	D	G	H	T	SW	CAD	Acc.	Price	Order
02070-406X20	D	9,5	M6	20	12	10			0.00 €
02070-406X40	D	9,5	M6	40	12	10			0.00 €
02070-410X32	D	16,5	M10	32	18	17			0.00 €
02070-410X63	D	16,5	M10	63	18	17			0.00 €
02070-412X32	D	18,5	M12	32	18	19			0.00 €
02070-412X63	D	18,5	M12	63	18	19			0.00 €
02070-416X50	D	23	M16	50	24	24			0.00 €
02070-416X100	D	23	M16	100	24	24			0.00 €
