Workpiece stops for multi-clamping system
 41505-10

Workpiece stops for multi-clamping system

 go back

Item description/product images

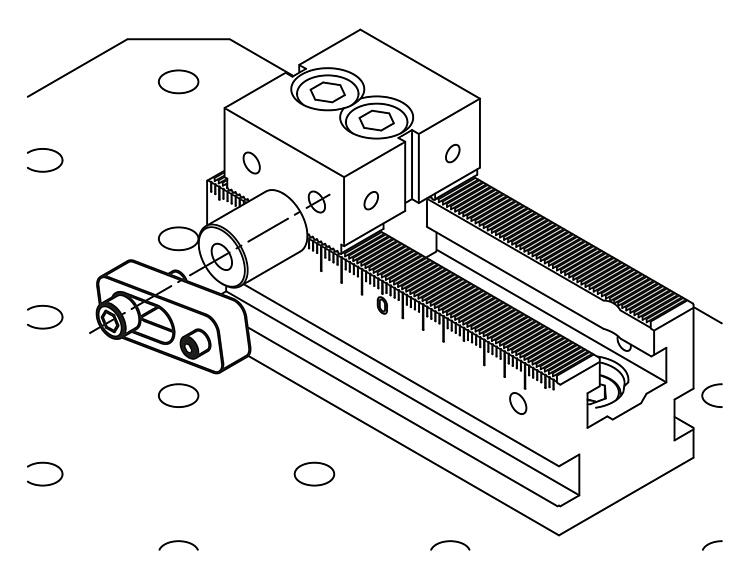

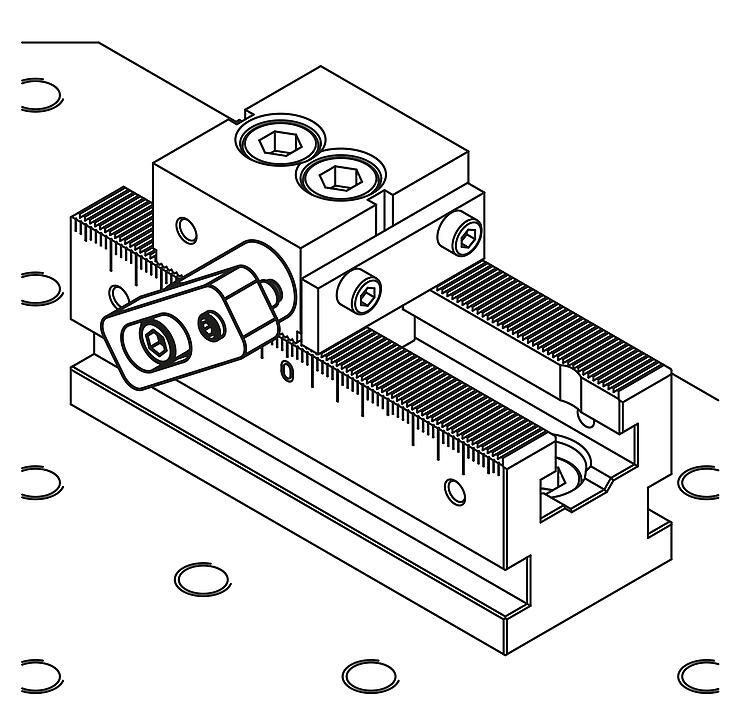

DescriptionMaterial:Carbon steel.Version:Tempered and flat faces ground (HRC 32).Note:Workpieces can be positioned laterally using the workpiece stops for multi-clamping systems.Application:The end stop can be mounted laterally on both surfaces of the fixed jaws.Advantages:Flexible adjustment with the elongated hole.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 41505-10 Workpiece stops for multi-clamping system 414 kB

Drawings

Workpiece stops for multi-clamping system

Item selection/filter
Order No.suitable for
system width		LB

HL1L2L3B1B2H1RD
Internal
thread		CADAcc.PriceOrder
41505-10-0504550451710381012116,564M6 0.00 €
41505-10-0725072501710431012116,564M6 0.00 €
41505-10-100551005525154511,5161498,55M8 0.00 €
