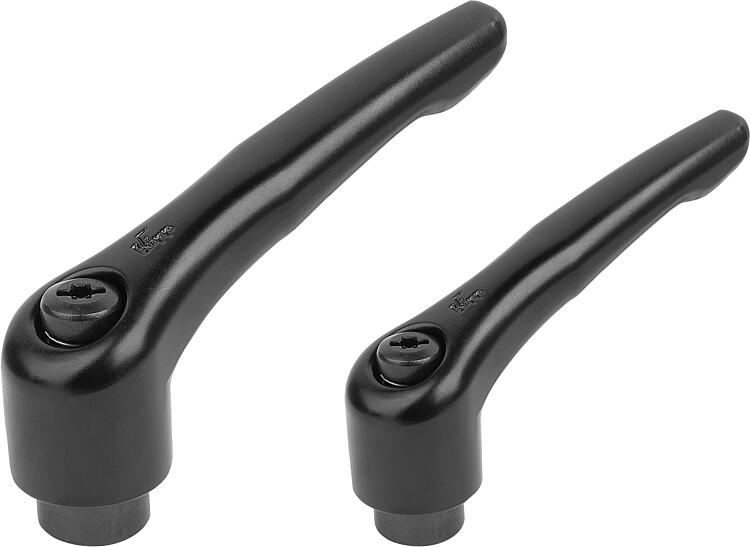

06450_SE inchClamping levers with internal thread, satin finish - inch |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated.
Steel parts black oxidised.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge. |
| Order No. | Main
colour | Surface finish
body | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| 06450-9AD1 | jet black RAL 9005 | satin finish | 9 | 6-32 | 6 | 8 | 11 | 11,5 | 21,4 | 4 | 11,9 | 24 | 27 | 22 | 27,7 | 6,4 | 12 |  | | 6.19 € | | | 06450-9AE1 | jet black RAL 9005 | satin finish | 9 | 8-32 | 6 | 8 | 11 | 11,5 | 21,4 | 4 | 11,9 | 24 | 27 | 22 | 27,7 | 6,4 | 12 | | | 6.19 € | | | 06450-9A11 | jet black RAL 9005 | satin finish | 9 | 10-32 | 6 | 8 | 11 | 11,5 | 21,4 | 4 | 11,9 | 24 | 27 | 22 | 27,7 | 6,4 | 12 | | | 6.19 € | | | 06450-0AD1 | jet black RAL 9005 | satin finish | 0 | 6-32 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 6.51 € | | | 06450-0AE1 | jet black RAL 9005 | satin finish | 0 | 8-32 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 6.51 € | | | 06450-0A01 | jet black RAL 9005 | satin finish | 0 | 10-24 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 6.51 € | | | 06450-0A11 | jet black RAL 9005 | satin finish | 0 | 10-32 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 6.51 € | | | 06450-0A21 | jet black RAL 9005 | satin finish | 0 | 1/4-20 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 6.51 € | | | 06450-1AE1 | jet black RAL 9005 | satin finish | 1 | 8-32 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 6.51 € | | | 06450-1A01 | jet black RAL 9005 | satin finish | 1 | 10-24 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 6.51 € | | | 06450-1A11 | jet black RAL 9005 | satin finish | 1 | 10-32 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 6.51 € | | | 06450-1A21 | jet black RAL 9005 | satin finish | 1 | 1/4-20 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 6.51 € | | | 06450-2A21 | jet black RAL 9005 | satin finish | 2 | 1/4-20 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 8.21 € | | | 06450-2A31 | jet black RAL 9005 | satin finish | 2 | 5/16-18 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 8.21 € | | | 06450-3A31 | jet black RAL 9005 | satin finish | 3 | 5/16-18 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.99 € | | | 06450-3A41 | jet black RAL 9005 | satin finish | 3 | 3/8-16 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.99 € | | | 06450-4A41 | jet black RAL 9005 | satin finish | 4 | 3/8-16 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 10.50 € | | | 06450-4A51 | jet black RAL 9005 | satin finish | 4 | 1/2-13 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 10.50 € | | | 06450-5A51 | jet black RAL 9005 | satin finish | 5 | 1/2-13 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 13.14 € | | | 06450-5A61 | jet black RAL 9005 | satin finish | 5 | 5/8-11 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 13.14 € | |
