        Clamping levers, die-cast zinc with internal thread, threaded insert black oxidised steel - inch

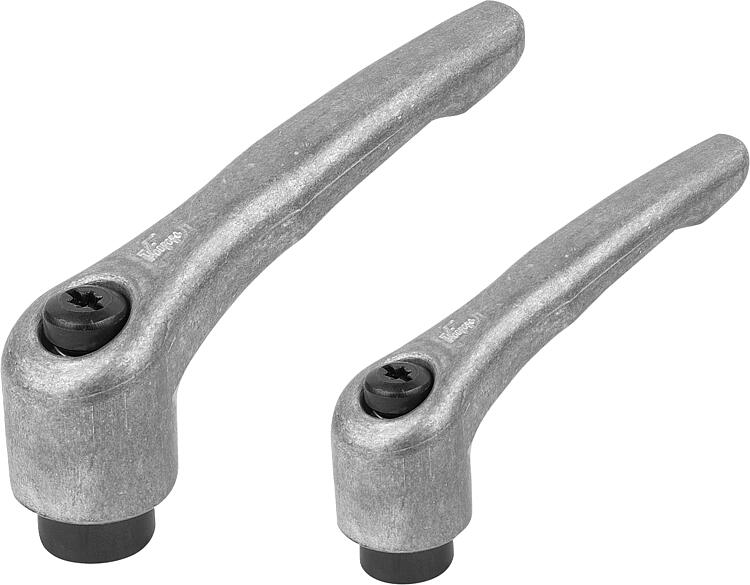

        Clamping levers with internal thread, bright - inch

Item description/product images

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated.
Steel parts black oxidised.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06450_BL inch Clamping levers with internal thread, bright, inch

258 kB

Drawings

Item selection/filter

Order No.	Surface finish body	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06450-9AD008	bright	9	6-32	6	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	5.93 €
06450-9AE008	bright	9	8-32	6	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	5.93 €
06450-9A1008	bright	9	10-32	6	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	5.93 €
06450-0AD008	bright	0	6-32	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6.24 €
06450-0AE008	bright	0	8-32	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6.24 €
06450-0A0008	bright	0	10-24	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6.24 €
06450-0A1008	bright	0	10-32	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6.24 €
06450-0A2008	bright	0	1/4-20	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6.24 €
06450-1AE008	bright	1	8-32	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	6.24 €
06450-1A0008	bright	1	10-24	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	6.24 €
06450-1A1008	bright	1	10-32	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	6.24 €
06450-1A2008	bright	1	1/4-20	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	6.24 €
06450-2A2008	bright	2	1/4-20	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.89 €
06450-2A3008	bright	2	5/16-18	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.89 €
06450-3A3008	bright	3	5/16-18	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	8.64 €
06450-3A4008	bright	3	3/8-16	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	8.64 €
06450-4A4008	bright	4	3/8-16	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	10.09 €
06450-4A5008	bright	4	1/2-13	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	10.09 €
06450-5A5008	bright	5	1/2-13	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	12.62 €
06450-5A6008	bright	5	5/8-11	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	12.62 €
