Protectors

80855-15

Protectors

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains
        Protectors

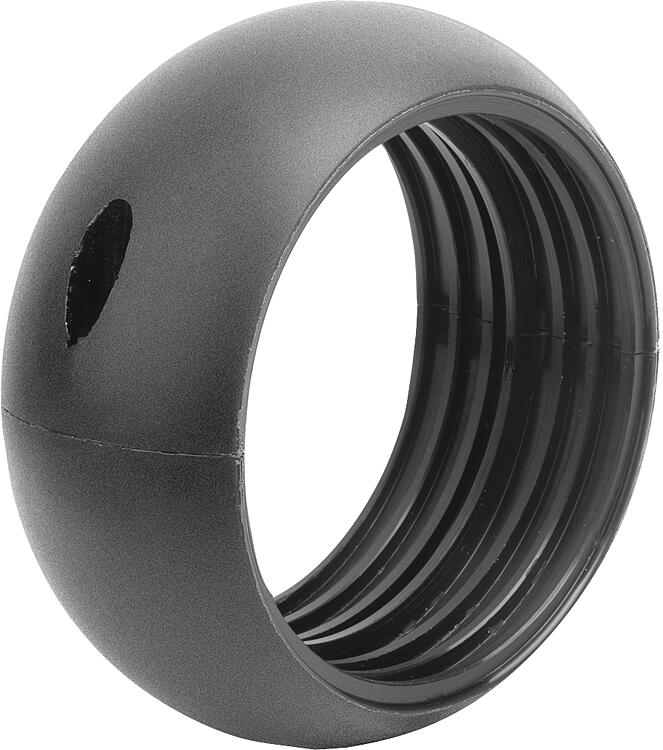

Item description/product images

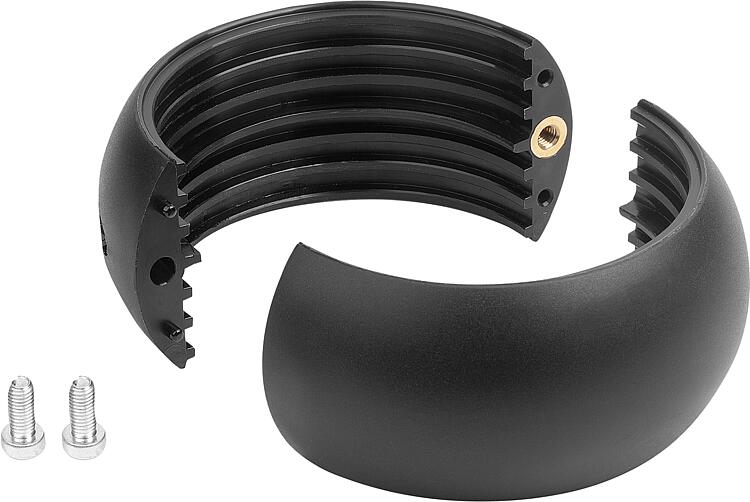

DescriptionMaterial:Polyamide PA6.Version:black.Note:Protectors for additional protection for energy chains. Protects the energy chain from impacts, sharp edges and abrasion. Can be mounted at any point along the energy chain. The protector consists of two half shells. These are simply slipped over the energy chain and screwed together with M5x12 hexagon socket head cap screws. The protector can still rotate on the energy chain.Temperature range:-45 °C to +105 °C (briefly up to +150 °C).Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-15 Protectors

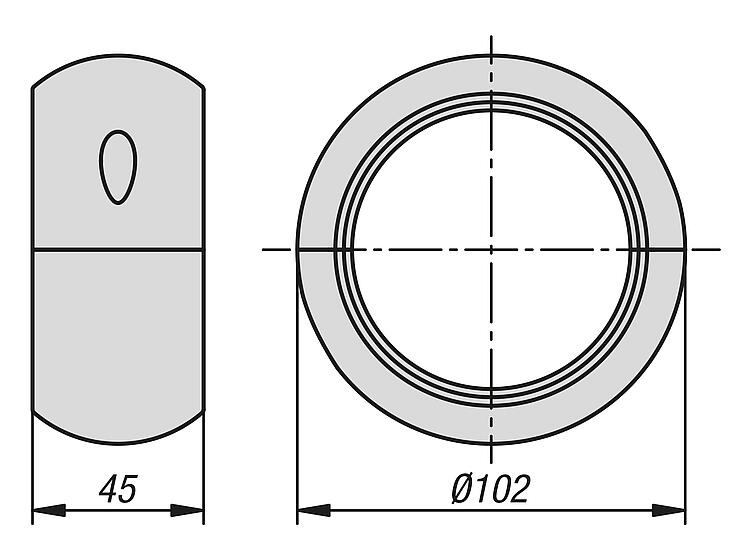

Drawings

Protectors

Item selection/filter

Order No.	Nominal size	CAD	Acc.	Price	Order
80855-15-0701	70			106.29 €
