07850-10Pipe clips DIN 1596 single leg, lightweight |
go back |
|
Item description/product images |
|
|

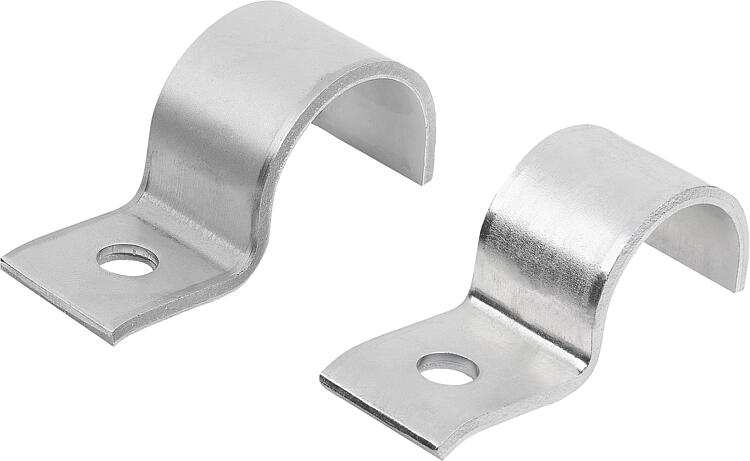

DescriptionMaterial:Steel or stainless steel A2.Version:Electro zinc-plated steel. Bright stainless steel.Note:Single leg pipe clips, pre-tensioned, DIN 1596 lightweight version.
These pipe clips are used to fasten and install light pipework, cables and various cylindrical parts.
The pipe clips are designed to grip the pipe. Optimum clamping is achieved through tightening the fastening screw.
D1 = 52 is similar to DIN 1596. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

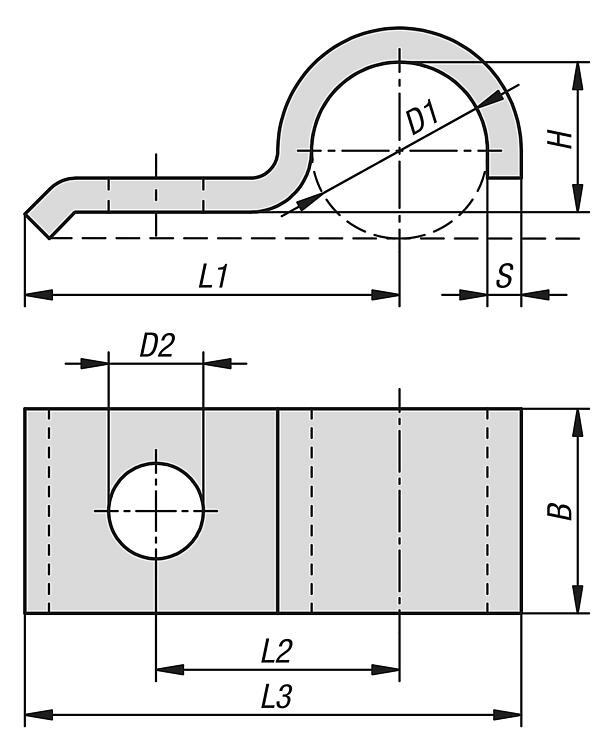

Order No. | Main material | Surface finish body | B | D1 | D2 | H | L1 | L2 | L3 | S | Clamping range D1 inches | Clamping range D1 mm | CAD | Acc. | Price | Order |
---|
07850-10-10070 | steel | galvanised | 16 | 7 | 6.6 | 5 | 26 | 14 | 31,5 | 2 | 0.22-0.28 | 5,5-7 |  | | 0.44 € | | 07850-10-10090 | steel | galvanised | 16 | 9 | 6.6 | 6 | 28 | 16 | 34,5 | 2 | 0.28-0.35 | 7-9 |  | | 0.49 € | | 07850-10-10130 | steel | galvanised | 20 | 13 | 6.6 | 9 | 30 | 18 | 38,5 | 2 | 0.39-0.51 | 9,5-13 |  | | 0.60 € | | 07850-10-10155 | steel | galvanised | 20 | 15.5 | 6.6 | 12 | 32 | 20 | 41,75 | 2 | 0.51-0.61 | 13-15,5 |  | | 0.71 € | | 07850-10-10190 | steel | galvanised | 20 | 19 | 6.6 | 15 | 34 | 22 | 45,5 | 2 | 0.61-0.75 | 15,5-19 |  | | 0.79 € | | 07850-10-10230 | steel | galvanised | 25 | 23 | 9 | 19 | 43 | 28 | 57,5 | 3 | 0.79-0.91 | 20-23 |  | | 1.09 € | | 07850-10-10260 | steel | galvanised | 25 | 26 | 9 | 22 | 44 | 29 | 60 | 3 | 0.91-1.02 | 23-26 |  | | 1.25 € | | 07850-10-10285 | steel | galvanised | 25 | 28.5 | 9 | 24 | 47 | 32 | 64,25 | 3 | 1.02-1.12 | 26-28,5 |  | | 1.44 € | | 07850-10-10310 | steel | galvanised | 25 | 31 | 9 | 27 | 47 | 32 | 65,5 | 3 | 1.12-1.22 | 28,5-31 |  | | 1.60 € | | 07850-10-10360 | steel | galvanised | 30 | 36 | 11 | 32 | 57 | 40 | 78 | 3 | 1.3-1.42 | 33-36 |  | | 2.51 € | | 07850-10-10390 | steel | galvanised | 30 | 39 | 11 | 34 | 59 | 42 | 81,5 | 3 | 1.42-1.54 | 36-39 |  | | 2.63 € | | 07850-10-10430 | steel | galvanised | 30 | 43 | 11 | 38 | 61 | 44 | 85,5 | 3 | 1.54-1.69 | 39-43 |  | | 2.75 € | | 07850-10-10460 | steel | galvanised | 30 | 46 | 11 | 41 | 62 | 45 | 88 | 3 | 1.69-1.81 | 43-46 |  | | 2.94 € | | 07850-10-10490 | steel | galvanised | 40 | 49 | 14 | 44 | 67 | 48 | 95,5 | 4 | 1.81-1.93 | 46-49 |  | | 4.62 € | | 07850-10-10520 | steel | galvanised | 40 | 52 | 14 | 47 | 72 | 53 | 102 | 4 | 1.93-2.05 | 49-52 |  | | 6.23 € | | 07850-10-10580 | steel | galvanised | 40 | 58 | 14 | 52 | 74 | 55 | 107 | 4 | 2.09-2.28 | 53-58 |  | | 6.69 € | | 07850-10-10610 | steel | galvanised | 40 | 61 | 14 | 56 | 77 | 58 | 111,5 | 4 | 2.28-2.4 | 58-61 |  | | 7.04 € | | 07850-10-40070 | stainless steel | bright | 16 | 7 | 6.6 | 5 | 26 | 14 | 31,5 | 2 | 0.22-0.28 | 5,5-7 |  | | 1.63 € | | 07850-10-40090 | stainless steel | bright | 16 | 9 | 6.6 | 6 | 28 | 16 | 34,5 | 2 | 0.28-0.35 | 7-9 |  | | 2.05 € | | 07850-10-40130 | stainless steel | bright | 20 | 13 | 6.6 | 9 | 30 | 18 | 38,5 | 2 | 0.39-0.51 | 9,5-13 |  | | 2.20 € | | 07850-10-40155 | stainless steel | bright | 20 | 15.5 | 6.6 | 12 | 32 | 20 | 41,75 | 2 | 0.51-0.61 | 13-15,5 |  | | 2.46 € | | 07850-10-40190 | stainless steel | bright | 20 | 19 | 6.6 | 15 | 34 | 22 | 45,5 | 2 | 0.61-0.75 | 15,5-19 |  | | 3.25 € | | 07850-10-40230 | stainless steel | bright | 25 | 23 | 9 | 19 | 43 | 28 | 57,5 | 3 | 0.79-0.91 | 20-23 |  | | 3.82 € | | 07850-10-40260 | stainless steel | bright | 25 | 26 | 9 | 22 | 44 | 29 | 60 | 3 | 0.91-1.02 | 23-26 |  | | 4.07 € | | 07850-10-40285 | stainless steel | bright | 25 | 28.5 | 9 | 24 | 47 | 32 | 64,25 | 3 | 1.02-1.12 | 26-28,5 |  | | 4.46 € | | 07850-10-40310 | stainless steel | bright | 25 | 31 | 9 | 27 | 47 | 32 | 65,5 | 3 | 1.12-1.22 | 28,5-31 |  | | 5.29 € | | 07850-10-40360 | stainless steel | bright | 30 | 36 | 11 | 32 | 57 | 40 | 78 | 3 | 1.3-1.42 | 33-36 |  | | 5.67 € | | 07850-10-40390 | stainless steel | bright | 30 | 39 | 11 | 34 | 59 | 42 | 81,5 | 3 | 1.42-1.54 | 36-39 |  | | 6.05 € | | 07850-10-40430 | stainless steel | bright | 30 | 43 | 11 | 38 | 61 | 44 | 85,5 | 3 | 1.54-1.69 | 39-43 |  | | 6.34 € | | 07850-10-40460 | stainless steel | bright | 30 | 46 | 11 | 41 | 62 | 45 | 88 | 3 | 1.69-1.81 | 43-46 |  | | 6.59 € | | 07850-10-40490 | stainless steel | bright | 40 | 49 | 14 | 44 | 67 | 48 | 95,5 | 4 | 1.81-1.93 | 46-49 |  | | 10.89 € | | 07850-10-40520 | stainless steel | bright | 40 | 52 | 14 | 47 | 72 | 53 | 102 | 4 | 1.93-2.05 | 49-52 |  | | 11.26 € | | 07850-10-40580 | stainless steel | bright | 40 | 58 | 14 | 52 | 74 | 55 | 107 | 4 | 2.09-2.28 | 53-58 |  | | 12.40 € | | 07850-10-40610 | stainless steel | bright | 40 | 61 | 14 | 56 | 77 | 58 | 111,5 | 4 | 2.28-2.4 | 58-61 |  | | 12.63 € | |
