96521Edge protection profiles with integrated steel wire core |
go back |
|
|
DescriptionMaterial:Edge protection EPDM or PVC.
Seal EPDM foam rubber.
Version:black.Note:In addition to edge protection, these profiles also provide a sealing function against moisture, dust and dirt for other elements such as doors, hatches or housing covers. Depending on the shape of the foam rubber profile, they can be used in a wide range of applications.
We recommend compressing the sealing lip of the edge protection by max.50%.
To ensure the best possible seal, the lips should be compressed by 30-40%.
These specifications are recommendations; in practice, they are individually dependent on the application and the parts used.
The sizes edge protection profiles made from EPDM are UL50, UL50E and UL94HB certified.Assembly:Easy, quick and smooth assembly. The edge protection profile is easy to push on by hand and remains in place. No adhesive or fastening material required.On request:Other lengths.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

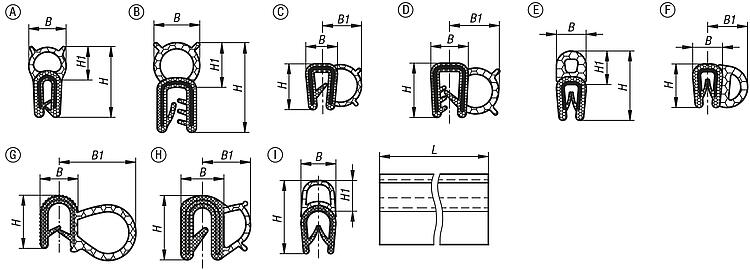

Drawings (total overview) |
| Order No. | Form | Main
material | L | Clamping range
mm | Minimum bend radius
mm | B
| B1 | H | H1 | CAD | Acc. | Price | Order |
|---|
| 96521-015X2000 | A | EPDM | 2000 | 0,5-1,5 | A=50 B=180 C=25 D=25 | 8 | - | 15 | 7 |  | | 13.36 € | | | 96521-015X5000 | A | EPDM | 5000 | 0,5-1,5 | A=50 B=180 C=25 D=25 | 8 | - | 15 | 7 | | | 30.25 € | | | 96521-015X10000 | A | EPDM | 10000 | 0,5-1,5 | A=50 B=180 C=25 D=25 | 8 | - | 15 | 7 | | | 58.41 € | | | 96521-015X20000 | A | EPDM | 20000 | 0,5-1,5 | A=50 B=180 C=25 D=25 | 8 | - | 15 | 7 | | | 114.71 € | | | 96521-015X50000 | A | EPDM | 50000 | 0,5-1,5 | A=50 B=180 C=25 D=25 | 8 | - | 15 | 7 | | | 283.61 € | | | 96521-122X2000 | B | EPDM | 2000 | 1,0-3,0 | A=50 B=180 C=30 D=30 | 11 | - | 22 | 11 | | | 9.30 € | | | 96521-122X5000 | B | EPDM | 5000 | 1,0-3,0 | A=50 B=180 C=30 D=30 | 11 | - | 22 | 11 | | | 20.04 € | | | 96521-122X10000 | B | EPDM | 10000 | 1,0-3,0 | A=50 B=180 C=30 D=30 | 11 | - | 22 | 11 | | | 38.02 € | | | 96521-122X20000 | B | EPDM | 20000 | 1,0-3,0 | A=50 B=180 C=30 D=30 | 11 | - | 22 | 11 | | | 73.90 € | | | 96521-122X50000 | B | EPDM | 50000 | 1,0-3,0 | A=50 B=180 C=30 D=30 | 11 | - | 22 | 11 | | | 181.57 € | | | 96521-211X2000 | C | EPDM | 2000 | 1,0-2,0 | A=100 B=200 C=100 D=60 | 8 | 9 | 11 | - | | | 11.62 € | | | 96521-211X5000 | C | EPDM | 5000 | 1,0-2,0 | A=100 B=200 C=100 D=60 | 8 | 9 | 11 | - | | | 25.86 € | | | 96521-211X10000 | C | EPDM | 10000 | 1,0-2,0 | A=100 B=200 C=100 D=60 | 8 | 9 | 11 | - | | | 49.62 € | | | 96521-211X20000 | C | EPDM | 20000 | 1,0-2,0 | A=100 B=200 C=100 D=60 | 8 | 9 | 11 | - | | | 97.12 € | | | 96521-211X50000 | C | EPDM | 50000 | 1,0-2,0 | A=100 B=200 C=100 D=60 | 8 | 9 | 11 | - | | | 239.63 € | | | 96521-313X2000 | D | EPDM | 2000 | 2,0-3,0 | A=50 B=20 C=120 D=40 | 9 | 12 | 13 | - | | | 12.47 € | | | 96521-313X5000 | D | EPDM | 5000 | 2,0-3,0 | A=50 B=20 C=120 D=40 | 9 | 12 | 13 | - | | | 27.98 € | | | 96521-313X10000 | D | EPDM | 10000 | 2,0-3,0 | A=50 B=20 C=120 D=40 | 9 | 12 | 13 | - | | | 53.84 € | | | 96521-313X20000 | D | EPDM | 20000 | 2,0-3,0 | A=50 B=20 C=120 D=40 | 9 | 12 | 13 | - | | | 105.56 € | | | 96521-313X50000 | D | EPDM | 50000 | 2,0-3,0 | A=50 B=20 C=120 D=40 | 9 | 12 | 13 | - | | | 260.75 € | | | 96521-415X2000 | E | PVC | 2000 | 1,0-2,0 | A=20 B=40 C=10 D=10 | 6,5 | - | 15 | 7 | | | 12.95 € | | | 96521-415X5000 | E | PVC | 5000 | 1,0-2,0 | A=20 B=40 C=10 D=10 | 6,5 | - | 15 | 7 | | | 29.21 € | | | 96521-415X10000 | E | PVC | 10000 | 1,0-2,0 | A=20 B=40 C=10 D=10 | 6,5 | - | 15 | 7 | | | 56.30 € | | | 96521-415X20000 | E | PVC | 20000 | 1,0-2,0 | A=20 B=40 C=10 D=10 | 6,5 | - | 15 | 7 | | | 110.49 € | | | 96521-415X50000 | E | PVC | 50000 | 1,0-2,0 | A=20 B=40 C=10 D=10 | 6,5 | - | 15 | 7 | | | 273.04 € | | | 96521-510X2000 | F | PVC | 2000 | 1,0-2,0 | A=20 B=15 C=30 D=30 | 7 | 9 | 10 | - | | | 11.05 € | | | 96521-510X5000 | F | PVC | 5000 | 1,0-2,0 | A=20 B=15 C=30 D=30 | 7 | 9 | 10 | - | | | 24.47 € | | | 96521-510X10000 | F | PVC | 10000 | 1,0-2,0 | A=20 B=15 C=30 D=30 | 7 | 9 | 10 | - | | | 46.81 € | | | 96521-510X20000 | F | PVC | 20000 | 1,0-2,0 | A=20 B=15 C=30 D=30 | 7 | 9 | 10 | - | | | 91.49 € | | | 96521-510X50000 | F | PVC | 50000 | 1,0-2,0 | A=20 B=15 C=30 D=30 | 7 | 9 | 10 | - | | | 225.55 € | | | 96521-615X2000 | G | EPDM | 2000 | 1,0-3,5 | A=200 B=80 C=200 D=200 | 11 | 22 | 15 | - | | | 13.37 € | | | 96521-615X5000 | G | EPDM | 5000 | 1,0-3,5 | A=200 B=80 C=200 D=200 | 11 | 22 | 15 | - | | | 30.33 € | | | 96521-615X10000 | G | EPDM | 10000 | 1,0-3,5 | A=200 B=80 C=200 D=200 | 11 | 22 | 15 | - | | | 58.56 € | | | 96521-615X20000 | G | EPDM | 20000 | 1,0-3,5 | A=200 B=80 C=200 D=200 | 11 | 22 | 15 | - | | | 110.45 € | | | 96521-615X50000 | G | EPDM | 50000 | 1,0-3,5 | A=200 B=80 C=200 D=200 | 11 | 22 | 15 | - | | | 273.11 € | | | 96521-712X2000 | H | EPDM | 2000 | 0,8-2,5 | A=40 B=40 C=100 D=60 | 8 | 9 | 12 | - | | | 12.55 € | | | 96521-712X5000 | H | EPDM | 5000 | 0,8-2,5 | A=40 B=40 C=100 D=60 | 8 | 9 | 12 | - | | | 28.24 € | | | 96521-712X10000 | H | EPDM | 10000 | 0,8-2,5 | A=40 B=40 C=100 D=60 | 8 | 9 | 12 | - | | | 54.41 € | | | 96521-712X20000 | H | EPDM | 20000 | 0,8-2,5 | A=40 B=40 C=100 D=60 | 8 | 9 | 12 | - | | | 102.45 € | | | 96521-712X50000 | H | EPDM | 50000 | 0,8-2,5 | A=40 B=40 C=100 D=60 | 8 | 9 | 12 | - | | | 253.14 € | | | 96521-821X2000 | I | PVC | 2000 | 1,0-4,0 | A=70 B=80 C=15 D=15 | 10 | - | 21 | 9 | | | 14.03 € | | | 96521-821X5000 | I | PVC | 5000 | 1,0-4,0 | A=70 B=80 C=15 D=15 | 10 | - | 21 | 9 | | | 31.96 € | | | 96521-821X10000 | I | PVC | 10000 | 1,0-4,0 | A=70 B=80 C=15 D=15 | 10 | - | 21 | 9 | | | 61.84 € | | | 96521-821X20000 | I | PVC | 20000 | 1,0-4,0 | A=70 B=80 C=15 D=15 | 10 | - | 21 | 9 | | | 116.73 € | | | 96521-821X50000 | I | PVC | 50000 | 1,0-4,0 | A=70 B=80 C=15 D=15 | 10 | - | 21 | 9 | | | 288.81 € | |
