Flat clamps with cam, Form C, without locating pin, with tension lever

04472_C

Flat clamps with cam, Form C, without locating pin, with tension...

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Clamping jaws Edge clamps Tension nuts and screws
        Flat clamps with cam

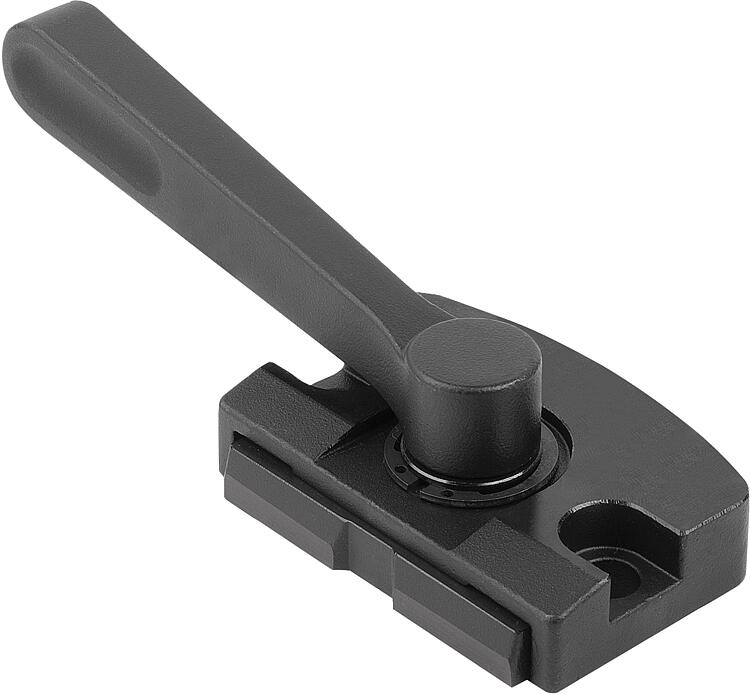

        Flat clamps with cam, Form C, without locating pin, with tension lever

Item description/product images

DescriptionProduct description:Form C without locating pin, with tension lever.Material:Carbon steel.Version:Black oxidised.Note:By Form C, the tension lever can be
user-friendly aligned in 30° increments
by loosening the grub screw.Assembly:See drawing (Form A).Advantages:- Compact and flat design
- Quick and easy clamping of componentsDrawing reference:

1) Clamping start position
2) Clamping end position
3) Grub screw

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04472_C Flat clamps with cam, Form C, without locating pin, with tension lever

Drawings

Flat clamps with cam, Form C, without locating pin, with tension lever

Item selection/filter

Order No.	Form	B	B1	B2	B3	D	D1	D2	H	H2	H3	H4	H5	H6	H7	L	L1	L2	R	Travel S	Hand force FH N	Clamping force kN	CAD	Acc.	Price	Order
04472-20600	C	70	60	12	55	8,2	19	M5x5	15	9	5	7	30	46	18	50	46	22	100	2	280	6			147.46 €
04472-20400	C	45	38	8	36	5,2	13	M4x4	10	6	3	5	20	30	12	33,5	30,5	15	63	1	170	4			125.79 €

Other items in this category

Flat clamps with cam, Form A, with locating pin

04472_A

Flat clamps with cam, Form A, with locating pin

Flat clamps with cam, Form B, without locating pin

04472_B

Flat clamps with cam, Form B, without locating pin
