Concentricity gauges max. Ø 35 mm

Concentricity gauges max. Ø 35 mm

go back

Item description/product images

DescriptionNote:Gauge unit suitable for measuring concentricity, run-out and perpendicularity.

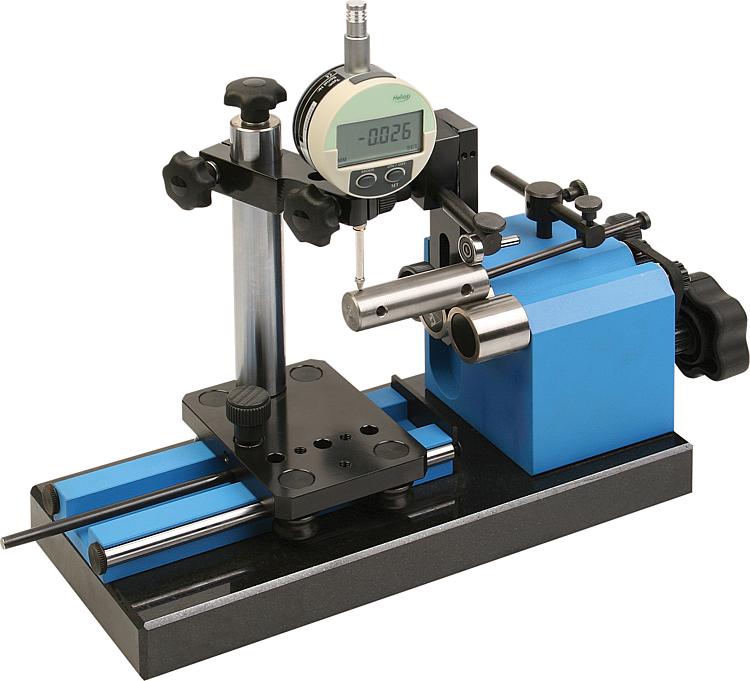

The robust design allows the unit to be used in the workshop and metrology room. A swivel contact roller simplifies positioning of the workpiece. The light sliding guides allow the dial gauges to be placed anywhere.
Technical data:Inspection range Ø 5 mm to Ø 35 mm
Roller spacing min. 29 mm.
Carriage travel max. 100 mm.
Contact roller thrust is adjustable.
Gear driven rollers.

Roller precision: parallelism and coaxialism of both rollers max. 2 µm.

Base plate granite: 300 mm x 130 mm x 25 mm
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 32501 Concentricity gauges max. Ø 35 mm 239 kB
 32501 Example 197 kB
 32500 Positions of measuring rollers 214 kB
 32500 Testing possibilities 136 kB
 32500 Shape and position tolerances 284 kB
