Clamping leversexternal thread, steel
06443

Clamping levers external thread, steel

go back

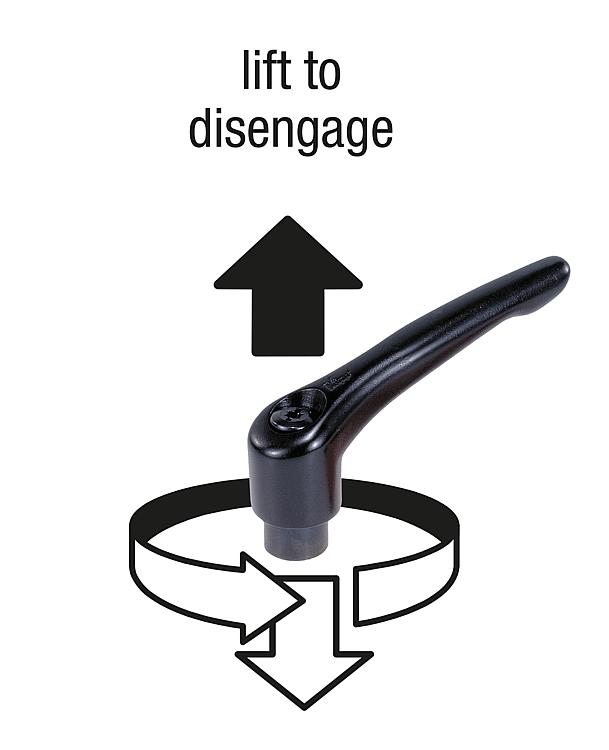

Item description/product images

DescriptionMaterial:Handle steel 1.0401.
All other steel parts grade 5.8.
Version:Handle powder-coated, fine-textured structure.
Steel parts black oxidised.
Note:Standard colours are:
black or ruby red RAL 3003.

Where L ≥ 60 mm the thread length is always 60 mm.

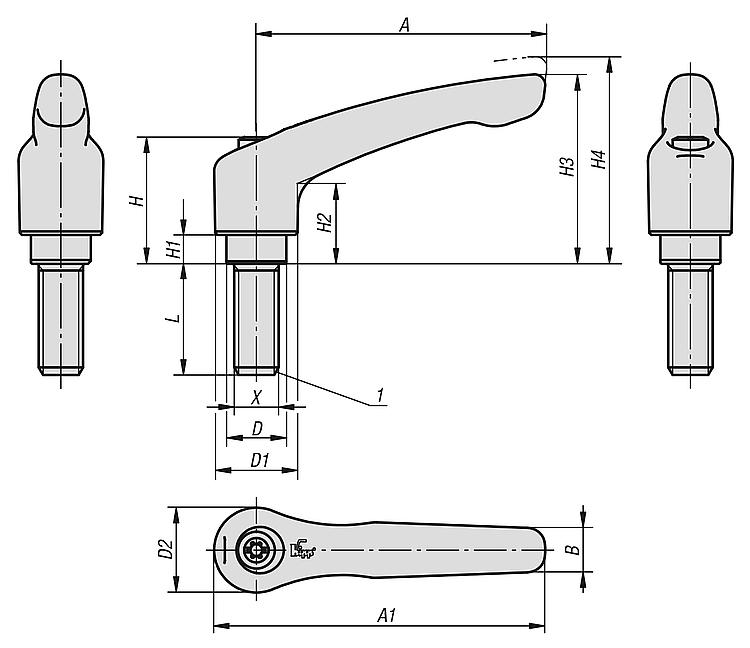

Drawing reference:
1) flat point DIN 78
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 06443 Clamping leversexternal thread, steel 250 kB

Drawings

Clamping leversexternal thread, steel

Overview of items (compressed)

Item selection/filter
Order No.ColourSizeXD

D1D2HH1H2H3H4AA1BNo. of
teeth
LCADAcc.PriceOrder
06443-1051X10black1M510131424,5414,53134404771610 7.08 €
06443-1051X15black1M510131424,5414,53134404771615 7.08 €
06443-1051X20black1M510131424,5414,53134404771620 7.08 €
06443-1051X25black1M510131424,5414,53134404771625 7.08 €
06443-1051X30black1M510131424,5414,53134404771630 7.08 €
06443-1051X35black1M510131424,5414,53134404771635 7.27 €
06443-1051X40black1M510131424,5414,53134404771640 7.27 €
06443-1051X45black1M510131424,5414,53134404771645 7.27 €
06443-1051X50black1M510131424,5414,53134404771650 7.27 €
06443-1061X10black1M610131424,5414,53134404771610 7.08 €
06443-1061X15black1M610131424,5414,53134404771615 7.08 €
06443-1061X20black1M610131424,5414,53134404771620 7.08 €
06443-1061X25black1M610131424,5414,53134404771625 7.08 €
06443-1061X30black1M610131424,5414,53134404771630 7.08 €
06443-1061X35black1M610131424,5414,53134404771635 7.27 €
06443-1061X40black1M610131424,5414,53134404771640 7.27 €
06443-1061X45black1M610131424,5414,53134404771645 7.27 €
06443-1061X50black1M610131424,5414,53134404771650 7.27 €
06443-2061X15black2M613,518,51928,56,517,542,545,56574,5102015 9.38 €
06443-2061X20black2M613,518,51928,56,517,542,545,56574,5102020 9.38 €
06443-2061X25black2M613,518,51928,56,517,542,545,56574,5102025 9.38 €
06443-2061X30black2M613,518,51928,56,517,542,545,56574,5102030 9.38 €
06443-2061X35black2M613,518,51928,56,517,542,545,56574,5102035 9.86 €
06443-2061X40black2M613,518,51928,56,517,542,545,56574,5102040 9.86 €
06443-2061X45black2M613,518,51928,56,517,542,545,56574,5102045 9.86 €
06443-2061X50black2M613,518,51928,56,517,542,545,56574,5102050 9.86 €
06443-2061X55black2M613,518,51928,56,517,542,545,56574,5102055 9.86 €
06443-2061X60black2M613,518,51928,56,517,542,545,56574,5102060 9.86 €
06443-2081X15black2M813,518,51928,56,517,542,545,56574,5102015 9.38 €
06443-2081X20black2M813,518,51928,56,517,542,545,56574,5102020 9.38 €
06443-2081X25black2M813,518,51928,56,517,542,545,56574,5102025 9.38 €
06443-2081X30black2M813,518,51928,56,517,542,545,56574,5102030 9.38 €
06443-2081X35black2M813,518,51928,56,517,542,545,56574,5102035 9.86 €
06443-2081X40black2M813,518,51928,56,517,542,545,56574,5102040 9.86 €
06443-2081X45black2M813,518,51928,56,517,542,545,56574,5102045 9.86 €
06443-2081X50black2M813,518,51928,56,517,542,545,56574,5102050 9.86 €
06443-2081X55black2M813,518,51928,56,517,542,545,56574,5102055 9.86 €
06443-2081X60black2M813,518,51928,56,517,542,545,56574,5102060 9.86 €
06443-2101X15black2M1013,518,51928,56,517,542,545,56574,5102015 9.38 €
06443-2101X20black2M1013,518,51928,56,517,542,545,56574,5102020 9.38 €
06443-2101X25black2M1013,518,51928,56,517,542,545,56574,5102025 9.38 €
06443-2101X30black2M1013,518,51928,56,517,542,545,56574,5102030 9.38 €
06443-2101X35black2M1013,518,51928,56,517,542,545,56574,5102035 9.86 €
06443-2101X40black2M1013,518,51928,56,517,542,545,56574,5102040 9.86 €
06443-2101X45black2M1013,518,51928,56,517,542,545,56574,5102045 9.86 €
06443-2101X50black2M1013,518,51928,56,517,542,545,56574,5102050 9.86 €
06443-2101X55black2M1013,518,51928,56,517,542,545,56574,5102055 9.86 €
06443-2101X60black2M1013,518,51928,56,517,542,545,56574,5102060 9.86 €
06443-3081X15black3M816212237102454,558,58091112215 11.47 €
06443-3081X20black3M816212237102454,558,58091112220 11.47 €
06443-3081X25black3M816212237102454,558,58091112225 11.47 €
06443-3081X30black3M816212237102454,558,58091112230 11.47 €
06443-3081X35black3M816212237102454,558,58091112235 11.96 €
06443-3081X40black3M816212237102454,558,58091112240 11.96 €
06443-3081X45black3M816212237102454,558,58091112245 11.96 €
06443-3081X50black3M816212237102454,558,58091112250 11.96 €
06443-3081X55black3M816212237102454,558,58091112255 11.96 €
06443-3081X60black3M816212237102454,558,58091112260 11.96 €
06443-3101X15black3M1016212237102454,558,58091112215 11.47 €
06443-3101X20black3M1016212237102454,558,58091112220 11.47 €
06443-3101X25black3M1016212237102454,558,58091112225 11.47 €
06443-3101X30black3M1016212237102454,558,58091112230 11.47 €
06443-3101X35black3M1016212237102454,558,58091112235 11.96 €
06443-3101X40black3M1016212237102454,558,58091112240 11.96 €
06443-3101X45black3M1016212237102454,558,58091112245 11.96 €
06443-3101X50black3M1016212237102454,558,58091112250 11.96 €
06443-3101X55black3M1016212237102454,558,58091112255 11.96 €
06443-3101X60black3M1016212237102454,558,58091112260 11.96 €
06443-4101X20black4M10192727,54310276367,595109132420 14.65 €
06443-4101X25black4M10192727,54310276367,595109132425 14.65 €
06443-4101X30black4M10192727,54310276367,595109132430 14.65 €
06443-4101X35black4M10192727,54310276367,595109132435 15.50 €
06443-4101X40black4M10192727,54310276367,595109132440 15.50 €
06443-4101X45black4M10192727,54310276367,595109132445 15.50 €
06443-4101X50black4M10192727,54310276367,595109132450 15.50 €
06443-4101X55black4M10192727,54310276367,595109132455 15.50 €
06443-4101X60black4M10192727,54310276367,595109132460 15.50 €
06443-4101X70black4M10192727,54310276367,595109132470 18.27 €
06443-4101X80black4M10192727,54310276367,595109132480 18.27 €
06443-4101X90black4M10192727,54310276367,595109132490 18.27 €
06443-4121X20black4M12192727,54310276367,595109132420 14.65 €
06443-4121X25black4M12192727,54310276367,595109132425 14.65 €
06443-4121X30black4M12192727,54310276367,595109132430 14.65 €
06443-4121X35black4M12192727,54310276367,595109132435 15.50 €
06443-4121X40black4M12192727,54310276367,595109132440 15.50 €
06443-4121X45black4M12192727,54310276367,595109132445 15.50 €
06443-4121X50black4M12192727,54310276367,595109132450 15.50 €
06443-4121X55black4M12192727,54310276367,595109132455 15.50 €
06443-4121X60black4M12192727,54310276367,595109132460 15.50 €
06443-4121X70black4M12192727,54310276367,595109132470 18.27 €
06443-4121X80black4M12192727,54310276367,595109132480 18.27 €
06443-4121X90black4M12192727,54310276367,595109132490 18.27 €
06443-5121X25black5M12233132491231,57377,5110126152625 23.16 €
06443-5121X30black5M12233132491231,57377,5110126152630 23.16 €
06443-5121X35black5M12233132491231,57377,5110126152635 24.20 €
06443-5121X40black5M12233132491231,57377,5110126152640 24.20 €
06443-5121X45black5M12233132491231,57377,5110126152645 24.20 €
06443-5121X50black5M12233132491231,57377,5110126152650 24.20 €
06443-5121X55black5M12233132491231,57377,5110126152655 24.20 €
06443-5121X60black5M12233132491231,57377,5110126152660 24.20 €
06443-5121X70black5M12233132491231,57377,5110126152670 25.40 €
06443-5121X80black5M12233132491231,57377,5110126152680 25.40 €
06443-5121X90black5M12233132491231,57377,5110126152690 25.40 €
06443-5161X25black5M16233132491231,57377,5110126152625 23.16 €
06443-5161X30black5M16233132491231,57377,5110126152630 23.16 €
06443-5161X35black5M16233132491231,57377,5110126152635 24.20 €
06443-5161X40black5M16233132491231,57377,5110126152640 24.20 €
06443-5161X45black5M16233132491231,57377,5110126152645 24.20 €
06443-5161X50black5M16233132491231,57377,5110126152650 24.20 €
06443-5161X55black5M16233132491231,57377,5110126152655 24.20 €
06443-5161X60black5M16233132491231,57377,5110126152660 24.20 €
06443-5161X70black5M16233132491231,57377,5110126152670 25.40 €
06443-5161X80black5M16233132491231,57377,5110126152680 25.40 €
06443-5161X90black5M16233132491231,57377,5110126152690 25.40 €
06443-10527X10ruby red1M510131424,5414,53134404771610 7.08 €
06443-10527X15ruby red1M510131424,5414,53134404771615 7.08 €
06443-10527X20ruby red1M510131424,5414,53134404771620 7.08 €
06443-10527X25ruby red1M510131424,5414,53134404771625 7.08 €
06443-10527X30ruby red1M510131424,5414,53134404771630 7.08 €
06443-10527X35ruby red1M510131424,5414,53134404771635 7.27 €
06443-10527X40ruby red1M510131424,5414,53134404771640 7.27 €
06443-10527X45ruby red1M510131424,5414,53134404771645 7.27 €
06443-10527X50ruby red1M510131424,5414,53134404771650 7.27 €
06443-10627X10ruby red1M610131424,5414,53134404771610 7.08 €
06443-10627X15ruby red1M610131424,5414,53134404771615 7.08 €
06443-10627X20ruby red1M610131424,5414,53134404771620 7.08 €
06443-10627X25ruby red1M610131424,5414,53134404771625 7.08 €
06443-10627X30ruby red1M610131424,5414,53134404771630 7.08 €
06443-10627X35ruby red1M610131424,5414,53134404771635 7.27 €
06443-10627X40ruby red1M610131424,5414,53134404771640 7.27 €
06443-10627X45ruby red1M610131424,5414,53134404771645 7.27 €
06443-10627X50ruby red1M610131424,5414,53134404771650 7.27 €
06443-20627X15ruby red2M613,518,51928,56,517,542,545,56574,5102015 9.38 €
06443-20627X20ruby red2M613,518,51928,56,517,542,545,56574,5102020 9.38 €
06443-20627X25ruby red2M613,518,51928,56,517,542,545,56574,5102025 9.38 €
06443-20627X30ruby red2M613,518,51928,56,517,542,545,56574,5102030 9.38 €
06443-20627X35ruby red2M613,518,51928,56,517,542,545,56574,5102035 9.86 €
06443-20627X40ruby red2M613,518,51928,56,517,542,545,56574,5102040 9.86 €
06443-20627X45ruby red2M613,518,51928,56,517,542,545,56574,5102045 9.86 €
06443-20627X50ruby red2M613,518,51928,56,517,542,545,56574,5102050 9.86 €
06443-20627X55ruby red2M613,518,51928,56,517,542,545,56574,5102055 9.86 €
06443-20627X60ruby red2M613,518,51928,56,517,542,545,56574,5102060 9.86 €
06443-20827X15ruby red2M813,518,51928,56,517,542,545,56574,5102015 9.38 €
06443-20827X20ruby red2M813,518,51928,56,517,542,545,56574,5102020 9.38 €
06443-20827X25ruby red2M813,518,51928,56,517,542,545,56574,5102025 9.38 €
06443-20827X30ruby red2M813,518,51928,56,517,542,545,56574,5102030 9.38 €
06443-20827X35ruby red2M813,518,51928,56,517,542,545,56574,5102035 9.86 €
06443-20827X40ruby red2M813,518,51928,56,517,542,545,56574,5102040 9.86 €
06443-20827X45ruby red2M813,518,51928,56,517,542,545,56574,5102045 9.86 €
06443-20827X50ruby red2M813,518,51928,56,517,542,545,56574,5102050 9.86 €
06443-20827X55ruby red2M813,518,51928,56,517,542,545,56574,5102055 9.86 €
06443-20827X60ruby red2M813,518,51928,56,517,542,545,56574,5102060 9.86 €
06443-21027X15ruby red2M1013,518,51928,56,517,542,545,56574,5102015 9.38 €
06443-21027X20ruby red2M1013,518,51928,56,517,542,545,56574,5102020 9.38 €
06443-21027X25ruby red2M1013,518,51928,56,517,542,545,56574,5102025 9.38 €
06443-21027X30ruby red2M1013,518,51928,56,517,542,545,56574,5102030 9.38 €
06443-21027X35ruby red2M1013,518,51928,56,517,542,545,56574,5102035 9.86 €
06443-21027X40ruby red2M1013,518,51928,56,517,542,545,56574,5102040 9.86 €
06443-21027X45ruby red2M1013,518,51928,56,517,542,545,56574,5102045 9.86 €
06443-21027X50ruby red2M1013,518,51928,56,517,542,545,56574,5102050 9.86 €
06443-21027X55ruby red2M1013,518,51928,56,517,542,545,56574,5102055 9.86 €
06443-21027X60ruby red2M1013,518,51928,56,517,542,545,56574,5102060 9.86 €
06443-30827X15ruby red3M816212237102454,558,58091112215 11.47 €
06443-30827X20ruby red3M816212237102454,558,58091112220 11.47 €
06443-30827X25ruby red3M816212237102454,558,58091112225 11.47 €
06443-30827X30ruby red3M816212237102454,558,58091112230 11.47 €
06443-30827X35ruby red3M816212237102454,558,58091112235 11.96 €
06443-30827X40ruby red3M816212237102454,558,58091112240 11.96 €
06443-30827X45ruby red3M816212237102454,558,58091112245 11.96 €
06443-30827X50ruby red3M816212237102454,558,58091112250 11.96 €
06443-30827X55ruby red3M816212237102454,558,58091112255 11.96 €
06443-30827X60ruby red3M816212237102454,558,58091112260 11.96 €
06443-31027X15ruby red3M1016212237102454,558,58091112215 11.47 €
06443-31027X20ruby red3M1016212237102454,558,58091112220 11.47 €
06443-31027X25ruby red3M1016212237102454,558,58091112225 11.47 €
06443-31027X30ruby red3M1016212237102454,558,58091112230 11.47 €
06443-31027X35ruby red3M1016212237102454,558,58091112235 11.96 €
06443-31027X40ruby red3M1016212237102454,558,58091112240 11.96 €
06443-31027X45ruby red3M1016212237102454,558,58091112245 11.96 €
06443-31027X50ruby red3M1016212237102454,558,58091112250 11.96 €
06443-31027X55ruby red3M1016212237102454,558,58091112255 11.96 €
06443-31027X60ruby red3M1016212237102454,558,58091112260 11.96 €
06443-41027X20ruby red4M10192727,54310276367,595109132420 14.65 €
06443-41027X25ruby red4M10192727,54310276367,595109132425 14.65 €
06443-41027X30ruby red4M10192727,54310276367,595109132430 14.65 €
06443-41027X35ruby red4M10192727,54310276367,595109132435 15.50 €
06443-41027X40ruby red4M10192727,54310276367,595109132440 15.50 €
06443-41027X45ruby red4M10192727,54310276367,595109132445 15.50 €
06443-41027X50ruby red4M10192727,54310276367,595109132450 15.50 €
06443-41027X55ruby red4M10192727,54310276367,595109132455 15.50 €
06443-41027X60ruby red4M10192727,54310276367,595109132460 15.50 €
06443-41027X70ruby red4M10192727,54310276367,595109132470 18.27 €
06443-41027X80ruby red4M10192727,54310276367,595109132480 18.27 €
06443-41027X90ruby red4M10192727,54310276367,595109132490 18.27 €
06443-41227X20ruby red4M12192727,54310276367,595109132420 14.65 €
06443-41227X25ruby red4M12192727,54310276367,595109132425 14.65 €
06443-41227X30ruby red4M12192727,54310276367,595109132430 14.65 €
06443-41227X35ruby red4M12192727,54310276367,595109132435 15.50 €
06443-41227X40ruby red4M12192727,54310276367,595109132440 15.50 €
06443-41227X45ruby red4M12192727,54310276367,595109132445 15.50 €
06443-41227X50ruby red4M12192727,54310276367,595109132450 15.50 €
06443-41227X55ruby red4M12192727,54310276367,595109132455 15.50 €
06443-41227X60ruby red4M12192727,54310276367,595109132460 15.50 €
06443-41227X70ruby red4M12192727,54310276367,595109132470 18.27 €
06443-41227X80ruby red4M12192727,54310276367,595109132480 18.27 €
06443-41227X90ruby red4M12192727,54310276367,595109132490 18.27 €
06443-51227X25ruby red5M12233132491231,57377,5110126152625 23.16 €
06443-51227X30ruby red5M12233132491231,57377,5110126152630 23.16 €
06443-51227X35ruby red5M12233132491231,57377,5110126152635 24.20 €
06443-51227X40ruby red5M12233132491231,57377,5110126152640 24.20 €
06443-51227X45ruby red5M12233132491231,57377,5110126152645 24.20 €
06443-51227X50ruby red5M12233132491231,57377,5110126152650 24.20 €
06443-51227X55ruby red5M12233132491231,57377,5110126152655 24.20 €
06443-51227X60ruby red5M12233132491231,57377,5110126152660 24.20 €
06443-51227X70ruby red5M12233132491231,57377,5110126152670 25.40 €
06443-51227X80ruby red5M12233132491231,57377,5110126152680 25.40 €
06443-51227X90ruby red5M12233132491231,57377,5110126152690 25.40 €
06443-51627X25ruby red5M16233132491231,57377,5110126152625 23.16 €
06443-51627X30ruby red5M16233132491231,57377,5110126152630 23.16 €
06443-51627X35ruby red5M16233132491231,57377,5110126152635 24.20 €
06443-51627X40ruby red5M16233132491231,57377,5110126152640 24.20 €
06443-51627X45ruby red5M16233132491231,57377,5110126152645 24.20 €
06443-51627X50ruby red5M16233132491231,57377,5110126152650 24.20 €
06443-51627X55ruby red5M16233132491231,57377,5110126152655 24.20 €
06443-51627X60ruby red5M16233132491231,57377,5110126152660 24.20 €
06443-51627X70ruby red5M16233132491231,57377,5110126152670 25.40 €
06443-51627X80ruby red5M16233132491231,57377,5110126152680 25.40 €
06443-51627X90ruby red5M16233132491231,57377,5110126152690 25.40 €
My norelemE-mailPassword
Shopping cart
Number of items: 0
Amount: 0.00
shopping cart
Quick order / Check availabilityOrder article directly or check availability.display
CallbackDo you have any questions? We will call you back.display
United States
Sitemap Print Recommended Newsletter Top
Copyright © 2020 norelem. All rights reserved. Tel. +49 (0) 71 45/206-44 to 45 · Fax +49 (0) 71 45/206-83
