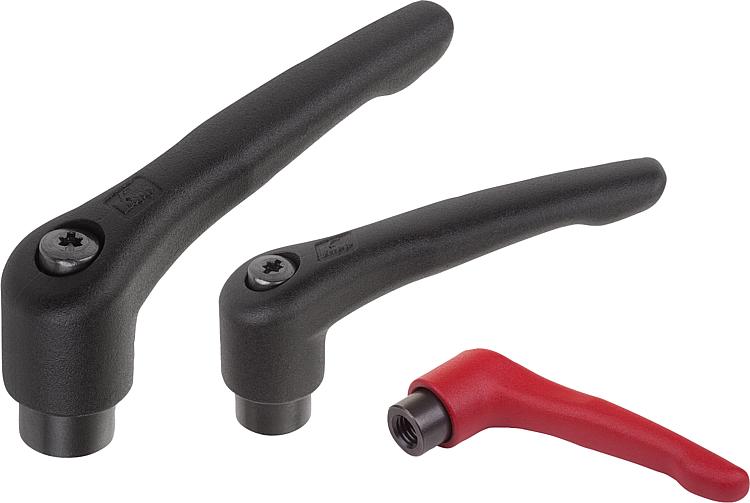

        Clamping levers internal thread, steel

Item description/product images

DescriptionMaterial:Handle steel 1.0401.
All other steel parts grade 5.8.Version:Handle powder-coated, fine-textured structure.
Steel parts black oxidised.Note:Standard colours are:
black or ruby red RAL 3003.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06442 Clamping levers internal thread, steel

212 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Main colour	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06442-1041	black	1	M4	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	7.81 €
06442-1051	black	1	M5	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	7.81 €
06442-1061	black	1	M6	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	7.81 €
06442-2061	black	2	M6	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	10	20	10.53 €
06442-2081	black	2	M8	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	10	20	10.53 €
06442-3081	black	3	M8	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	12.62 €
06442-3101	black	3	M10	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	12.62 €
06442-4101	black	4	M10	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	16.25 €
06442-4121	black	4	M12	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	16.25 €
06442-5121	black	5	M12	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25.62 €
06442-5161	black	5	M16	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25.62 €
06442-10427	ruby red RAL3003	1	M4	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	7.81 €
06442-10527	ruby red RAL3003	1	M5	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	7.81 €
06442-10627	ruby red RAL3003	1	M6	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	7.81 €
06442-20627	ruby red RAL3003	2	M6	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	10	20	10.53 €
06442-20827	ruby red RAL3003	2	M8	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	10	20	10.53 €
06442-30827	ruby red RAL3003	3	M8	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	12.62 €
06442-31027	ruby red RAL3003	3	M10	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	12.62 €
06442-41027	ruby red RAL3003	4	M10	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	16.25 €
06442-41227	ruby red RAL3003	4	M12	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	16.25 €
06442-51227	ruby red RAL3003	5	M12	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25.62 €
06442-51627	ruby red RAL3003	5	M16	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25.62 €
