Item description/product images

Show/filter all items
DescriptionMaterial:Sleeve and spring plastic
Thrust pin steel, stainless steel or POM
Version:Thrust pin (steel) case-hardened and black oxidised.
Thrust pin (stainless steel) bright
Thrust pin (POM) white.
Note:Lateral spring plungers are used for positioning, holding and fastening workpieces in applications where there is increased presence of dirt.
For example: painting and sandblasting.

Calculation dimension X:
Y > = L1-D1/2, therefore X=D1/2-S
Y < L1-D1/2, therefore X =D1/2-S-((L1-D1/2-Y)*0,123)

Light spring force = blue spring
Standard spring force = red spring
Strong spring force = green spring
Assembly:The sleeve is pressed into the hole.
It is recommended to moisten the sleeve before assembly.

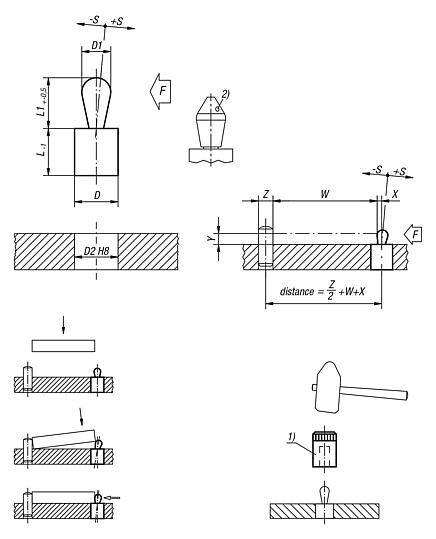

Drawing reference:
1) Assembly tool
2) Some sizes have a different pin form
Y = workpiece height
W = workpiece length
X = coordinate dimension
Z = stop diameter
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 03330-01 Lateral spring plungerswith plastic spring 169 kB

Drawings (total overview)

Lateral spring plungerswith plastic spring

Lateral spring plungers with plastic spring
steel thrust pin

More information

Drawings

Lateral spring plungers with plastic spring
steel thrust pin

Item selection/filter

Order No.Version 1Version 2D

D1D2LL1±SF
ca.N
Order No.
assembly
tool
CADAcc.PriceOrder
03330-01-100307light spring forcedifferent pin form635,973,70,41003330-01-03 4.53 €
03330-01-100409light spring force-847,995,20,61503330-01-04 4.75 €
03330-01-100509light spring force-1059,997,30,83003330-01-05 4.91 €
03330-01-100609light spring force-1069,9910,312003330-01-05 5.28 €
03330-01-200307standard spring forcedifferent pin form635,973,70,42003330-01-03 4.53 €
03330-01-200409standard spring force-847,995,20,63003330-01-04 4.75 €
03330-01-200509standard spring force-1059,997,30,86003330-01-05 4.91 €
03330-01-200609standard spring force-1069,9910,313003330-01-05 5.28 €
03330-01-200813standard spring force-12811,91313,31,25003330-01-08 5.70 €
03330-01-201016standard spring force-161015,91616,91,68003330-01-10 6.18 €
03330-01-300509intensified spring force-1059,997,30,89003330-01-05 4.91 €
03330-01-300609intensified spring force-1069,9910,316003330-01-05 5.28 €
03330-01-300813intensified spring force-12811,91313,31,210003330-01-08 5.70 €
03330-01-301016intensified spring force-161015,91616,91,616003330-01-10 6.18 €

Lateral spring plungers with plastic spring, stainless steel thrust pin

More information

Drawings

Lateral spring plungers with plastic spring, stainless steel thrust pin

Item selection/filter

Order No.Version 1Version 2D

D1D2LL1±SF
ca.N
Order No.
assembly
tool
CADAcc.PriceOrder
03330-01-110307light spring forcedifferent pin form632,973,70,41003330-01-03 5.12 €
03330-01-110409light spring force-847,995,20,61503330-01-04 5.34 €
03330-01-110509light spring force-1059,997,30,83003330-01-05 5.87 €
03330-01-110609light spring force-1069,9910,312003330-01-05 6.33 €
03330-01-210307standard spring forcedifferent pin form635,973,70,42003330-01-03 5.12 €
03330-01-210409standard spring force-847,995,20,63003330-01-04 5.34 €
03330-01-210509standard spring force-1059,997,30,86003330-01-05 5.87 €
03330-01-210609standard spring force-1069,9910,313003330-01-05 6.33 €
03330-01-210813standard spring force-12811,91313,31,25003330-01-08 6.87 €
03330-01-211016standard spring force-161015,91616,91,68003330-01-10 7.23 €
03330-01-310509intensified spring force-1059,997,30,89003330-01-05 5.87 €
03330-01-310609intensified spring force-1069,9910,316003330-01-05 6.33 €
03330-01-310813intensified spring force-12811,91313,21,210003330-01-08 6.87 €
03330-01-311016intensified spring force-161015,91616,61,616003330-01-10 7.23 €

Lateral spring plungers with plastic spring, POM thrust pin

More information

Drawings

Lateral spring plungers with plastic spring, POM thrust pin

Item selection/filter

Order No.Version 1Version 2D

D1D2LL1±SF
ca.N
Order No.
assembly
tool
CADAcc.PriceOrder
03330-01-120307light spring forcedifferent pin form635,973,70,41003330-01-03 4.53 €
03330-01-120409light spring force-847,995,20,61503330-01-04 4.75 €
03330-01-120509light spring force-1059,997,30,83003330-01-05 4.91 €
03330-01-120609light spring force-1069,9910,312003330-01-05 5.28 €
03330-01-220307standard spring forcedifferent pin form635,973,70,42003330-01-03 4.53 €
03330-01-220409standard spring force-847,995,20,63003330-01-04 4.75 €
03330-01-220509standard spring force-1059,997,30,86003330-01-05 4.91 €
03330-01-220609standard spring force-1069,9910,313003330-01-05 5.28 €
03330-01-220813standard spring force-12811,91313,31,25003330-01-08 5.70 €
03330-01-221016standard spring force-161015,91616,91,68003330-01-10 6.18 €
03330-01-320509intensified spring force-1059,997,30,89003330-01-05 4.91 €
03330-01-320609intensified spring force-1069,9910,316003330-01-05 5.28 €
03330-01-320813intensified spring force-12811,91313,31,210003330-01-08 5.70 €
03330-01-321016intensified spring force-161015,91616,91,616003330-01-10 6.18 €
