        Rest pads, Form C serrated face

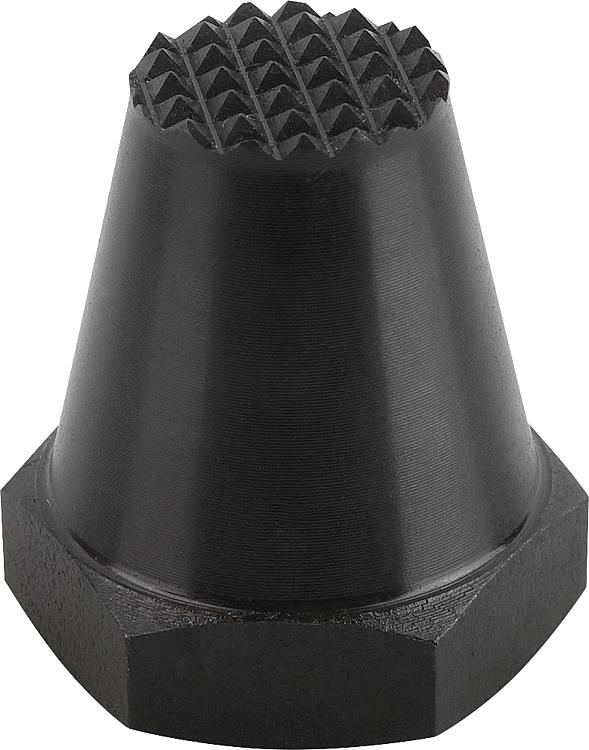

Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.Note:Rest pads are for supporting machined and non-machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.
Studs or grub screws can be screwed and glued into the tapped hole D to make a rest pad with external thread.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02028_C Rest pads, Form C serrated face

202 kB

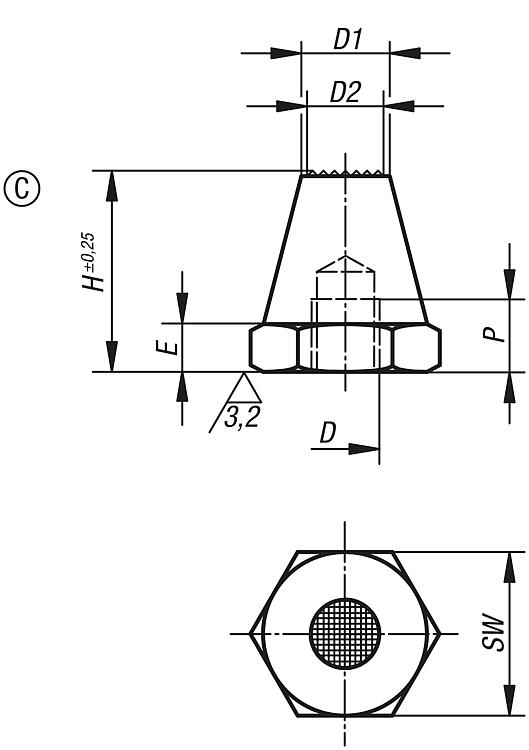

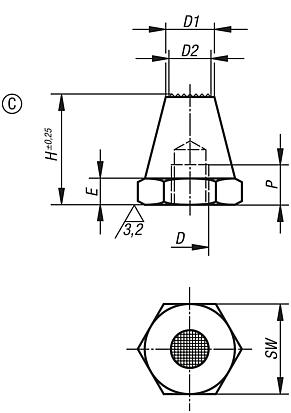

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	E	H	P	SW	Price
02028-306012	C	M6	6	5	3	12,5	4	11	14.51 €
02028-306025	C	M6	6	5	3	25	7	11	15.10 €
02028-308015	C	M8	8	6	4	15	6	13	15.05 €
02028-308030	C	M8	8	6	4	30	9	13	15.87 €
02028-310020	C	M10	10	8	5	20	9	17	17.65 €
02028-310040	C	M10	10	8	5	40	13	17	18.39 €
02028-312025	C	M12	12	9,5	6	25	11	19	16.99 €
02028-312050	C	M12	12	9,5	6	50	16	19	18.54 €
02028-316030	C	M16	16	13	8	30	12	24	37.51 €
02028-316060	C	M16	16	13	8	60	20	24	43.82 €
