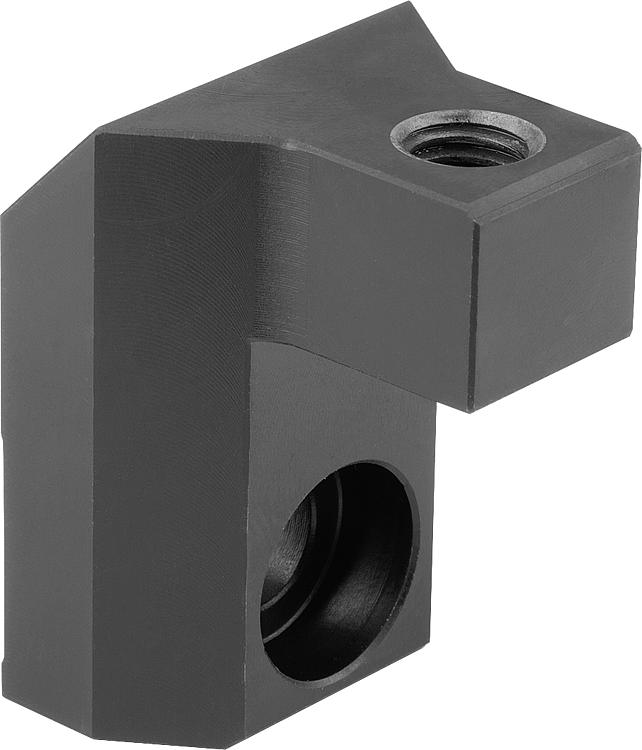

04422_DUpper exchange clamping jaw, Form D |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Nitrided and black oxidised.Note:The clamping jaws can be used for floating clamps to increase the clamping range. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 1 | B | B1 | D
| D1 | H1 | H2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| 04422-90029 | D | upper jaw | 28 | 15 | M8 | 4,5 | 29,5 | 16,5 | 31,5 | 24,5 | 8 | 16 |  | | 124.59 € | | | 04422-90040 | D | upper jaw | 28 | 15 | M8 | 4,5 | 40,5 | 27,5 | 31,5 | 24,5 | 8 | 16 | | | 145.12 € | |
