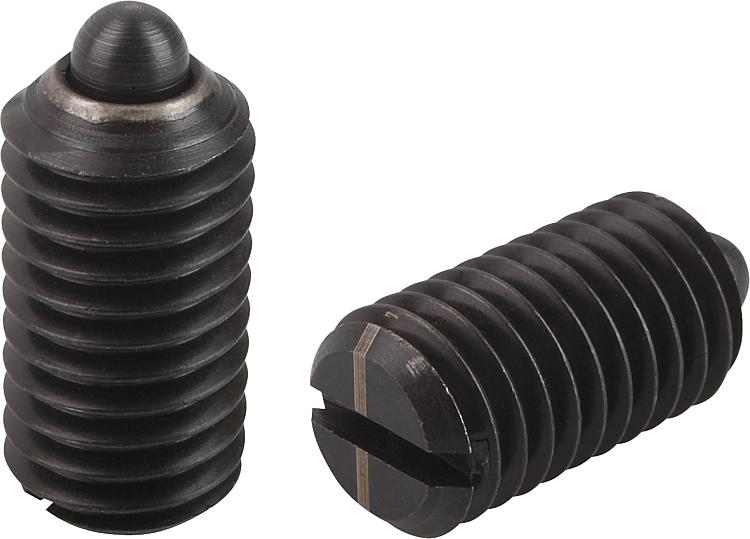

03020_LFSpring plungers with slot and thrust pin, steel, light spring... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.
Thrust pin hardened.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | H | L | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03020-104 | M4 | 1,8 | 1,5 | 9 | 0,6 | 3 | 10 |  | | 1.12 € | | | 03020-105 | M5 | 2,4 | 2 | 12 | 0,8 | 3 | 10 | | | 1.12 € | | | 03020-106 | M6 | 2,7 | 2 | 14 | 1 | 4 | 10 | | | 1.18 € | | | 03020-108 | M8 | 4 | 2 | 16 | 1,2 | 7 | 15 | | | 1.41 € | | | 03020-110 | M10 | 4,5 | 2,5 | 19 | 1,6 | 9 | 16 | | | 1.46 € | | | 03020-112 | M12 | 6 | 3,5 | 22 | 2 | 14 | 26 | | | 2.09 € | | | 03020-116 | M16 | 8,5 | 4,5 | 24 | 2,5 | 22 | 50 | | | 2.81 € | | | 03020-120 | M20 | 10 | 6,5 | 30 | 2,5 | 30 | 60 | | | 4.39 € | |
