86091-02Dimmer operating unit 24V DC with M12 A-coded plug/socket |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing ABS plastic.Version:Auxiliary device mounted via slotted holes.Note:Operating unit for external control of an LED lamp. Operated via a rotary potentiometer and an on/off switch. The rotary potentiometer enables an LED lamp to be infinitely dimmed from 100 to 10%. It is switched on and off with a switch.
Input: M12x1 A-coded connector (plug).
Output: M12x1 A-coded connector (socket).
This operating unit is ideal for controlling dimmable 24V DC lamps with an A-coded M12 connection (except RGB models) and supports a maximum output of 144 W.
Certificates / Standards met:

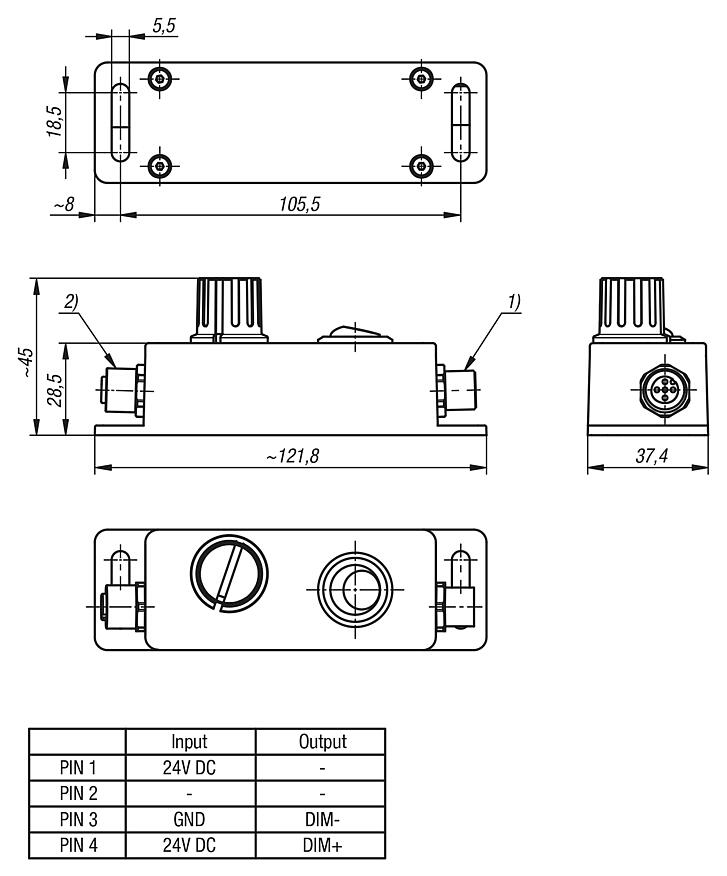

CE, UKCA.Temperature range:-20 °C to +50 °C.Assembly:The fastening straps enable direct attachment to T-slot profiles or panels.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Operating voltage
V DC | Transit voltage
V DC | Power
max.
W | Current load
max.
mA | Safety rating | Protection class | CAD | Acc. | Price | Order |
|---|
| 86091-02-1 | 24+/-10% | 24 | 144 | 6000 | IP54 | III |  | | 53.87 € | |
