Swivel arms with low-friction guide

80855-11

Swivel arms with low-friction guide

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains

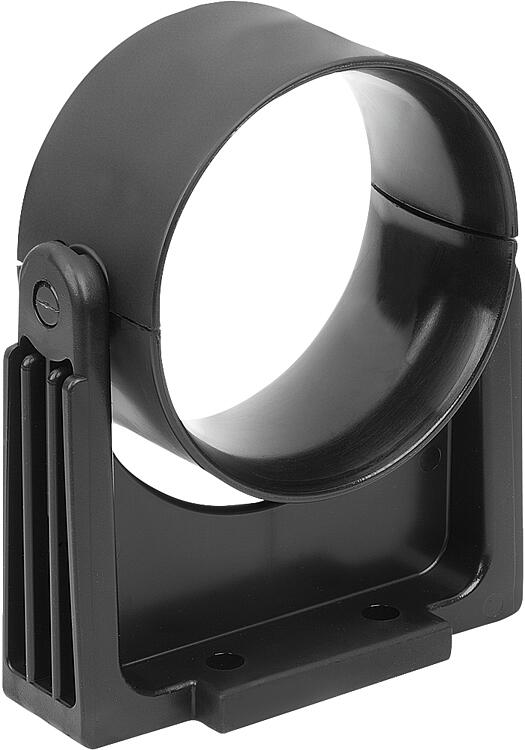

        Swivel arms with low-friction guide

Item description/product images

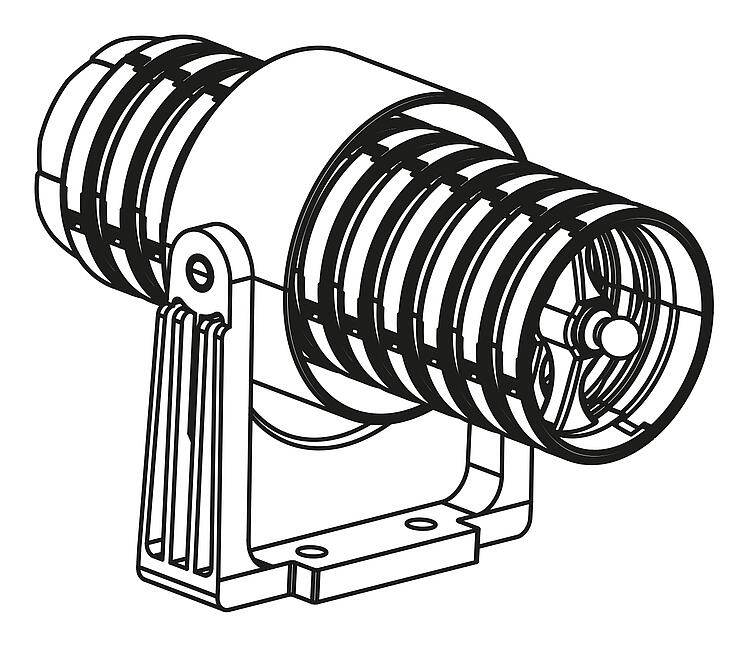

DescriptionMaterial:Polyamide PA6.Version:black.Note:The low-friction cable guide enables the energy chain/corrugated pipe to run smoothly and evenly through the guide. The swivel arms offer more freedom of movement when guiding the energy chains.Temperature range:-45 °C to +105 °C (briefly up to +150 °C).Assembly:The swivel arms are usually mounted on a rotary flange and offer additional freedom of movement compared to just using a rotary flange.Accessory:Rotary flange 80855-10.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

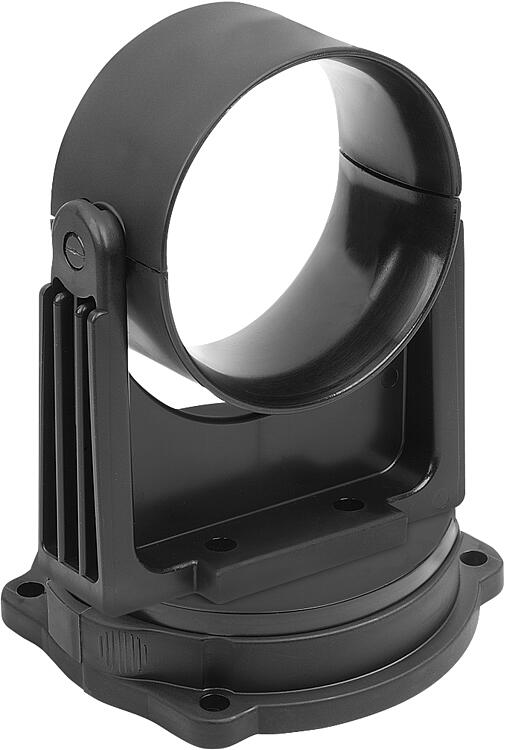

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-11 Swivel arms with low-friction guide

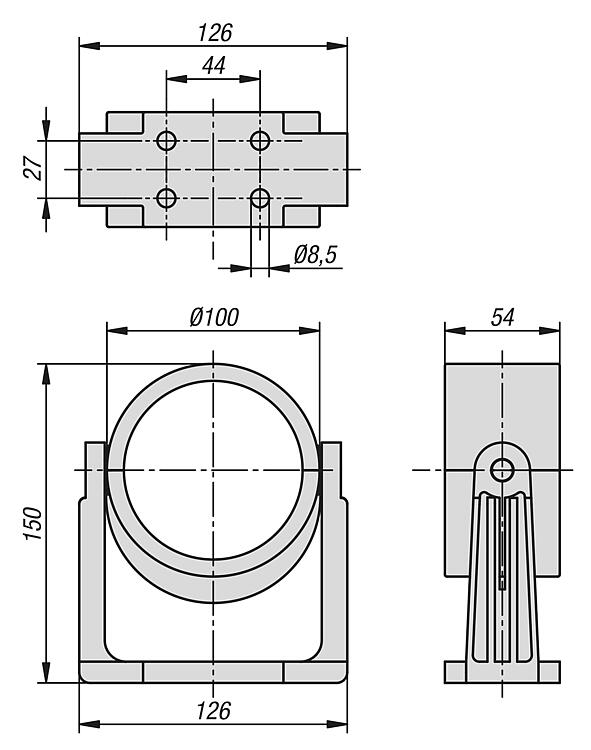

Drawings

Swivel arms with low-friction guide

Item selection/filter

Order No.	Nominal size	CAD	Acc.	Price	Order
80855-11-0701	70			60.55 €
