Connecting elements

80855-06

Connecting elements

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains
        Connecting elements

Item description/product images

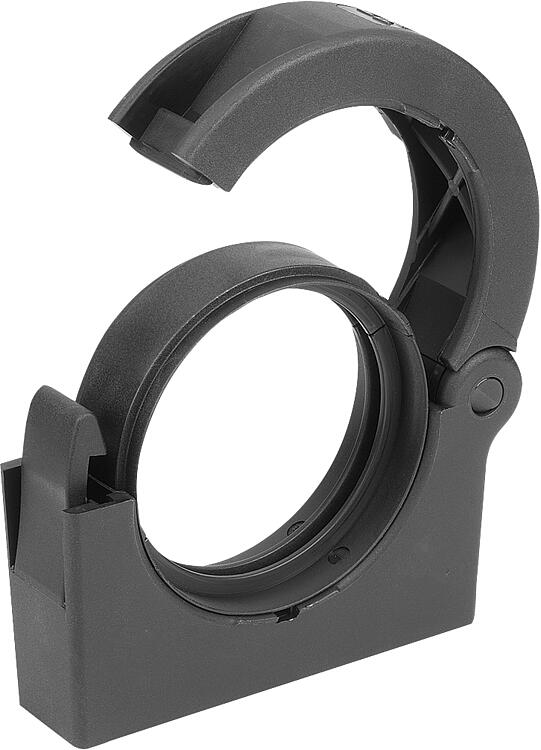

DescriptionMaterial:Polyamide PA6.Version:black.Note:Connecting elements for holding and fixating energy chains or a corrugated pipes.

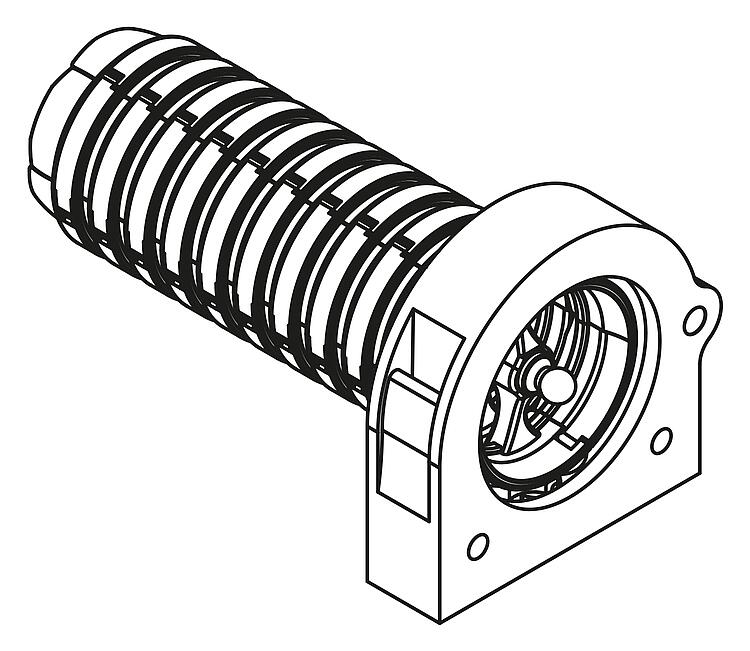

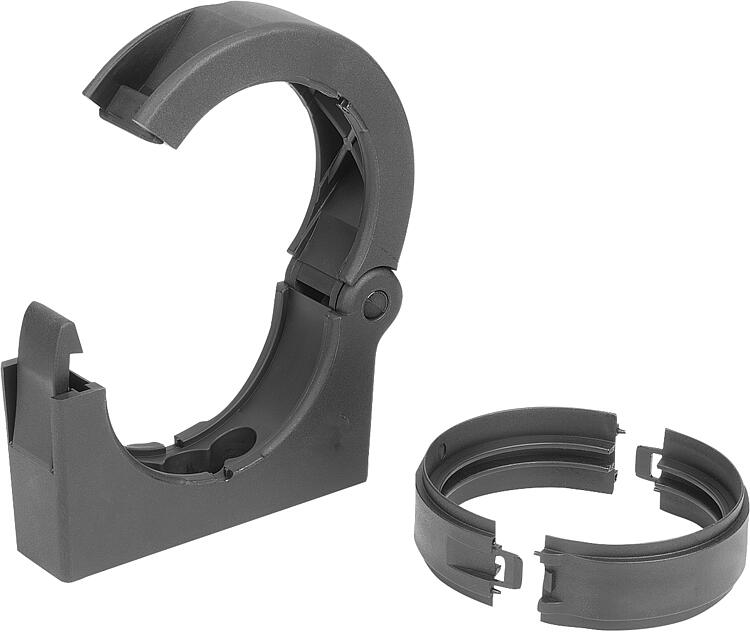

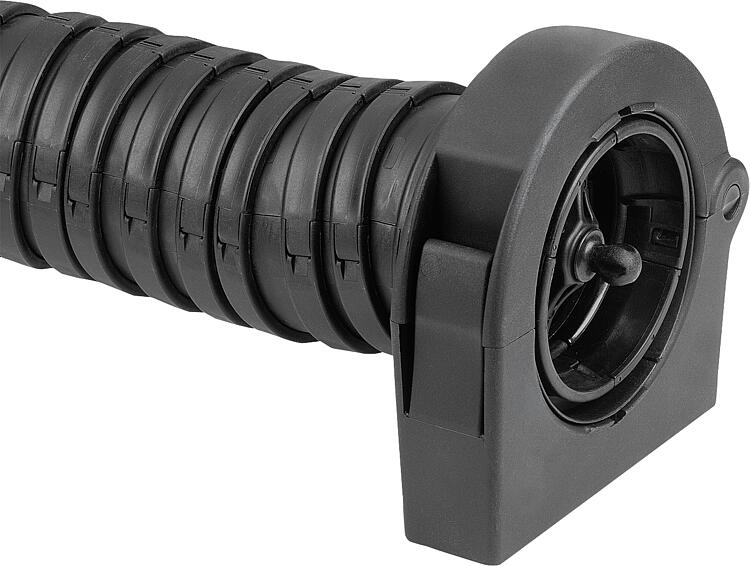

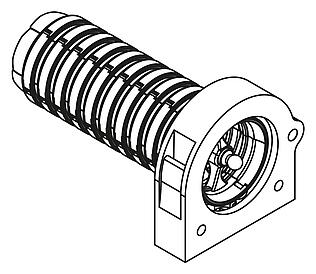

Connecting elements are used where energy chains/corrugated pipes are to be held.Temperature range:-45 °C to +105 °C (briefly up to +150 °C).Assembly:The connection elements can be opened and closed tool-free via a plastic latch. The inner jaws consist of two identical half shells that are fitted on the energy chain via hole-pin connections. The jaws fitted around the energy chain are inserted into the connection element and enable the energy chain to be held securely by means of the internal profiling.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-06 Connecting elements

Drawings (total overview)

Connecting elements

Connecting elements, Form A

More information

Drawings

Connecting elements, Form A

Item selection/filter

Order No.	Form	Form definition	Nominal size	CAD	Acc.	Price	Order
80855-06-07011	A	standard	70			48.31 €

Connecting elements, Form B

More information

Drawings

Connecting elements, Form B

Item selection/filter

Order No.	Form	Form definition	Nominal size	CAD	Acc.	Price	Order
80855-06-07021	B	front fastening	70			89.99 €
