Adapter

80855-20

Adapter

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains

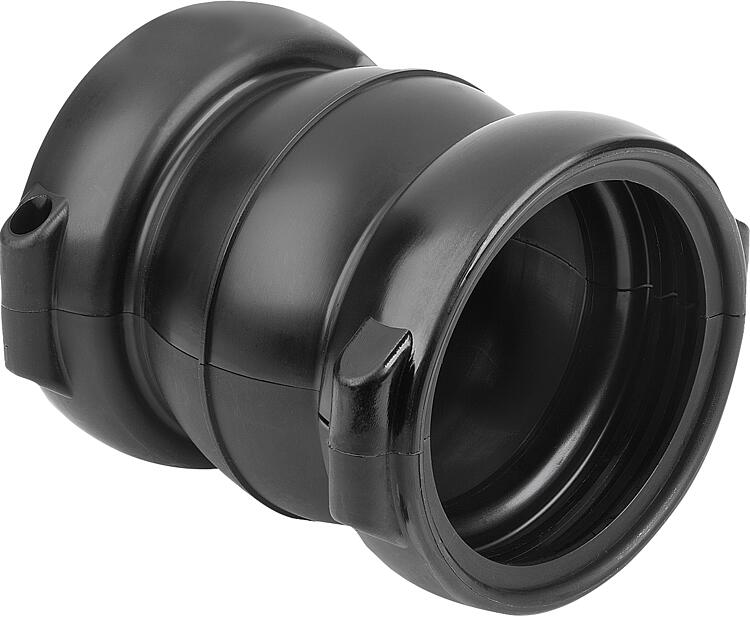

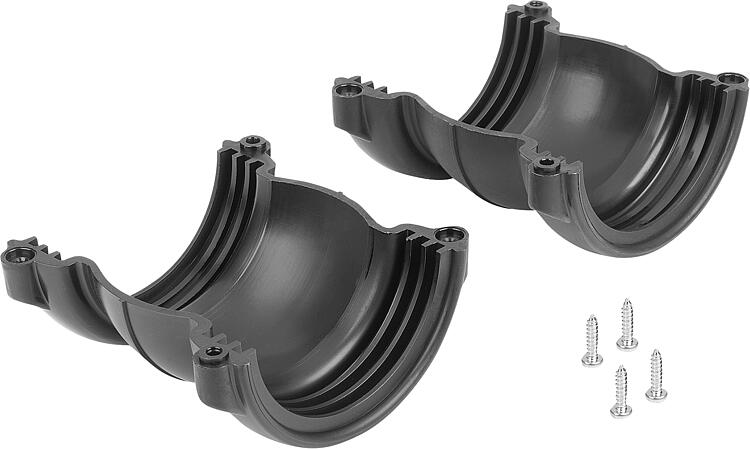

        Adapter

Item description/product images

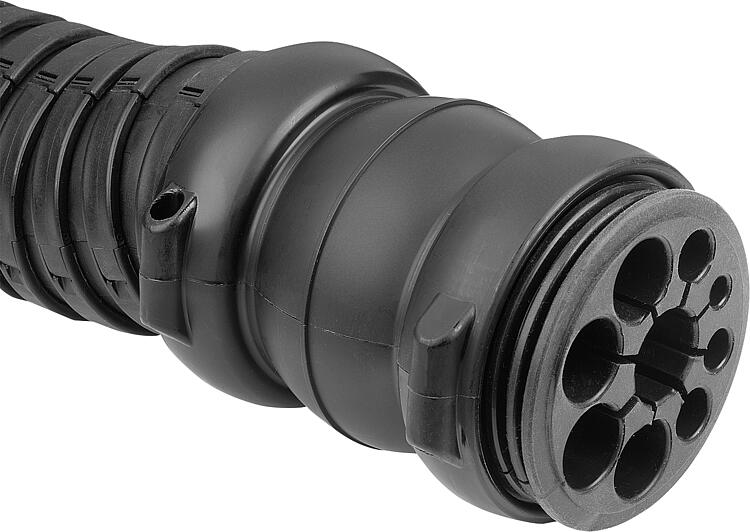

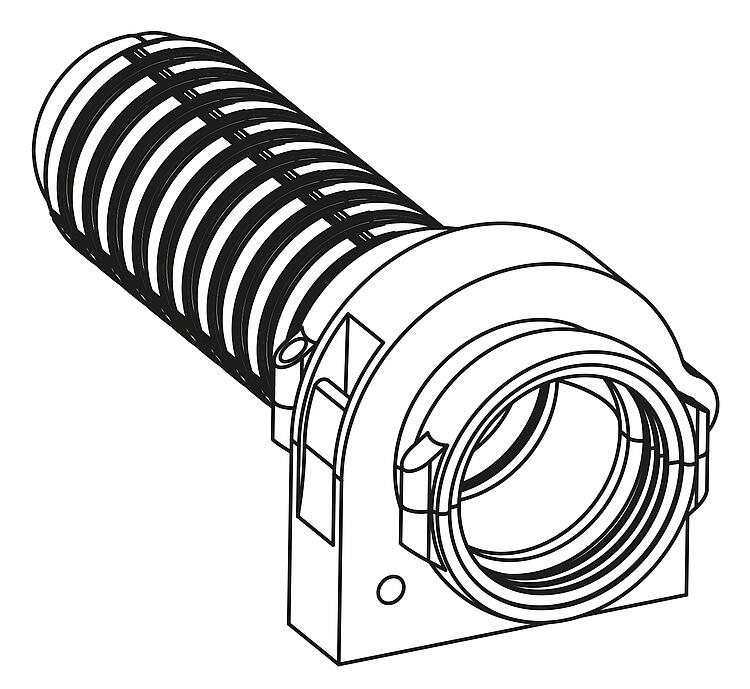

DescriptionMaterial:Polyamide PA6.Version:black.Note:Adapter for joining an energy chain to a corrugated pipe or an energy chain to a cable gland.

The energy chain/corrugated pipe can be rotated in the adapter. The cable gland is however, clamped.

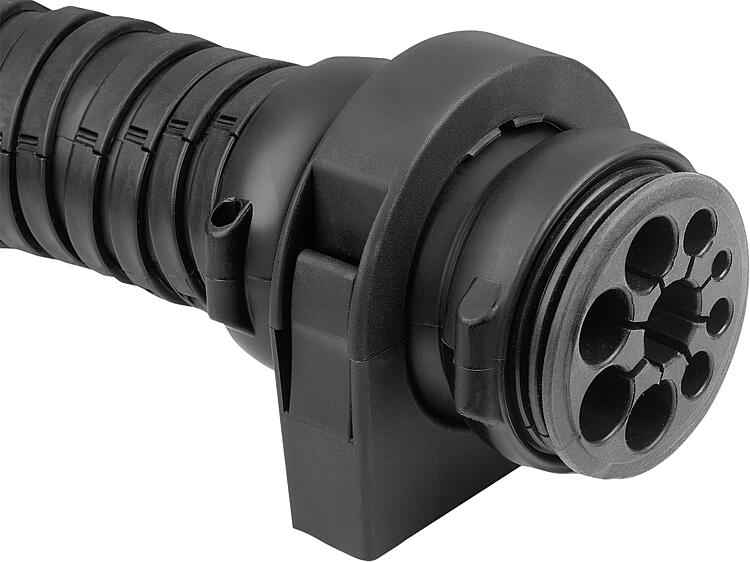

The bracket for adapter 80855-21 is used to secure the adapter.Temperature range:-45 °C to +105 °C (briefly up to +150 °C).Accessory:Brackets for adapter 80855-21.
Cable glands 80855-25.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-20 Adapter

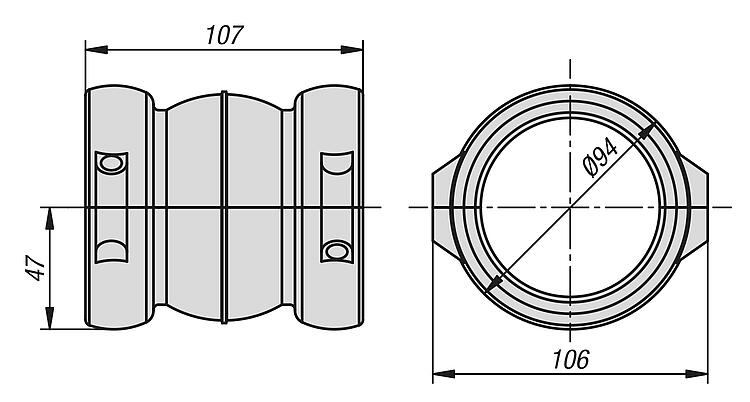

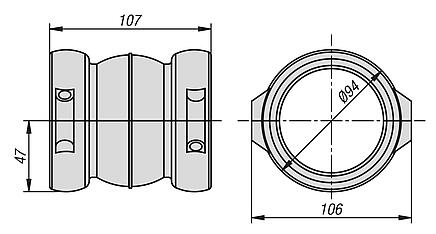

Drawings

Adapter

Item selection/filter

Order No.	Nominal size	CAD	Acc.	Price	Order
80855-20-0701	70			107.04 €
