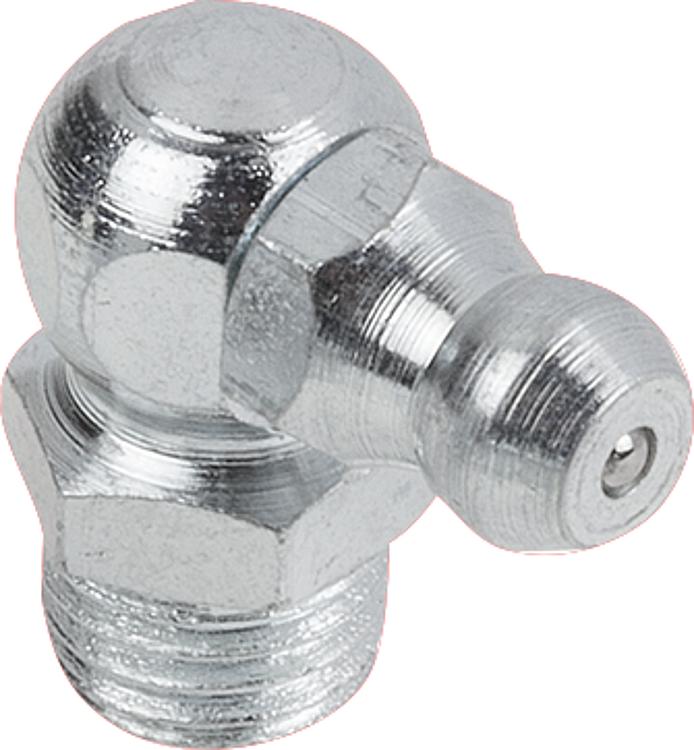

97940_CGrease nipples conical head DIN 71412, Form C, 90°, hexagonal |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or 1.4305 stainless steel. Version:Steel hardened, min. 550 HV 1, electro zinc-plated.
Stainless steel bright.Note:The conical head grease nipples have a tapered thread. They are suitable for grease points which must be lubricated often and reliably. Their versatility makes them the most widespread type of grease nipple. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Form-Type | Main
material | A | D | L
max. | L1 | SW | CAD | Acc. | Price | Order |
|---|
| 97940-1306100 | C | angled 90° with hexagon socket | steel | 13 | M6x1 | 18 | 5,5 | 9 |  | | 0.90 € | | | 97940-1308100 | C | angled 90° with hexagon socket | steel | 13 | M8x1 | 18 | 5,5 | 9 | | | 0.90 € | | | 97940-1308125 | C | angled 90° with hexagon socket | steel | 13 | M8x1,25 | 18 | 5,5 | 9 | | | 0.90 € | | | 97940-1310100 | C | angled 90° with hexagon socket | steel | 14 | M10x1 | 20 | 5,5 | 11 | | | 0.90 € | | | 97940-1310150 | C | angled 90° with hexagon socket | steel | 14 | M10x1,5 | 20 | 5,5 | 11 | | | 1.69 € | | | 97940-1318 | C | angled 90° with hexagon socket | steel | 14 | R1/8 | 20 | 5,5 | 11 | | | 0.90 € | | | 97940-1314 | C | angled 90° with hexagon socket | steel | 14 | R1/4 | 22 | 6,5 | 14 | | | 2.65 € | | | 97940-2306100 | C | angled 90° with hexagon socket | stainless steel | 13 | M6x1 | 18 | 5,5 | 9 | | | 7.85 € | | | 97940-2308100 | C | angled 90° with hexagon socket | stainless steel | 13 | M8x1 | 18 | 5,5 | 9 | | | 7.85 € | | | 97940-2308125 | C | angled 90° with hexagon socket | stainless steel | 13 | M8x1,25 | 18 | 5,5 | 9 | | | 7.85 € | | | 97940-2310100 | C | angled 90° with hexagon socket | stainless steel | 14 | M10x1 | 20 | 5,5 | 11 | | | 8.50 € | | | 97940-2310150 | C | angled 90° with hexagon socket | stainless steel | 14 | M10x1,5 | 20 | 5,5 | 11 | | | 8.50 € | | | 97940-2318 | C | angled 90° with hexagon socket | stainless steel | 14 | R1/8 | 20 | 5,5 | 11 | | | 8.50 € | | | 97940-2314 | C | angled 90° with hexagon socket | stainless steel | 14 | R1/4 | 22 | 6,5 | 14 | | | 11.40 € | |
