95046-02

Swivel castors with bolt hole stainless steel for sterile areas

go back

Products
- Product overview
  - Material handling and transport
    - Material handling and transport
      - Wheels and rollers
        Swivel castors with bolt hole stainless steel for sterile areas

Item description/product images

Back to group overview

DescriptionMaterial:

Housing stainless steel 1.4301.
Wheel rim, high-quality thermoplastic polyurethane.
Wheel tread, high-quality polyamide.

Version:Housing press formed.

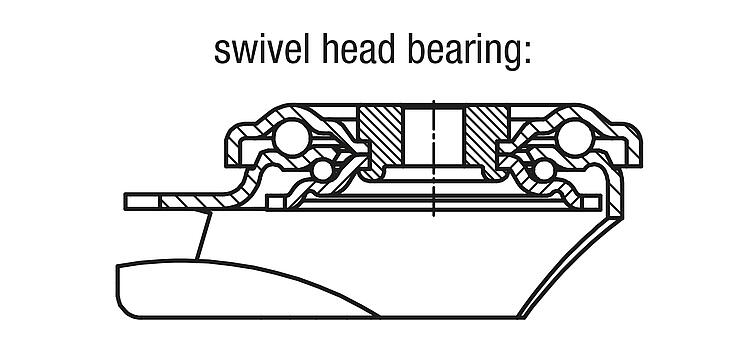

Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle bolted.Application:Loads can be transported with low noise and maximum ease in area's with high hygiene requirements.Temperature range:-20 °C - +70 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95046-02 Swivel castors with bolt hole stainless steel for sterile areas

337 kB

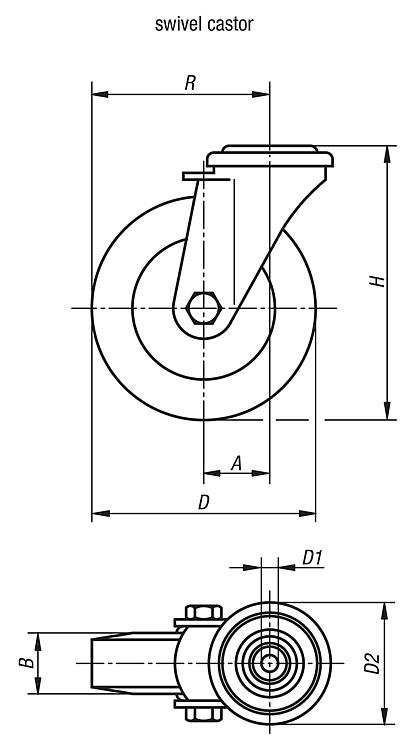

Drawings (total overview)

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	D	D1	D2	H	R	Permissible load kg	Price
95046-02-21100035	Swivel castor	without locking system	plain bearing	36	35	100	13	70	125	86	150	117.32 €
95046-02-21125040	Swivel castor	without locking system	plain bearing	40	40	125	13	70	150	102,5	150	139.60 €
95046-02-21160045	Swivel castor	without locking system	plain bearing	54	45	160	13	88	195	134	300	245.33 €
95046-02-21200050	Swivel castor	without locking system	plain bearing	54	50	200	13	88	235	154	300	297.07 €
95046-02-211000352	Swivel castor	with stop-fix locking system	plain bearing	36	35	100	13	70	125	86	150	144.66 €
95046-02-211250402	Swivel castor	with stop-fix locking system	plain bearing	40	40	125	13	70	150	102,5	150	167.56 €
95046-02-211600452	Swivel castor	with stop-fix locking system	plain bearing	54	45	160	13	88	195	134	300	297.00 €
95046-02-212000502	Swivel castor	with stop-fix locking system	plain bearing	54	50	200	13	88	235	154	300	349.19 €
