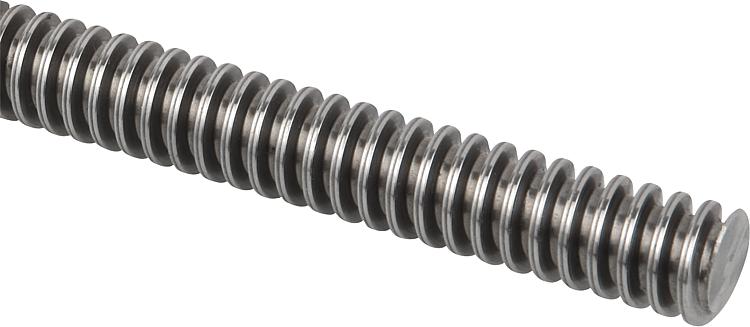

24000Trapezoidal thread spindles single-start, RH or LH thread |
go back | |
|
Item description/product images |
 |
DescriptionMaterial: Steel 1.0401 (C15) or stainless steel 1.4301 (whirled spindles stainless steel 1.4305). Version:Steel rolled, bright.Stainless steel up to Tr 40x7 rolled, above this whirled, bright.Note:Rolled, high precision trapezoidal thread spindles. ISO trapezoidal thread based on DIN 103. The trapezoidal thread spindle is a transmission thread with relatively high friction. Standard thread forms are self-locking. This has the advantage that they generally do not need to be secured in the rest position. Tolerance class 7e Pitch precision 0.3/300 mm Length sawed with excess, ends not deburred. DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|
Drawings |
 |
Item selection/filter |
| Order No. | Main material | Version 1 | DxP | D1 min. | D1 max. | D2 | L | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24000-081511X1000 | mild steel | RH-thread rolled | Tr 8x1,5 | 7,013 | 7,183 | 5,921 | 1000 |  | 0.00 € | ||
| 24000-100211X1000 | mild steel | RH-thread rolled | Tr 10x2 | 8,739 | 8,929 | 7,191 | 1000 | | 0.00 € | ||
| 24000-100311X1000 | mild steel | RH-thread rolled | Tr 10x3 | 8,191 | 8,415 | 5,84 | 1000 | | 0.00 € | ||
| 24000-120311X1000 | mild steel | RH-thread rolled | Tr 12x3 | 10,191 | 10,415 | 7,84 | 1000 | | 0.00 € | ||
| 24000-140311X1000 | mild steel | RH-thread rolled | Tr 14x3 | 12,191 | 12,415 | 10,135 | 1000 | | 0.00 € | ||
| 24000-140411X1000 | mild steel | RH-thread rolled | Tr 14x4 | 11,640 | 11,905 | 8,8 | 1000 | | 0.00 € | ||
| 24000-160411X1000 | mild steel | RH-thread rolled | Tr 16x4 | 13,640 | 13,905 | 10,8 | 1000 | | 0.00 € | ||
| 24000-180411X1000 | mild steel | RH-thread rolled | Tr 18x4 | 15,640 | 15,905 | 12,8 | 1000 | | 0.00 € | ||
| 24000-200411X1000 | mild steel | RH-thread rolled | Tr 20x4 | 17,640 | 17,905 | 14,8 | 1000 | | 0.00 € | ||
| 24000-240511X1000 | mild steel | RH-thread rolled | Tr 24x5 | 21,094 | 21,394 | 17,5 | 1000 | | 0.00 € | ||
| 24000-260511X1000 | mild steel | RH-thread rolled | Tr 26x5 | 23,094 | 23,394 | 19,5 | 1000 | | 0.00 € | ||
| 24000-280511X1000 | mild steel | RH-thread rolled | Tr 28x5 | 25,049 | 25,390 | 21,5 | 1000 | | 0.00 € | ||
| 24000-300611X1000 | mild steel | RH-thread rolled | Tr 30x6 | 26,547 | 26,882 | 21,9 | 1000 | | 0.00 € | ||
| 24000-320611X1000 | mild steel | RH-thread rolled | Tr 32x6 | 28,547 | 28,882 | 23,9 | 1000 | | 0.00 € | ||
| 24000-360611X1000 | mild steel | RH-thread rolled | Tr 36x6 | 32,547 | 32,882 | 27,9 | 1000 | | 0.00 € | ||
| 24000-400711X1000 | mild steel | RH-thread rolled | Tr 40x7 | 36,020 | 36,375 | 30,5 | 1000 | | 0.00 € | ||
| 24000-440711X1000 | mild steel | RH-thread rolled | Tr 44x7 | 40,020 | 40,375 | 34,5 | 1000 | | 0.00 € | ||
| 24000-500811X1000 | mild steel | RH-thread rolled | Tr 50x8 | 45,468 | 45,868 | 39,3 | 1000 | | 0.00 € | ||
| 24000-081512X1000 | stainless steel | RH-thread rolled | Tr 8x1,5 | 7,013 | 7,183 | 5,921 | 1000 | | 0.00 € | ||
| 24000-100212X1000 | stainless steel | RH-thread rolled | Tr 10x2 | 8,739 | 8,929 | 7,191 | 1000 | | 0.00 € | ||
| 24000-100312X1000 | stainless steel | RH-thread rolled | Tr 10x3 | 8,191 | 8,415 | 5,84 | 1000 | | 0.00 € | ||
| 24000-120312X1000 | stainless steel | RH-thread rolled | Tr 12x3 | 10,191 | 10,415 | 7,84 | 1000 | | 0.00 € | ||
| 24000-140312X1000 | stainless steel | RH-thread rolled | Tr 14x3 | 12,191 | 12,415 | 10,135 | 1000 | | 0.00 € | ||
| 24000-140412X1000 | stainless steel | RH-thread rolled | Tr 14x4 | 11,640 | 11,905 | 8,8 | 1000 | | 0.00 € | ||
| 24000-160412X1000 | stainless steel | RH-thread rolled | Tr 16x4 | 13,640 | 13,905 | 10,8 | 1000 | | 0.00 € | ||
| 24000-180412X1000 | stainless steel | RH-thread rolled | Tr 18x4 | 15,640 | 15,905 | 12,8 | 1000 | | 0.00 € | ||
| 24000-200412X1000 | stainless steel | RH-thread rolled | Tr 20x4 | 17,640 | 17,905 | 14,8 | 1000 | | 0.00 € | ||
| 24000-240512X1000 | stainless steel | RH-thread rolled | Tr 24x5 | 21,094 | 21,394 | 17,5 | 1000 | | 0.00 € | ||
| 24000-260512X1000 | stainless steel | RH-thread rolled | Tr 26x5 | 23,094 | 23,394 | 19,5 | 1000 | | 0.00 € | ||
| 24000-280512X1000 | stainless steel | RH-thread rolled | Tr 28x5 | 25,049 | 25,390 | 21,5 | 1000 | | 0.00 € | ||
| 24000-300612X1000 | stainless steel | RH-thread rolled | Tr 30x6 | 26,547 | 26,882 | 21,9 | 1000 | | 0.00 € | ||
| 24000-320612X1000 | stainless steel | RH-thread rolled | Tr 32x6 | 28,547 | 28,882 | 23,9 | 1000 | | 0.00 € | ||
| 24000-360612X1000 | stainless steel | RH-thread rolled | Tr 36x6 | 32,547 | 32,882 | 27,9 | 1000 | | 0.00 € | ||
| 24000-400712X1000 | stainless steel | RH-thread rolled | Tr 40x7 | 36,020 | 36,375 | 30,5 | 1000 | | 0.00 € | ||
| 24000-440712X1000 | stainless steel | RH-thread whirled | Tr 44x7 | 40,020 | 40,375 | 34,5 | 1000 | | 0.00 € | ||
| 24000-500812X1000 | stainless steel | RH-thread whirled | Tr 50x8 | 45,468 | 45,868 | 39,3 | 1000 | | 0.00 € | ||
| 24000-081521X1000 | mild steel | LH-thread rolled | Tr 8x1,5 | 7,013 | 7,183 | 5,921 | 1000 | | 0.00 € | ||
| 24000-100221X1000 | mild steel | LH-thread rolled | Tr 10x2 | 8,739 | 8,929 | 7,191 | 1000 | | 0.00 € | ||
| 24000-100321X1000 | mild steel | LH-thread rolled | Tr 10x3 | 8,191 | 8,415 | 5,84 | 1000 | | 0.00 € | ||
| 24000-120321X1000 | mild steel | LH-thread rolled | Tr 12x3 | 10,191 | 10,415 | 7,84 | 1000 | | 0.00 € | ||
| 24000-140321X1000 | mild steel | LH-thread rolled | Tr 14x3 | 12,191 | 12,415 | 10,135 | 1000 | | 0.00 € | ||
| 24000-140421X1000 | mild steel | LH-thread rolled | Tr 14x4 | 11,640 | 11,905 | 8,8 | 1000 | | 0.00 € | ||
| 24000-160421X1000 | mild steel | LH-thread rolled | Tr 16x4 | 13,640 | 13,905 | 10,8 | 1000 | | 0.00 € | ||
| 24000-180421X1000 | mild steel | LH-thread rolled | Tr 18x4 | 15,640 | 15,905 | 12,8 | 1000 | | 0.00 € | ||
| 24000-200421X1000 | mild steel | LH-thread rolled | Tr 20x4 | 17,640 | 17,905 | 14,8 | 1000 | | 0.00 € | ||
| 24000-240521X1000 | mild steel | LH-thread rolled | Tr 24x5 | 21,094 | 21,394 | 17,5 | 1000 | | 0.00 € | ||
| 24000-260521X1000 | mild steel | LH-thread rolled | Tr 26x5 | 23,094 | 23,394 | 19,5 | 1000 | | 0.00 € | ||
| 24000-280521X1000 | mild steel | LH-thread rolled | Tr 28x5 | 25,049 | 25,390 | 21,5 | 1000 | | 0.00 € | ||
| 24000-300621X1000 | mild steel | LH-thread rolled | Tr 30x6 | 26,547 | 26,882 | 21,9 | 1000 | | 0.00 € | ||
| 24000-320621X1000 | mild steel | LH-thread rolled | Tr 32x6 | 28,547 | 28,882 | 23,9 | 1000 | | 0.00 € | ||
| 24000-360621X1000 | mild steel | LH-thread rolled | Tr 36x6 | 32,547 | 32,882 | 27,9 | 1000 | | 0.00 € | ||
| 24000-400721X1000 | mild steel | LH-thread rolled | Tr 40x7 | 36,020 | 36,375 | 30,5 | 1000 | | 0.00 € | ||
| 24000-440721X1000 | mild steel | LH-thread rolled | Tr 44x7 | 40,020 | 40,375 | 34,5 | 1000 | | 0.00 € | ||
| 24000-500821X1000 | mild steel | LH-thread rolled | Tr 50x8 | 45,468 | 45,868 | 39,3 | 1000 | | 0.00 € | ||
| 24000-081522X1000 | stainless steel | LH-thread rolled | Tr 8x1,5 | 7,013 | 7,183 | 5,921 | 1000 | | 0.00 € | ||
| 24000-100222X1000 | stainless steel | LH-thread rolled | Tr 10x2 | 8,739 | 8,929 | 7,191 | 1000 | | 0.00 € | ||
| 24000-100322X1000 | stainless steel | LH-thread rolled | Tr 10x3 | 8,191 | 8,415 | 5,84 | 1000 | | 0.00 € | ||
| 24000-120322X1000 | stainless steel | LH-thread rolled | Tr 12x3 | 10,191 | 10,415 | 7,84 | 1000 | | 0.00 € | ||
| 24000-140322X1000 | stainless steel | LH-thread rolled | Tr 14x3 | 12,191 | 12,415 | 10,135 | 1000 | | 0.00 € | ||
| 24000-140422X1000 | stainless steel | LH-thread rolled | Tr 14x4 | 11,640 | 11,905 | 8,8 | 1000 | | 0.00 € | ||
| 24000-160422X1000 | stainless steel | LH-thread rolled | Tr 16x4 | 13,640 | 13,905 | 10,8 | 1000 | | 0.00 € | ||
| 24000-180422X1000 | stainless steel | LH-thread rolled | Tr 18x4 | 15,640 | 15,905 | 12,8 | 1000 | | 0.00 € | ||
| 24000-200422X1000 | stainless steel | LH-thread rolled | Tr 20x4 | 17,640 | 17,905 | 14,8 | 1000 | | 0.00 € | ||
| 24000-240522X1000 | stainless steel | LH-thread rolled | Tr 24x5 | 21,094 | 21,394 | 17,5 | 1000 | | 0.00 € | ||
| 24000-260522X1000 | stainless steel | LH-thread rolled | Tr 26x5 | 23,094 | 23,394 | 19,5 | 1000 | | 0.00 € | ||
| 24000-280522X1000 | stainless steel | LH-thread rolled | Tr 28x5 | 25,049 | 25,390 | 21,5 | 1000 | | 0.00 € | ||
| 24000-300622X1000 | stainless steel | LH-thread rolled | Tr 30x6 | 26,547 | 26,882 | 21,9 | 1000 | | 0.00 € | ||
| 24000-320622X1000 | stainless steel | LH-thread rolled | Tr 32x6 | 28,547 | 28,882 | 23,9 | 1000 | | 0.00 € | ||
| 24000-360622X1000 | stainless steel | LH-thread rolled | Tr 36x6 | 32,547 | 32,882 | 27,9 | 1000 | | 0.00 € | ||
| 24000-400722X1000 | stainless steel | LH-thread rolled | Tr 40x7 | 36,020 | 36,375 | 30,5 | 1000 | | 0.00 € | ||
| 24000-440722X1000 | stainless steel | LH-thread whirled | Tr 44x7 | 40,020 | 40,375 | 34,5 | 1000 | | 0.00 € | ||
| 24000-500822X1000 | stainless steel | LH-thread whirled | Tr 50x8 | 45,468 | 45,868 | 39,3 | 1000 | | 0.00 € |
