Latcheswith draw bail
 05536

Latches with draw bail

 go back

Item description/product images
DescriptionMaterial:

Steel or stainless steel 1.4301.

Version:Electro zinc-plated, thick-film passivated and top coat sealed.
Stainless steel, bright.Note:Latches with draw bail for securing and locking hatches, container lids, machine cladding etc. By exceeding the dead centre they resist vibration.
The locking force is applied by drawing on the bail.

The latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.

Order catch plates separately.On request:Lockable version with padlock bracket.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 05536 Latcheswith draw bail 174 kB

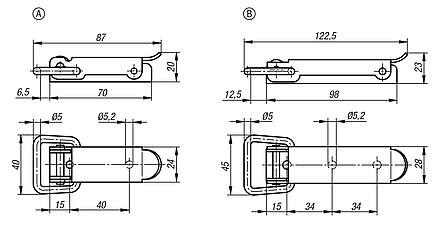

Drawings (total overview)

Latcheswith draw bail

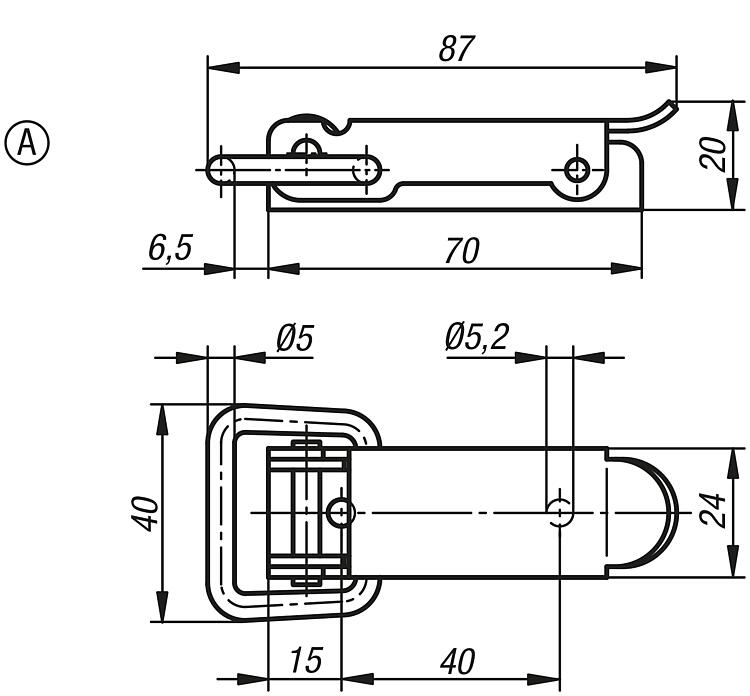

Latches with draw bail, Form A

 More information

Drawings
Latches with draw bail, Form A

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05536-1520871steelA 4.05 €
05536-1520872stainless steelA 7.85 €

Latches with draw bail, Form B

 More information

Drawings

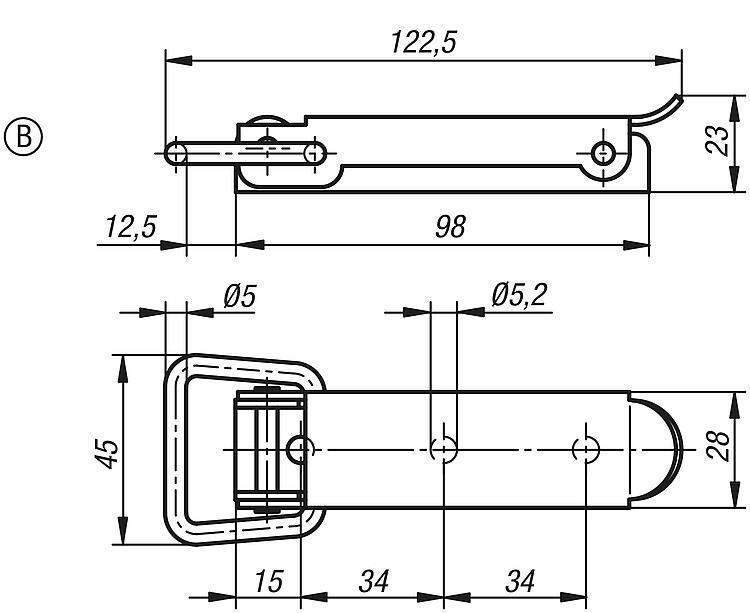

Latches with draw bail, Form B

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05536-2521221steelB 6.29 €
05536-2521222stainless steelB 9.74 €

Catch plates, Form A

 More information

Drawings
Catch plates, Form A

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05536-91520601steelA 0.59 €
05536-91520602stainless steelA 1.84 €

Catch plates, Form B

 More information

Drawings
Catch plates, Form B

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05536-92521061steelB 2.75 €
05536-92521062stainless steelB 6.97 €

Catch plates, Form C

 More information

Drawings
Catch plates, Form C

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05536-93520861steelC 0.84 €
05536-93520862stainless steelC 2.68 €

Catch plates, Form D

 More information

Drawings
Catch plates, Form D

Item selection/filter
Order No.Main
material		Form

CADAcc.PriceOrder
05536-94520951steelD 1.43 €
05536-94520952stainless steelD 3.69 €
