        Cam levers, steel with internal and external thread, plastic-metal thrust washer and steel stud - inch

Item description/product images

Show/filter all items

DescriptionMaterial:

Handle steel 1.0401.
Thrust washer plastic PA 66 GF 35-X fibreglass reinforced.
Hinge pin stainless steel 1.4305.
Stud and washer steel, grade 5.8.

Version:Handle, stud and washer trivalent blue-passivated.
Thrust washer black.
Hinge pin bright.Note:Plastics are subject to creeping under load (retardation).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04232 inch Cam lever, steel, with external or internal threads, inch

160 kB

Drawings (total overview)

Cam levers, steel with internal thread, plastic-metal thrust washer - inch

More information

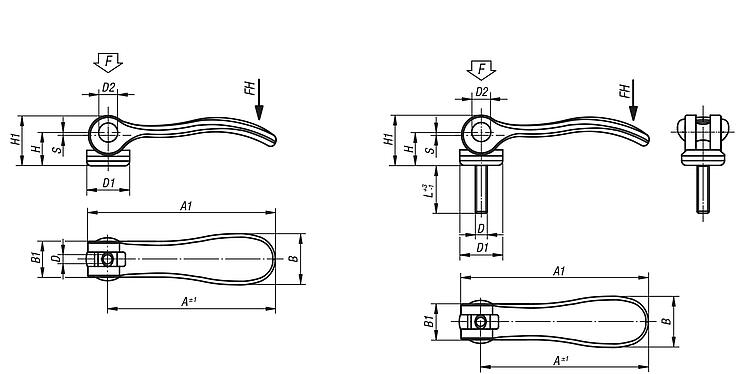

Drawings

Cam levers, steel with internal thread, plastic-metal thrust washer - inch

Item selection/filter

Order No.	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
04232-15022A1	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	11.81 €
04232-15022A2	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	11.81 €
04232-25022A3	5/16-18	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350	20.71 €

Cam levers, steel with external thread, plastic-metal thrust washer and steel stud - inch

More information

Drawings

Cam levers, steel with external thread, plastic-metal thrust washer and steel stud - inch

Item selection/filter

Order No.	Size	D	D1	D2	B	B1	H	H1	A	A1	L	Clamping force F (kN)	Hand force FH N	Travel S	Price
04232-15022A1X20	1	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	20	4	120	1,2	14.12 €
04232-15022A1X30	1	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	30	4	120	1,2	14.12 €
04232-15022A1X40	1	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	40	4	120	1,2	14.47 €
04232-15022A1X50	1	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	50	4	120	1,2	14.47 €
04232-15022A2X20	1	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	20	4	120	1,2	14.12 €
04232-15022A2X30	1	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	30	4	120	1,2	14.12 €
04232-15022A2X40	1	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	40	4	120	1,2	14.47 €
04232-15022A2X50	1	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	50	4	120	1,2	14.47 €
04232-25022A3X25	2	5/16-18	27,1	11	33,3	24	18	28,5	96	108	25	8	350	1,5	23.17 €
04232-25022A3X30	2	5/16-18	27,1	11	33,3	24	18	28,5	96	108	30	8	350	1,5	23.17 €
04232-25022A3X40	2	5/16-18	27,1	11	33,3	24	18	28,5	96	108	40	8	350	1,5	24.81 €
04232-25022A3X50	2	5/16-18	27,1	11	33,3	24	18	28,5	96	108	50	8	350	1,5	24.81 €
04232-25022A4X25	2	3/8-16	27,1	11	33,3	24	18	28,5	96	108	25	8	350	1,5	23.17 €
04232-25022A4X30	2	3/8-16	27,1	11	33,3	24	18	28,5	96	108	30	8	350	1,5	23.17 €
04232-25022A4X40	2	3/8-16	27,1	11	33,3	24	18	28,5	96	108	40	8	350	1,5	24.81 €
04232-25022A4X50	2	3/8-16	27,1	11	33,3	24	18	28,5	96	108	50	8	350	1,5	24.81 €
