Tubular handles, plastic, with electronic switch function and two push buttons

06980-11

Tubular handles, plastic, with electronic switch function and...

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles
        Tubular handles, plastic, with electronic switch function and two push buttons

Item description/product images

DescriptionMaterial:Grip legs PA6 thermoplastic.
Grip tube PVC thermoplastic.Version:Grip legs black.
Grip tube black.Note:Form A:
Push button 1 (changer)
Push button 2 (closer)
2 LED's
Plug 8 pin

Form B:
Emergency stop (2 opener)
Push button 1 (changer)
Push button 2 (closer)
2 LED's
Plug 12 pin
Technical data:See downloads, Technical Information
Connection type: M12x1 8 or 12 pin plug.

Rating: IP54 when connector is screwed on.
Assembly:From the front.Accessory:Plastic tubular handle with plastic grip legs 06980.
Connector bush M12x1, with screw lock 80150-10.
Drawing reference:

1) Emergency stop
2) Red LED
3) Green LED
4) Push button 1
5) Push button 2
6) Connector, M12x1

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06980-11 Tubular handles, plastic, with electronic switch function and two push buttons

NLM-TH-Rohrgriffe-elektrischer-Schaltfunktion-06980-11_EN

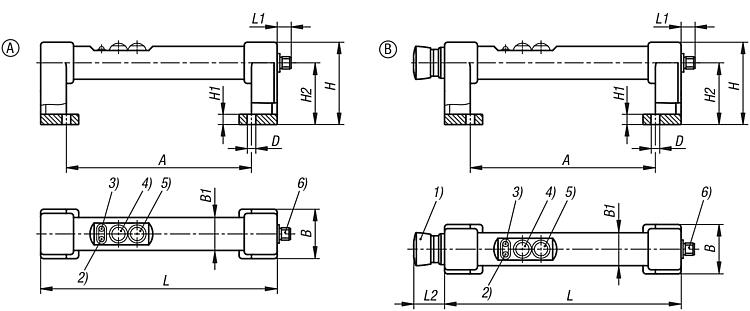

Drawings (total overview)

Tubular handles, plastic, with electronic switch function and two push buttons

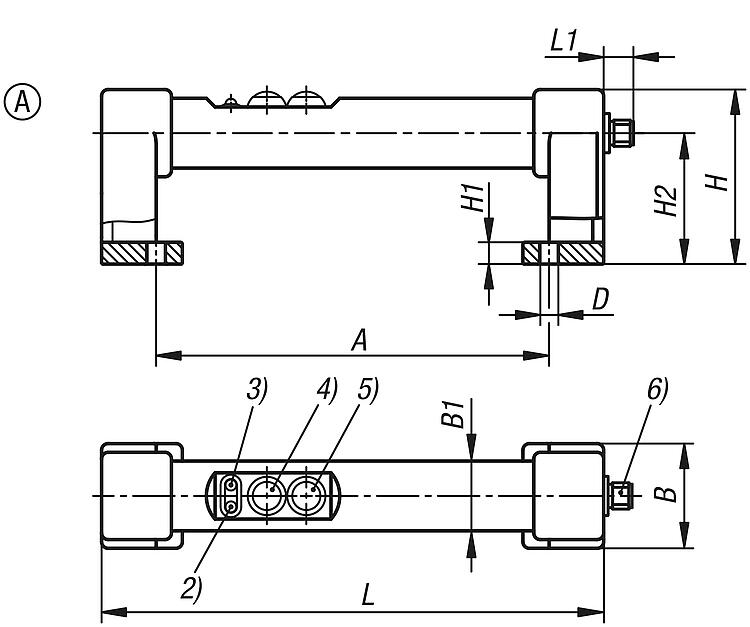

Tubular handles, plastic, with electronic switch function and two push buttons, without emergency stop

More information

Drawings

Tubular handles, plastic, with electronic switch function and two push buttons, without emergency stop

Item selection/filter

Order No.	Form	A	B	B1	D	H	H1	H2	L	L1	Load capacity N	CAD	Acc.	Price	Order
06980-11-180	A	180	48	32	8,5	80	10	60	230	13	1000			428.34 €

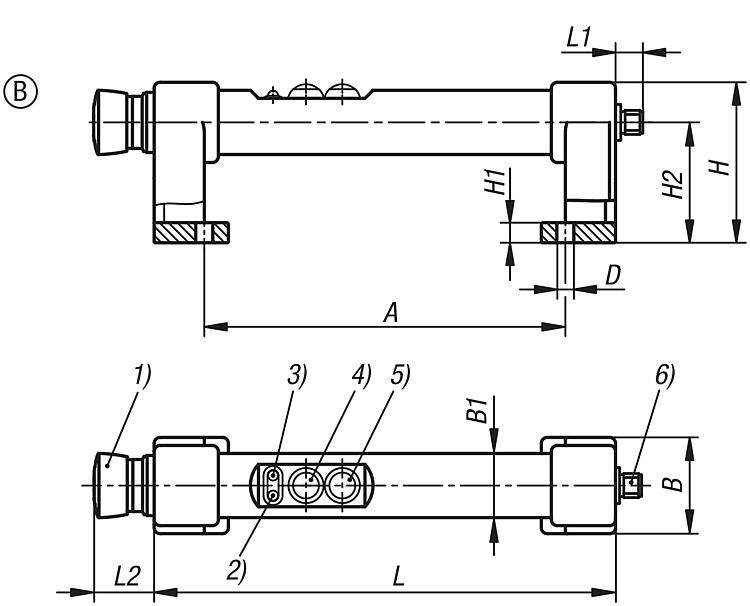

Tubular handles, plastic, with electronic switch function and two push buttons, with emergency stop

More information

Drawings

Tubular handles, plastic, with electronic switch function and two push buttons, with emergency stop

Item selection/filter

Order No.	Form	A	B	B1	D	H	H1	H2	L	L1	L2	Load capacity N	CAD	Acc.	Price	Order
06980-11-1180	B	180	48	32	8,5	80	10	60	230	13	30	1000			525.90 €
