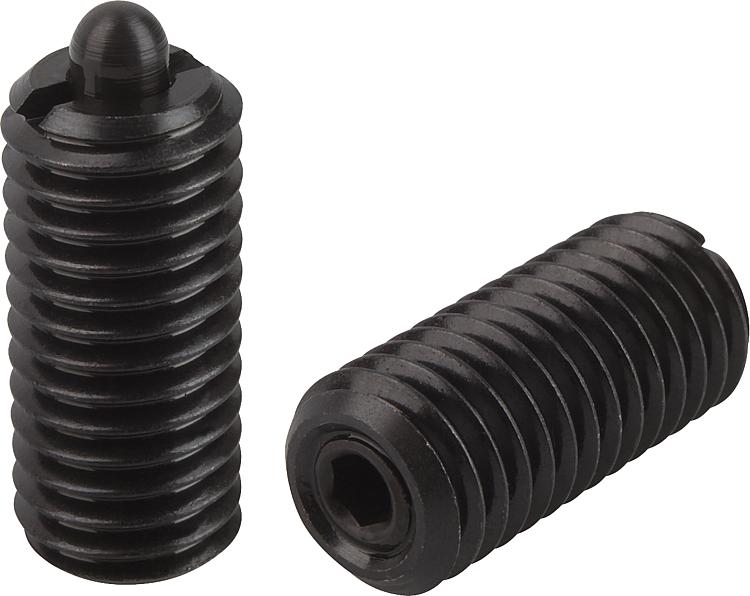

DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.
Thrust pin hardened.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| 03040-03 | M3 | 1 | 1,5 | 10 | 1 | 0,4 | 0,7 | 0,5 | 3 | 03040-903 |  |  | 2.61 € | | | 03040-04 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 5 | 16 | 03040-904 | | | 2.04 € | | | 03040-05 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 6 | 20 | 03040-905 | | | 1.96 € | | | 03040-06 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 7 | 20 | 03040-906 | | | 2.02 € | | | 03040-08 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 9 | 35 | 03040-908 | | | 2.39 € | | | 03040-10 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 9 | 35 | 03040-910 | | | 2.67 € | | | 03040-12 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 12 | 55 | 03040-912 | | | 3.43 € | | | 03040-16 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 45 | 100 | 03040-916 | | | 4.39 € | | | 03040-20 | M20 | 10 | 7 | 40 | 3 | 2,5 | 6 | 60 | 120 | - | | | 5.62 € | | | 03040-24 | M24 | 12 | 10 | 52 | 3 | 2,5 | 8 | 80 | 160 | - | | | 9.95 € | |
