03150Positioning pins free-milled, not ground |
go back |
|

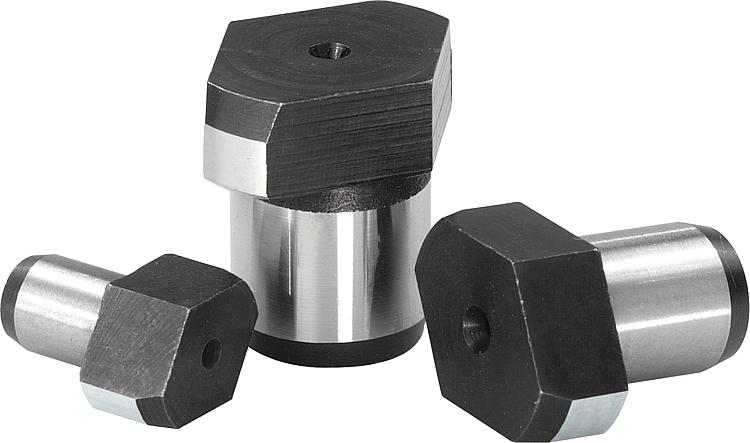

Item description/product images |
|
|
DescriptionMaterial:Tool steel.Version:Hardened.Note:Top face with centrebore. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

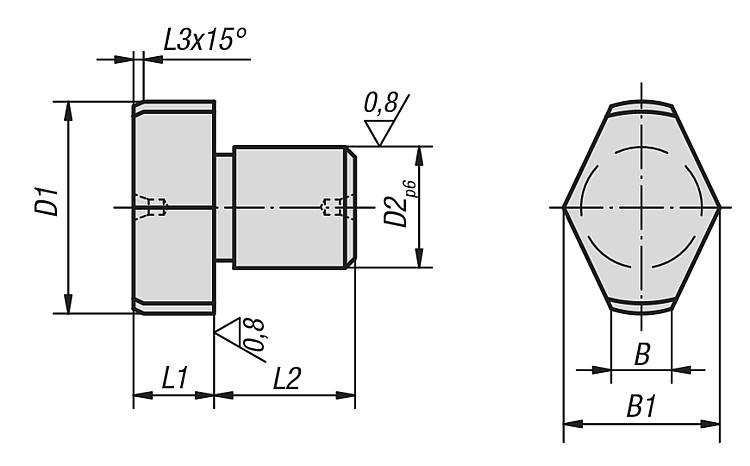

| Order No. | D1
| D2 | L1 | L2 | L3 | B | B1 | CAD | Acc. | Price | Order |
|---|
| 03150-05 | 8,5 | 5 | 8 | 8 | 2 | 2 | 6,6 |  | | 7.60 € | | | 03150-07 | 10,5 | 7 | 8 | 8 | 2 | 3 | 8,6 | | | 8.37 € | | | 03150-08 | 12,5 | 8 | 8 | 10 | 2 | 3 | 9,8 | | | 8.87 € | | | 03150-081 | 14,5 | 8 | 8 | 10 | 3 | 3,5 | 11,2 | | | 9.50 € | | | 03150-09 | 16,5 | 9 | 8 | 12 | 3 | 4 | 13,2 | | | 10.18 € | | | 03150-12 | 18,5 | 12 | 8 | 12 | 3 | 4,5 | 14,7 | | | 10.41 € | | | 03150-121 | 20,5 | 12 | 8 | 14 | 3 | 5 | 16,6 | | | 11.68 € | | | 03150-14 | 22,5 | 14 | 8 | 14 | 3 | 5,6 | 18 | | | 13.67 € | | | 03150-16 | 25,5 | 16 | 8 | 16 | 3 | 6 | 19,8 | | | 14.50 € | |
