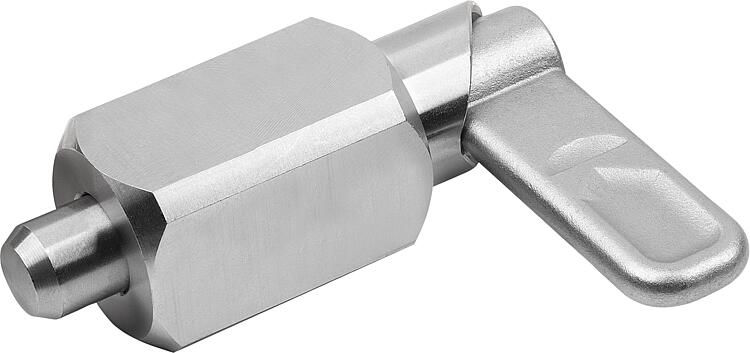

03099-19_GCam-action indexing plungers, stainless steel with square... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip 1.4308.
Sleeve 1.4301.
Indexing pin 1.4305.
Spring 1.4310.Version:Sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.Note:The square sleeve makes these plungers suitable for welding. To prevent overheating the spring, positioning with spot welding is recommended.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Square sleeve for welding.On request:Special versions.
Accessory:Positioning bushes 03099-50, 03099-60, 03099-61.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | L | L1 | B | B1 | H | Fx30° | SW | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03099-19-1100410 | G | 4 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1 | 12 | 8 | 14 |  | | 16.58 € | | | 03099-19-1100510 | G | 5 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,3 | 12 | 8 | 14 | | | 16.58 € | | | 03099-19-1100610 | G | 6 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,8 | 12 | 8 | 14 | | | 20.14 € | | | 03099-19-1100512 | G | 5 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,3 | 16 | 8 | 14 | | | 16.58 € | | | 03099-19-1100612 | G | 6 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,8 | 16 | 8 | 14 | | | 20.14 € | | | 03099-19-1100812 | G | 8 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 2,3 | 16 | 8 | 14 | | | 26.06 € | | | 03099-19-1100616 | G | 6 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 1,8 | 20 | 15 | 35 | | | 20.14 € | | | 03099-19-1100816 | G | 8 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,3 | 20 | 15 | 35 | | | 26.06 € | | | 03099-19-1101016 | G | 10 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,8 | 20 | 15 | 35 | | | 33.17 € | | | 03099-19-1100820 | G | 8 | 20 | 71 | 50 | 18 | 6 | 12 | 2,3 | 24 | 20 | 60 | | | 26.06 € | | | 03099-19-1101020 | G | 10 | 20 | 71 | 50 | 18 | 6 | 12 | 2,8 | 24 | 20 | 60 | | | 33.17 € | | | 03099-19-1101220 | G | 12 | 20 | 71 | 50 | 18 | 6 | 12 | 3 | 24 | 20 | 60 | | | 33.17 € | |
