03097Indexing plungers, steel or stainless steel, smooth version... |
go back |
|
|
DescriptionMaterial:Steel version:
Indexing pin hardened:
Sleeve 1.0403 weldable.
Indexing pin grade 5.8.
Stainless steel version:
Indexing pin hardened:
Sleeve 1.4301 weldable.
Indexing pin 1.4034.
Indexing pin not hardened:
Sleeve 1.4301 weldable.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic. Version:Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
Form M is recommended for applications where the indexing plungers should remain disengaged over an extended period and the pin prevented from springing back.
On request:Special versions. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

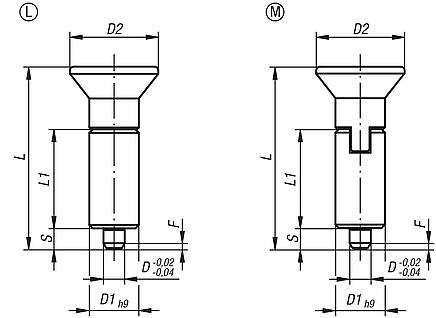

Drawings (total overview) |

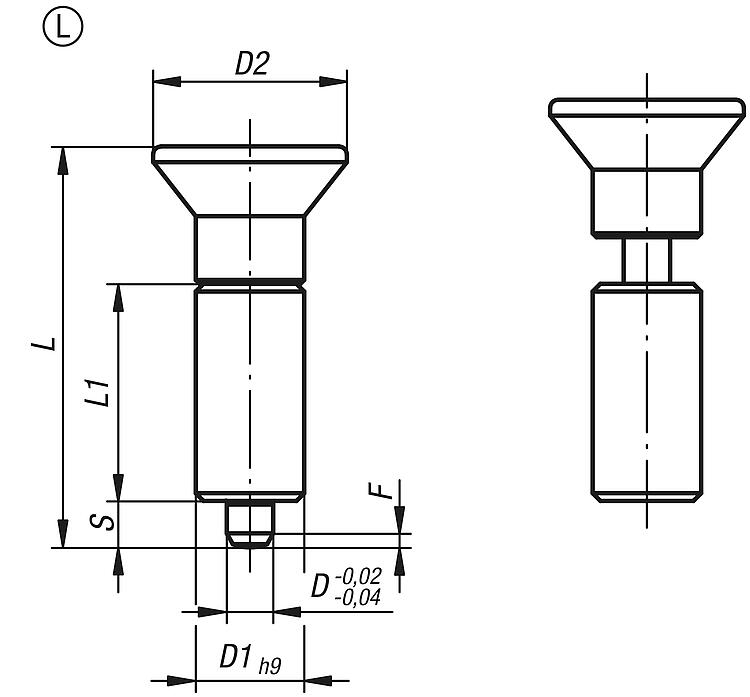

Indexing plungers, steel or stainless steel, smooth version without collar, with plastic mushroom grip, no locking slot |
More information |
Order No.
steel
hardened | Order No.
stainless steel
hardened | Order No.
stainless steel
not hardened | Form | D | D1 | D2 | L | L1 | Travel
S | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Filter |
|---|
| 03097-1004 | 03097-01004 | 03097-11004 | L | 4 | 10 | 18 | 38,5 | 21 | 4 | 1 | 6 | 12 |  | | 03097-1105 | 03097-01105 | 03097-11105 | L | 5 | 12 | 21 | 43,5 | 24 | 5 | 1,3 | 5 | 12 | | | 03097-1206 | 03097-01206 | 03097-11206 | L | 6 | 14 | 25 | 51,7 | 28 | 6 | 1,8 | 6 | 14 | | | 03097-1308 | 03097-01308 | 03097-11308 | L | 8 | 18 | 33 | 68 | 36 | 8 | 2,3 | 15 | 35 | | | 03097-1410 | 03097-01410 | 03097-11410 | L | 10 | 22 | 33 | 74 | 40 | 10 | 2,8 | 15 | 34 | |
|

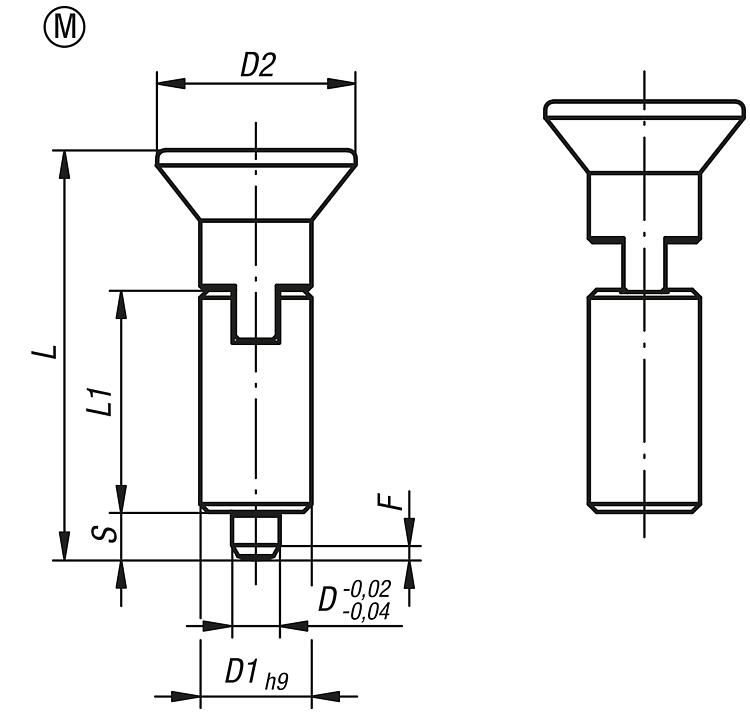

Indexing plungers, steel or stainless steel, smooth version without collar, with plastic mushroom grip and locking slot |
More information |
Order No.
steel
hardened | Order No.
stainless steel
hardened | Order No.
stainless steel
not hardened | Form | D | D1 | D2 | L | L1 | Travel
S | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Filter |
|---|
| 03097-2004 | 03097-02004 | 03097-12004 | M | 4 | 10 | 18 | 38,5 | 21 | 4 | 1 | 6 | 12 | | | 03097-2105 | 03097-02105 | 03097-12105 | M | 5 | 12 | 21 | 43,5 | 24 | 5 | 1,3 | 5 | 12 | | | 03097-2206 | 03097-02206 | 03097-12206 | M | 6 | 14 | 25 | 51,7 | 28 | 6 | 1,8 | 6 | 14 | | | 03097-2308 | 03097-02308 | 03097-12308 | M | 8 | 18 | 33 | 68 | 36 | 8 | 2,3 | 15 | 35 | | | 03097-2410 | 03097-02410 | 03097-12410 | M | 10 | 22 | 33 | 74 | 40 | 10 | 2,8 | 15 | 34 | |
|
