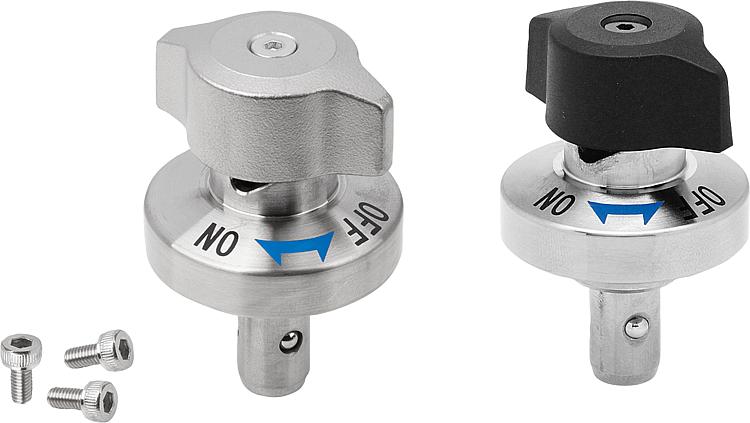

        Ball lock pins with plastic or stainless steel twist knob

Item description/product images

DescriptionMaterial:Housing stainless steel.
Pin steel or stainless steel.
Knob PA thermoplastic (polyamide) or stainless steel.
Ball and spring stainless steel.Version:Housing bright.
Steel pin tempered and nickel plated.
Stainless steel pin tempered.
Twist knob fibreglass reinforced, black or bright.
Ball tempered.Note:Mounting option 1 for plate thickness 6 or 12 mm.
Mounting option 2 for plate thickness up to 20 mm.
Including M2 or M3 fastening screws

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.

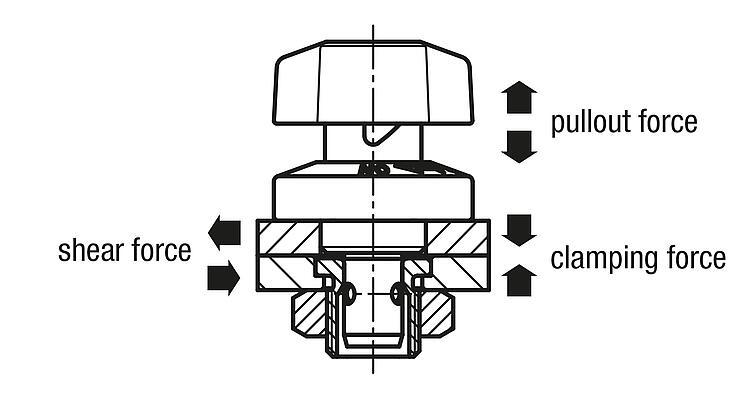

Attention:The specified pullout forces only apply in conjunction with locating bush 03192-02.Accessory:Locating bush 03192-02.Drawing reference:

1) Mounting option 1
2) Mounting option 2
3) Plate

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03192-01 Ball lock pins with plastic or stainless steel twist knob

275 kB

Technical information for ball lock pins

157 kB

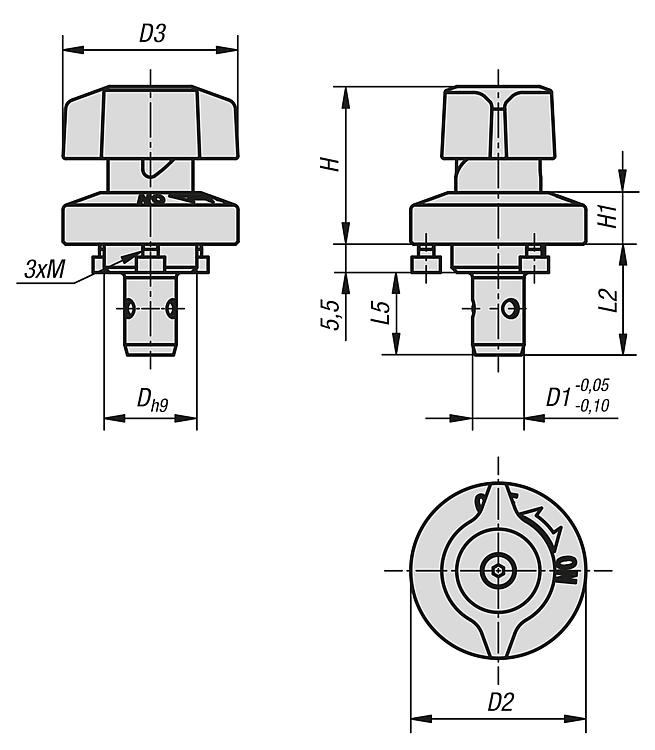

Drawings

Item selection/filter

Order No.	Component material	Version 2	D	D1	D2	D3	D4	H	H1	L2	L5	M	D5	D6	D7	D8	T	T1	Holding force N	Clamping force N	Shearing force kN	Pullout force F kN	Temperature resistance	Price
03192-01-620	polyamide	pins steel	14	6	25	25	21	24,5	6,5	19,5	14	M2x3	14	26	4,4	2,4	6	6-10	90	30	3	0,5	≤130 °C	37.38 €
03192-01-1022	polyamide	pins steel	18	10	34	34	28	31	10	21,5	16	M3x4	18	35	6,5	3,4	6	6-14	150	50	9	1,5	≤130 °C	39.24 €
03192-01-1028	polyamide	pins steel	18	10	34	34	28	31	10	27,5	22	M3x4	18	35	6,5	3,4	12	12-20	150	50	9	1,5	≤130 °C	39.24 €
03192-01-1620	stainless steel	pin stainless steel	14	6	25	25	21	24,5	6,5	19,5	14	M2x3	14	26	4,4	2,4	6	6-10	90	30	3	0,5	≤130 °C	60.62 €
03192-01-11022	stainless steel	pin stainless steel	18	10	34	34	28	31	10	21,5	16	M3x4	18	35	6,5	3,4	6	6-14	150	50	9	1,5	≤130 °C	63.41 €
03192-01-11028	stainless steel	pin stainless steel	18	10	34	34	28	31	10	27,5	22	M3x4	18	35	6,5	3,4	12	12-20	150	50	9	1,5	≤130 °C	63.41 €
