        Cable glands, stainless steel or plastic in Hygienic DESIGN

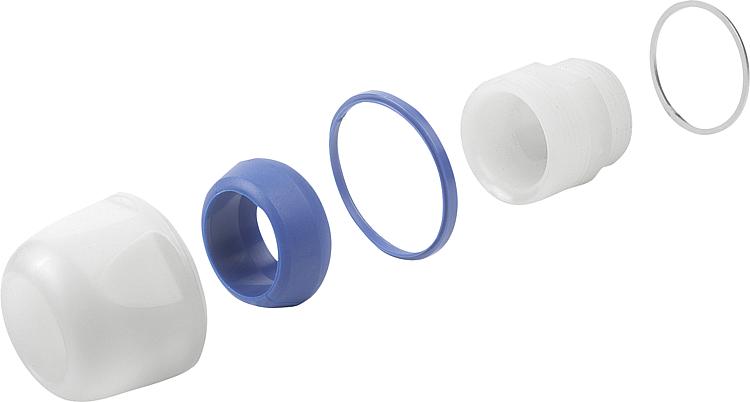

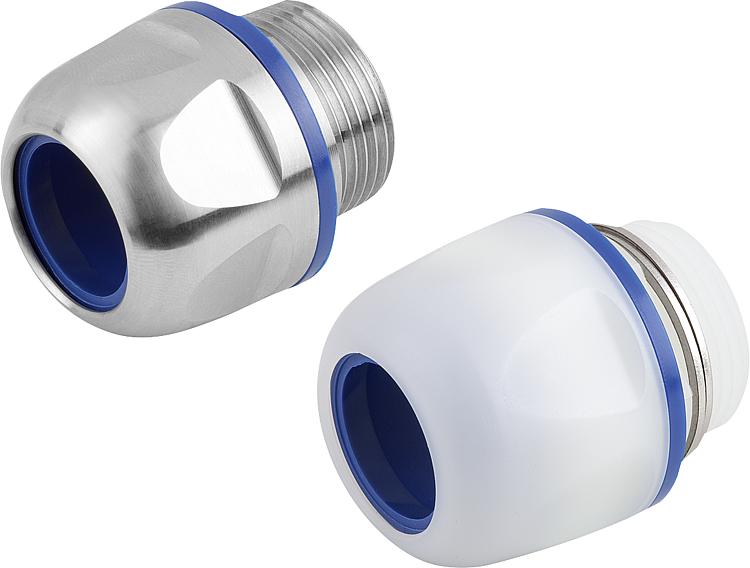

Item description/product images

DescriptionMaterial:

Stainless steel cable gland: Outer part 1.4404, inner part 1.4305.
Plastic cable gland: Polyamide.
Cable gland seal: TPU.

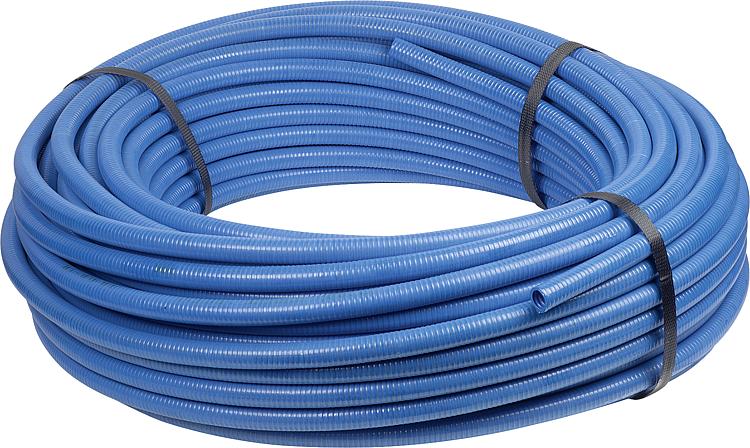

Hose: Polyamide.

Version:Cable gland: bright stainless steel, transparent plastic.
Hose: coatedNote:Washers supplied.
EN 60423 metric thread.
IP rating 66, 68 up to 15 bar, 69K.
Tension relief corresponds to EU standard 62444.
EHEDG certified.
Seal insert ADI - free
Temperature range:Stainless steel cable gland: -40 °C to +85 °C.
Plastic cable gland: -20 °C to +85 °C.
Hose: -20 °C to +95 °C.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 84100-13 Cable glands, stainless steel or plastic in Hygienic DESIGN

416 kB

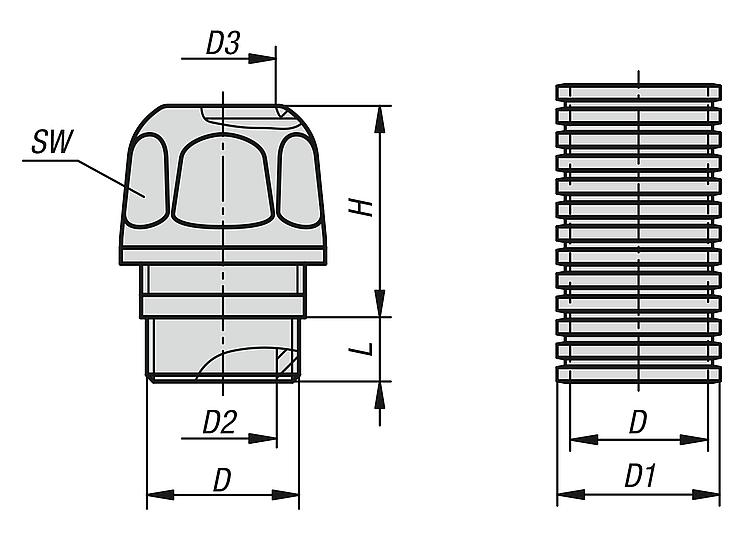

Drawings

Item selection/filter

Order No.	Item	Main material	D	D1	D2	D3	H	SW	L	Price
84100-13-12150	Cable gland	stainless steel	M12X1,5	-	8	7-5	19	17	7	42.22 €
84100-13-16150	Cable gland	stainless steel	M16x1,5	-	10	9-7	21	20	9	45.20 €
84100-13-20150	Cable gland	stainless steel	M20X1,5	-	12,5	12-9	27	24	9	49.75 €
84100-13-25150	Cable gland	stainless steel	M25x1,5	-	18,5	18-15	27	30	10	55.44 €
84100-13-32150	Cable gland	stainless steel	M32x1,5	-	25,3	23-20	27	36	11	62.26 €
84100-13-16151	Cable gland	plastic	M16x1,5	-	10	9-7	25	22	9	9.53 €
84100-13-20151	Cable gland	plastic	M20X1,5	-	12,5	12-9	29	26	9	10.45 €
84100-13-25151	Cable gland	plastic	M25x1,5	-	18,5	18-15	31	32	10	11.41 €
84100-13-32151	Cable gland	plastic	M32x1,5	-	25,3	23-20	32	38	11	12.58 €
80800-1250	Hose	polyamide	11,8	16	-	-	-	-	50M	837.21 €
80800-1750	Hose	polyamide	15,6	21,6	-	-	-	-	50M	894.98 €
