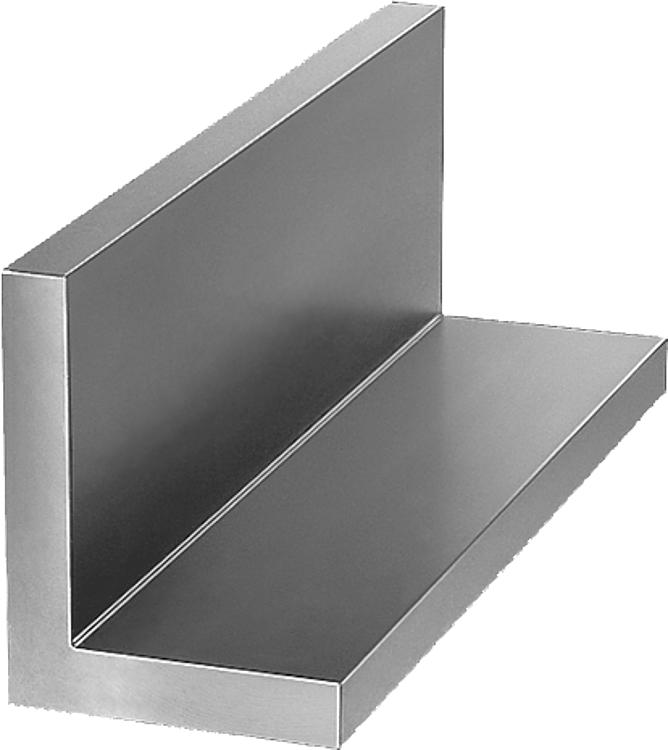

        L-profiles unequal grey cast iron or aluminium

Item description/product images

DescriptionMaterial:GJL 250 annealed or EN AW-7075.Drawing reference:

machined faces: ±0.25 mm
length tolerance:
≤200 mm: +3/+10
>200 mm ≤590 mm: +8/+15
≥600 mm: +20/+50

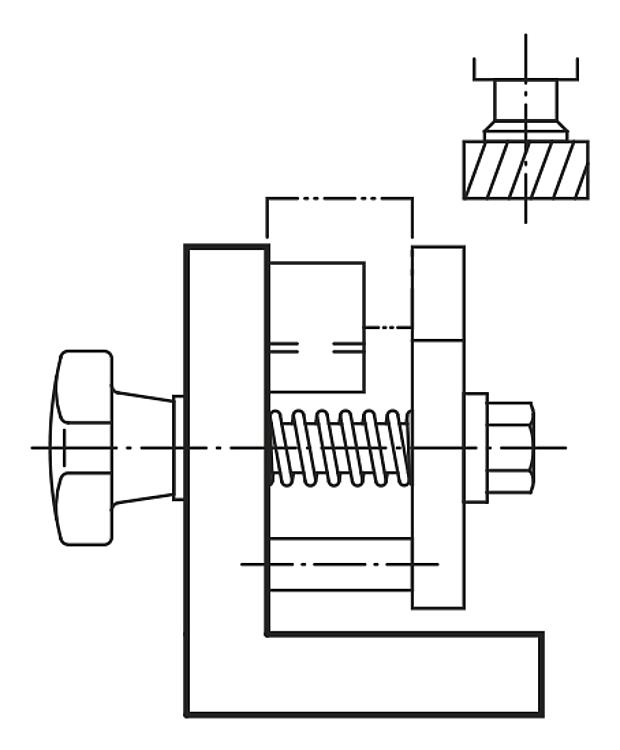

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01440 L-profiles unequal grey cast iron or aluminium

153 kB

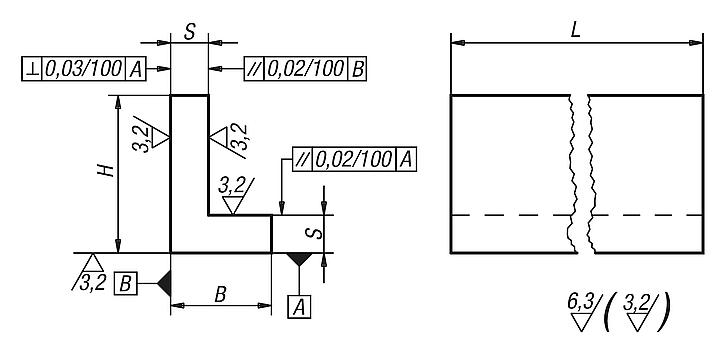

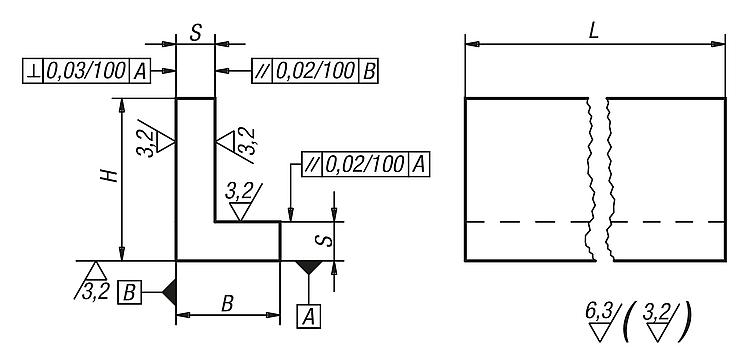

Drawings

Item selection/filter

Order No.	Main material	L = length	B	H	S
01440-01X150	grey cast iron	150	32	50	12
01440-01X300	grey cast iron	300	32	50	12
01440-02X150	grey cast iron	150	40	63	12
01440-02X300	grey cast iron	300	40	63	12
01440-03X200	grey cast iron	200	63	80	16
01440-03X300	grey cast iron	300	63	80	16
01440-03X600	grey cast iron	600	63	80	16
01440-03X800	grey cast iron	800	63	80	16
01440-04X200	grey cast iron	200	80	100	20
01440-04X300	grey cast iron	300	80	100	20
01440-04X600	grey cast iron	600	80	100	20
01440-04X1000	grey cast iron	1000	80	100	20
01440-05X200	grey cast iron	200	100	125	20
01440-05X300	grey cast iron	300	100	125	20
01440-05X600	grey cast iron	600	100	125	20
01440-05X1000	grey cast iron	1000	100	125	20
01440-06X200	grey cast iron	200	125	160	25
01440-06X300	grey cast iron	300	125	160	25
01440-06X600	grey cast iron	600	125	160	25
01440-07X200	grey cast iron	200	160	200	32
01440-07X300	grey cast iron	300	160	200	32
01440-07X600	grey cast iron	600	160	200	32
01440-08X300	grey cast iron	300	200	250	36
01440-08X600	grey cast iron	600	200	250	36
01440-09X300	grey cast iron	300	250	315	36
01440-09X600	grey cast iron	600	250	315	36
01440-201X150	aluminium	150	32	50	12
01440-201X300	aluminium	300	32	50	12
01440-202X150	aluminium	150	40	63	12
01440-202X300	aluminium	300	40	63	12
01440-203X200	aluminium	200	63	80	16
01440-203X300	aluminium	300	63	80	16
01440-203X600	aluminium	600	63	80	16
01440-203X800	aluminium	800	63	80	16
01440-204X200	aluminium	200	80	100	20
01440-204X300	aluminium	300	80	100	20
01440-204X600	aluminium	600	80	100	20
01440-204X1000	aluminium	1000	80	100	20
01440-205X200	aluminium	200	100	125	20
01440-205X300	aluminium	300	100	125	20
01440-205X600	aluminium	600	100	125	20
01440-206X200	aluminium	200	125	160	25
01440-205X1000	aluminium	1000	100	125	20
01440-206X300	aluminium	300	125	160	25
01440-206X600	aluminium	600	125	160	25
01440-207X200	aluminium	200	160	200	32
01440-207X300	aluminium	300	160	200	32
01440-207X600	aluminium	600	160	200	32
