Rotary flanges

80855-10

Rotary flanges

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains
        Rotary flanges

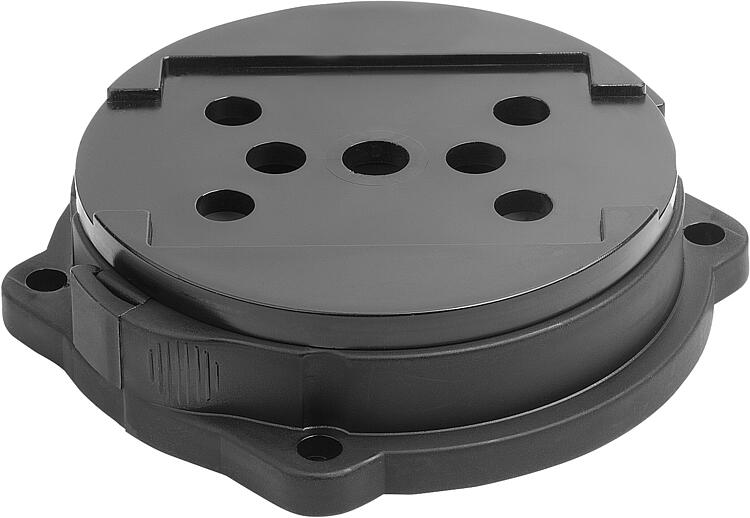

Item description/product images

DescriptionMaterial:Polyamide PA6.Version:black.Note:Rotary flange for use with any connecting element, a low-friction guide or swivel arms. The rotary flange offers greater freedom of movement when guiding energy chains. The rotary flange can be rotated through 360°.

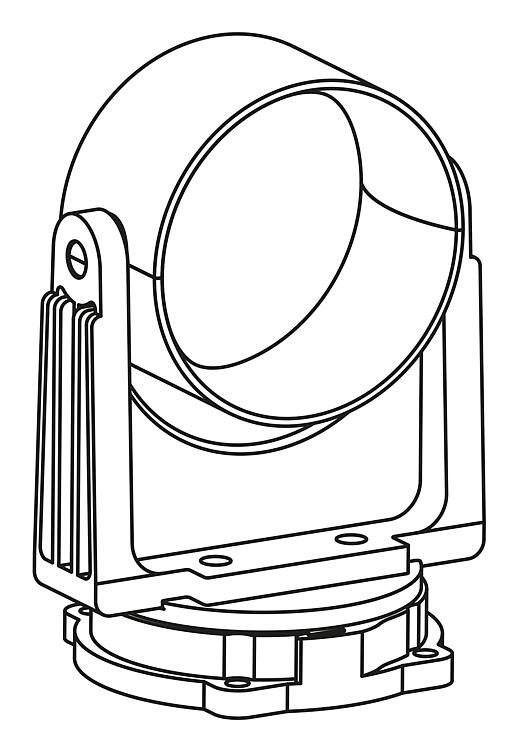

With the optionally available swivel arms, the rotary flange obtains a further degree of movement freedom.Assembly:The rotary flange is attached to robots/machines at the appropriate point using four screws.

The hole pattern on the rotary plate is matched to those on the connecting elements, low-friction guides and swivel arms.Accessory:Connecting elements with tension relief 80855-05.
Connecting elements 80855-06.
Low-friction guides 80855-08.
Swivel arms 80855-11.
Brackets for adapters 80855-21.
Brackets with spring stop 80855-40.
Swivel arms with spring stop 80855-41.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-10 Rotary flanges

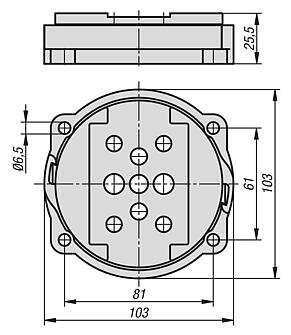

Drawings

Rotary flanges

Item selection/filter

Order No.	Nominal size	CAD	Acc.	Price	Order
80855-10-0701	70			0.00 €
